Запчасти Case IH 1688 (9C-06) - DISCHARGE BEATER BOTTOM, RICE COMBINE, SPRING LOADED (15) - BEATER & CLEANING FANS

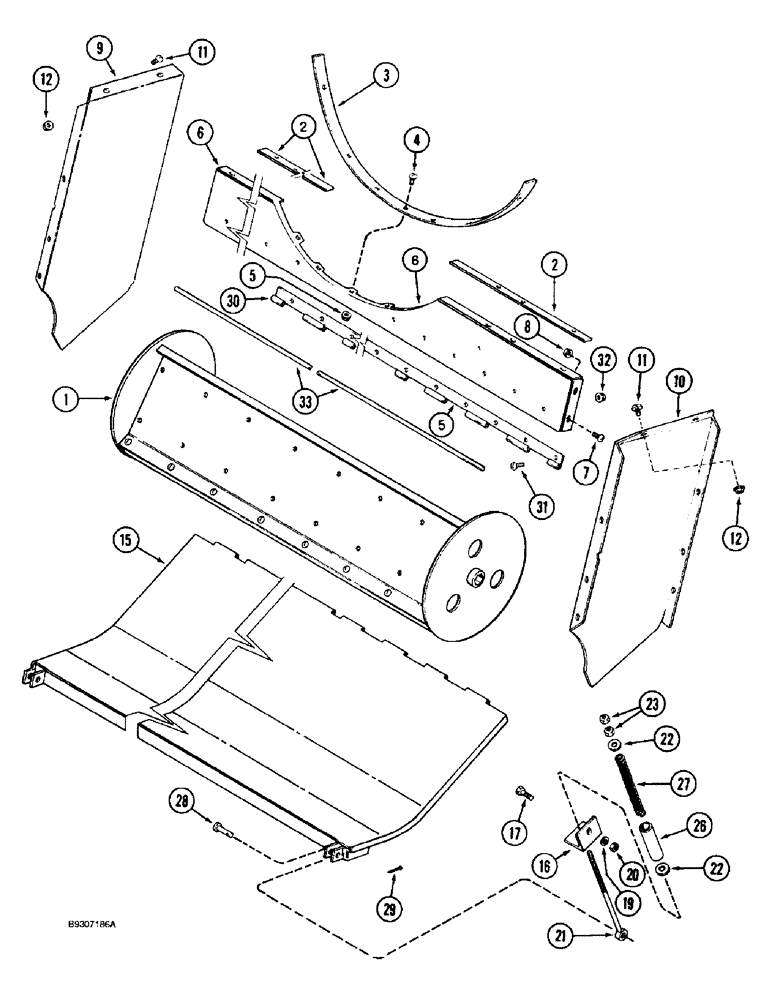

Схема запчастей Case IH 1688 - (9C-06) - DISCHARGE BEATER BOTTOM, RICE COMBINE, SPRING LOADED (15) - BEATER & CLEANING FANS
10
32
6
12
12
30
3
16
15
20
17
22
11
2
4
21
23
19
6
2
33
9
27
26
28
31
29
11
5
5
1
8
22
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BEATER ASSY discharge, parts list Figure 9C-2

1шт.

2

182895C1

FILLER

bulkhead filler

2шт.

3

182950C1

SUPPORT

housing filler, rear

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

7шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

182931C1

SUPPORT

lower cage, rear

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

9

182948C2

DEFLECTOR

DEFLECTOR discharge, left hand

1шт.

10

182949C2

DEFLECTOR

DEFLECTOR discharge, right hand

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

14шт.

12

231-5146

FLANGE NUT,3/8"-16

14шт.

15

182926C2

BOTTOM

PAN beater

1шт.

16

182896C2

SUPPORT

spring

2шт.

17

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

19

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

2шт.

20

232-4116

NUT,3/8"-16, GC

2шт.

21

182892C2

BOLT,1/2" - 13 x 330mm

EYE beater bottom

2шт.

22

495-81162

WASHER,17/32" x 1 1/2" x .179"

flat, 17/32 x 1-1/2 x 11/64 inch

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

4шт.

26

182981C1

SPACER

SLEEVE spring

2шт.

27

391745R1

SPRING

beater bottom

2шт.

28

439-1828

HEADED PIN,1/2" x 1 3/4"

headed, 1/2 x 1-3/4 inch, grade 2

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

2шт.

30

182893C1

HINGE

bottom

2шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

14шт.

32

231-5146

FLANGE NUT,3/8"-16

14шт.

33

182980C1

ROD,11.11mm OD x 1556mm L

bottom hinge

1шт.

Выбрано товаров: 28
