Запчасти Case IH 1688 (9C-04) - DISCHARGE BEATER BOTTOM, CORN AND GRAIN, FIXED (15) - BEATER & CLEANING FANS

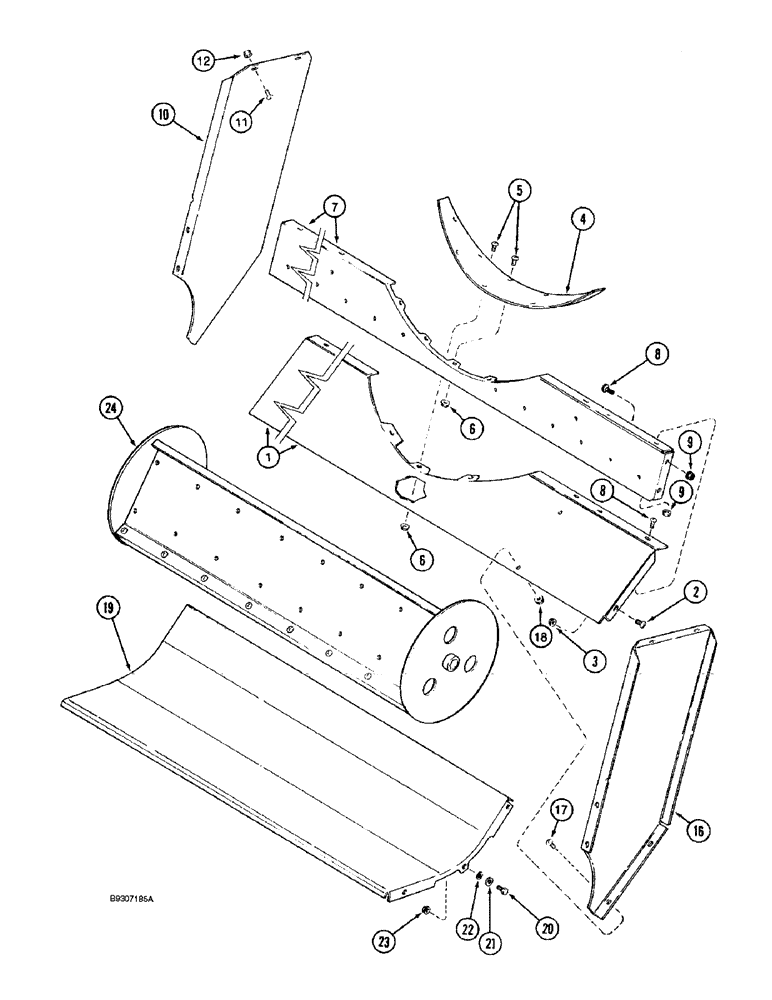

Схема запчастей Case IH 1688 - (9C-04) - DISCHARGE BEATER BOTTOM, CORN AND GRAIN, FIXED (15) - BEATER & CLEANING FANS
17
10
8
12
23
6
3
1
8
6
7
2
21
19
18
22
4
16
11
5
9
24
9
20

Артикул

Название

Примечание

Количество

1

191000C1

SUPPORT

beater discharge

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

193916C1

SUPPORT

beater bottom, front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

7шт.

6

231-5146

FLANGE NUT,3/8"-16

7шт.

7

182931C1

SUPPORT

lower cage, rear

1шт.

8

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

10шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

10

193454C1

DEFLECTOR

Discharge, LH

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

5шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

1шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

16

193455C1

DEFLECTOR

Discharge, RH

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

5шт.

17

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

1шт.

18

231-5146

FLANGE NUT,3/8"-16

6шт.

19

195454C2

SUPPORT

PAN rear beater

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

2шт.

24

REF

INSTRUCTION

BEATER ASSY discharge, parts list Figure 9C-2

1шт.
