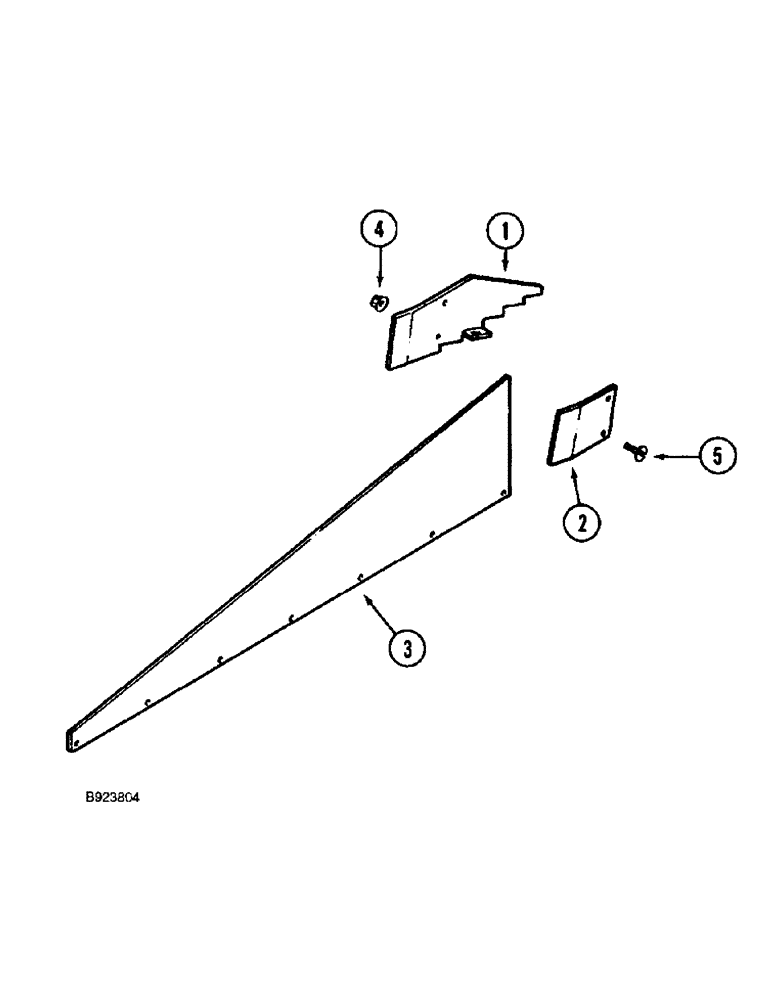

Запчасти Case IH 1688 (9B-50) - GRAIN PAN SIDE HILL DIVIDERS (14) - ROTOR, CONCANVES & SIEVE

180771C91

KIT

KIT grain pan dividers, Includes: Ref. 1 - 5

5шт.

1

185115C1

DIVIDER

chaffer pan, front

1шт.

2

185116C1

RETAINER

chaffer divider

1шт.

3

185114C1

DIVIDER

chaffer sieve

1шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

11шт.

5

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

11шт.
