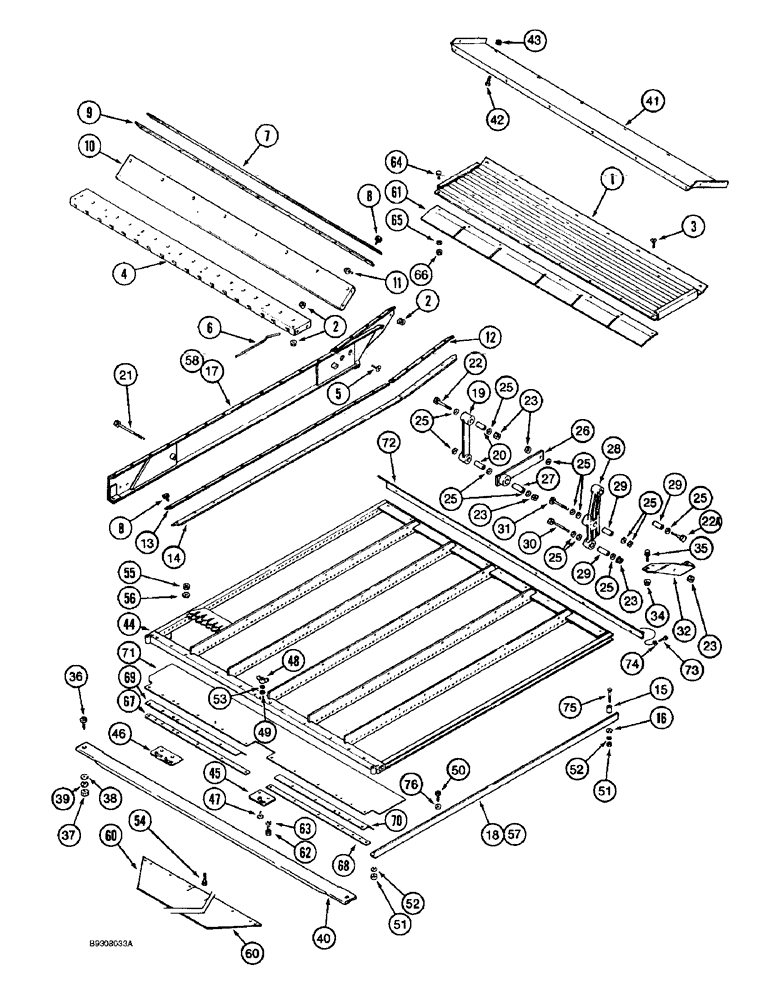

Запчасти Case IH 1688 (9B-44) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192057C1

GRAIN PAN

grain

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

20шт.

4

1312969C1

SUPPORT

chaffer pan

1шт.

5

360-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT hex flange, 5/16 NC x 3/4 inch, grade 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

auger bed, short

27шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

auger bed, long

27шт.

7

192050C1

BAR

front chaffer frame seal

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self-tapping, hex washer head, 1/4 NC x 1/2 inch

1шт.

9

192049C1

SEALING STRIP

chaffer frame front, sealing

1шт.

10

192045C1

SUPPORT

chaffer frame

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

12

192052C2

BAR

chaffer frame seal, short

2шт.

13

1325332C1

BAR

chaffer frame seal, long

2шт.

14

1325331C1

SEALING STRIP

chaffer frame

2шт.

15

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1 inch

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

flat, 13/32 x 1 x 11/64 inch

2шт.

17

1322452C2

RAIL

chaffer, left hand

1шт.

18

1325333C3

SUPPORT

chaffer support, left hand

1шт.

19

1957455C1

ARM

rear hanger, Includes: Ref. 20

2шт.

20

1330324C1

BUSHING

front hanger

2шт.

21

426-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

BOLT hex, 5/8 NC x 7 inch, grade 8

2шт.

22

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

22a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

23

232-41110

NUT,5/8"-11, GC

10шт.

24

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC, not shown

3шт.

25

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 inch

28шт.

25

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

flat, 29/32 x 1-1/2 x 7/64 inch

2шт.

26

1330357C1

ARM

shoe, rear, Includes: Ref. 27

2шт.

27

1330324C1

BUSHING

shoe arm

1шт.

28

1957460C2

LEVER

ASSY shoe, Includes: Ref. 29

2шт.

29

1330323C2

BUSHING

5/8 x 1-1/2 x 2-57/64 inch

3шт.

30

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

BOLT hex, 5/8 NC x 6 inch, grade 8

2шт.

31

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT carriage, 5/8 NC x 5 inch

2шт.

32

1968827C1

SUPPORT

shoe lever, left hand

1шт.

33

1968828C1

SUPPORT

shoe lever, right hand, not shown

1шт.

34

231-5146

FLANGE NUT,3/8"-16

4шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

36

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

495-81112

WASHER,.344" x 3/4" x .120"

flat, 11/32 x 3/4 x 7/64 inch

1шт.

39

492-11031

LOCK WASHER,5/16"

1шт.

40

1322458C3

SUPPORT

CHANNEL rear

1шт.

41

192065C1

SUPPORT

chaffer front seal

1шт.

42

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

14шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

44

1322673C4

GRAIN SIEVE

chaffer, 1-5/8 inch closz slat

1шт.

44

1322659C4

GRAIN SIEVE

chaffer, corn, 1-5/8 inch

1шт.

44

1347372C5

GRAIN SIEVE

Petersen chaffer

1шт.

44

1322467C4

GRAIN SIEVE

chaffer, adjustable extended, 1-1/8 inch

1шт.

45

120668A1

LARGE PLATE

PLATE, LARGE chaffer lever, upper

1шт.

46

120667A1

PLATE

chaffer lever, lower

1шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT carriage, 1/4 NC x 1/2 inch, grade 2

3шт.

48

126177

WING NUT

1/4 inch NC

3шт.

49

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

3шт.

50

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

4шт.

52

392-21038

LOCK WASHER,3/8"

3/8"

4шт.

53

492-11025

LOCK WASHER,1/4"

3шт.

54

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

14шт.

55

232-4115

LOCK NUT,5/16"-18, GC

14шт.

56

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

flat, 11/32 x 1-1/4 x 1/16 inch

14шт.

57

1325334C2

ANGLE

chaffer support, right hand

1шт.

58

1322453C2

RAIL

chaffer, right hand

1шт.

60

1302785C2

EXTENSION

chaffer

1шт.

61

1994858C1

COVER

chaffer finger

1шт.

62

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT hex washer head, special, 3/8 NC x 1-1/4 inch

2шт.

63

492-11038

LOCK WASHER,3/8"

2шт.

64

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

65

492-11025

LOCK WASHER,1/4"

8шт.

66

425-104

NUT,1/4"-20, Cl 5

8шт.

67

1338345C2

RETAINER

chaffer seal, left hand

1шт.

68

1338346C1

RETAINER

chaffer seal, right hand

1шт.

69

1322698C3

ANGLE

chaffer seal, left hand rear

1шт.

70

1322699C3

ANGLE

chaffer seal, right hand rear

1шт.

71

1979332C3

SEAL

chaffer

1шт.

72

120001A1

DEFLECTOR

sieve

1шт.

73

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

self tapping, hex washer head, No. 10 NC x 1/2 inch

6шт.

74

495-81107

WASHER,.281" x 7/8" x .060"

flat, 9/32 x 7/8 x 3/64 inch

6шт.

75

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

BOLT hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

76

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch

2шт.
