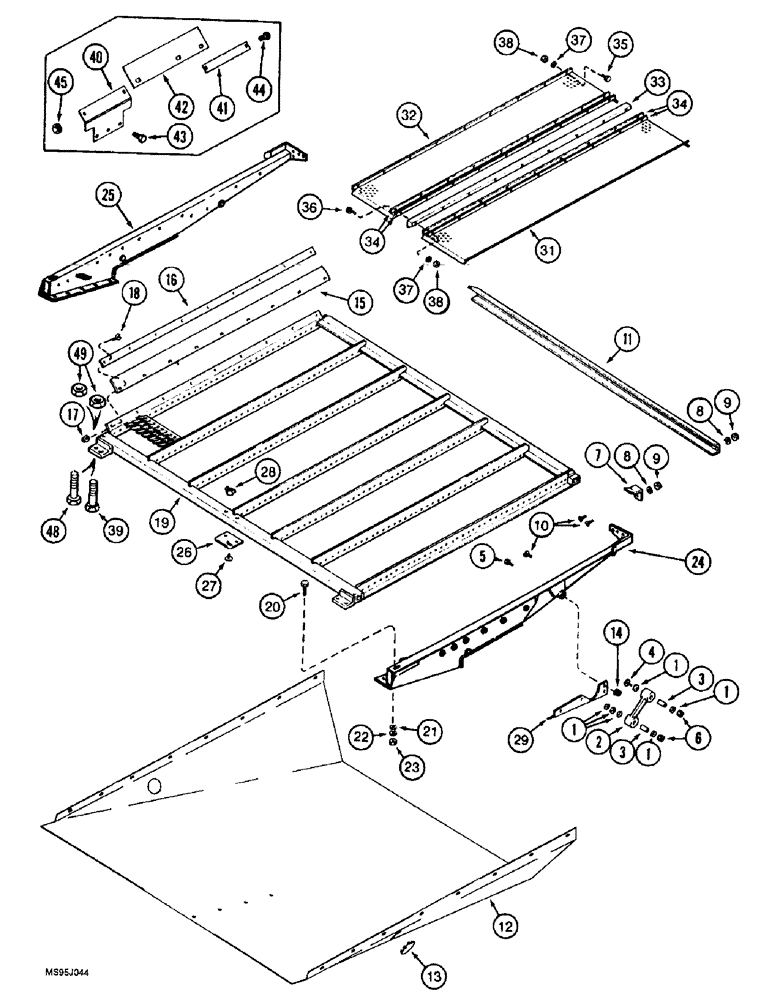

Запчасти Case IH 1688 (9B-38) - SHOE SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 inch

12шт.

2

1957450C1

ARM

HANGER shoe, front, Includes: Ref. 3

2шт.

3

1330324C1

BUSHING

shoe front hanger

2шт.

4

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

BOLT carriage, 5/8 NC x 4 inch

2шт.

5

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

BOLT hex, 5/8 NC x 5 inch, grade 8

2шт.

6

232-41110

NUT,5/8"-11, GC

4шт.

7

182684C2

CLIP

shoe, front support

2шт.

8

492-11031

LOCK WASHER,5/16"

8шт.

9

425-105

NUT,5/16"-18, G5

8шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

11

1319239C1

ANGLE

BRACKET shoe, front

1шт.

12

1322461C1

PAN

shoe return, lower

1шт.

12a

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 inch, not shown

2шт.

12b

231-5146

FLANGE NUT,3/8"-16

Not shown

2шт.

12c

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch, not shown

16шт.

12d

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch, not shown

8шт.

12e

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Not shown

16шт.

13

205-126

HOLE PLUG BUTTON,1 3/4"

button, 1-3/4 inch ID

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

15

1325324C1

SEAL,56mm W x 1582mm L

shoe sieve

2шт.

16

1325325C1

RETAINER

shoe sieve seal

2шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

18

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

18шт.

19

87492189

SIEVE

shoe, 1-1/8 inch slat

1шт.

20

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

BOLT hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

20

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT hex washer head, special, 3/8 NC x 1-1/4 inch

2шт.

21

142619H

WASHER

flat, 13/32 x 3/4 x 7/64 inch

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

2шт.

24

1979901C4

RAIL ASSY.

SUPPORT shoe side, right hand, replaces 1979901C3

1шт.

25

1979900C4

RAIL ASSY.

SUPPORT shoe side, left hand, replaces 1979900C3

1шт.

26

186675C1

ADJUSTING PLATE

shoe lever

1шт.

27

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT carriage, 1/4 NC x 1/2 inch, grade 2

2шт.

28

86627130

WING NUT,1/4"-20

1/4 inch NC

2шт.

29

1325321C1

SUPPORT

forward shoe, right hand

1шт.

30

1325320C1

SUPPORT ASSY.

forward shoe, left hand, not shown

1шт.

31

1319282C1

SCREEN

perforated, side section

2шт.

32

1319283C1

SCREEN

perforated, center section

4шт.

33

1319284C1

BAR

wood spacer

1шт.

34

1319300C1

BAR

screen fastener backing

10шт.

35

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

36шт.

37

492-11025

LOCK WASHER,1/4"

45шт.

38

425-104

NUT,1/4"-20, Cl 5

45шт.

39

326-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 8

2шт.

197493A1

PACKAGE

KIT shoe extension, Includes: Ref. 40 - 45

1шт.

40

187187A1

PLATE

shoe rail extension

2шт.

41

187204A1

BAR

shoe sieve seal extension

2шт.

42

187207A1

SEAL

shoe sieve

2шт.

43

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

44

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT serrated slotted truss head, 1/4 NC x 3/4 inch

6шт.

45

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

46

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

Not shown

2шт.

47

232-5316

FLANGE NUT,Flg, 3/8"-16

Not shown

4шт.

48

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

2шт.

49

232-5316

FLANGE NUT,Flg, 3/8"-16

4шт.

36

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.
