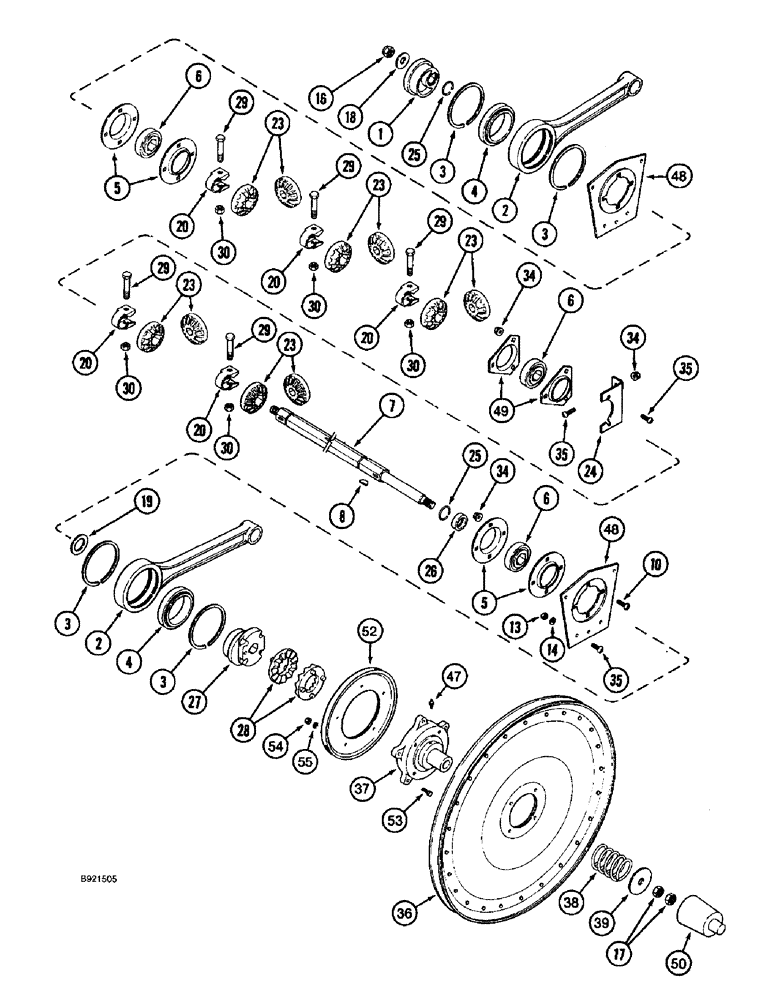

Запчасти Case IH 1688 (9B-32) - SHAKER SHAFT AND AUGER DRIVE (14) - ROTOR, CONCANVES & SIEVE

1

1322573C1

CAM

shaker shaft, pitman drive, left hand

1шт.

1a

1322623C1

RETAINER

RING internal, 1-13/64 inch, not shown

2шт.

1b

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

flat, special, 29/32 x 1-1/4 x 1/8 inch, not shown

1шт.

1c

1979190C1

RETAINER

RING retaining, not shown

1шт.

2

1989251C1

ARM

PITMAN shaker shaft, see Figure 9B-37 for correct assembly

2шт.

3

1322624C1

SNAP RING

RING retaining, internal, 5-1/8 inch

4шт.

4

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

ball, shaker shaft, pitman

2шт.

5

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

bearing, shaker shaft

4шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

ball, shaker shaft

3шт.

7

1322616C1

SHAFT

shaker

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

8шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

492-11038

LOCK WASHER,3/8"

8шт.

16

232-41112

NUT,3/4"-10, GC

1шт.

17

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NC

2шт.

18

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

shaker cam

1шт.

19

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

20

225265R1

CLAMP

auger bed gear

5шт.

23

1300639C1

GEAR-SET

auger drive, set of two, 14 teeth

5шт.

24

186589C1

SUPPORT

center bearing

1шт.

25

575186R1

SNAP RING

retaining, shaker shaft pitman

2шт.

26

935856R1

BUSHING

shaker shaft pitman

1шт.

27

1322574C1

CAM

shaker shaft, pitman drive, right hand

1шт.

27a

1322623C1

RETAINER

RING retaining, internal, 1-13/64 inch, not shown

2шт.

27b

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

flat, 1-1/16 x 1-1/4 x 1/8 inch, not shown

1шт.

27c

1979190C1

RETAINER

RING retaining, not shown

1шт.

28

B12170

RATCHET,Clutch Slip, 94.49mm

clutch, slip, shaker shaft drive

2шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

5шт.

30

231-4118

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

5шт.

34

231-5146

FLANGE NUT,3/8"-16

13шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

36

193682C1

PULLEY

driven, 25 inch OD, right drive, see Figure 9A-4 for correct assembly

1шт.

37

1303136C1

HUB

drive slip clutch

1шт.

38

19302K

SPRING

shaker shaft drive slip clutch

1шт.

39

167521H1

SPRING WASHER

special

1шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

48

1302221C1

PLATE

shaker shaft

2шт.

49

180955C1

FLANGED BEARING,0.375"

bearing

2шт.

50

182544C1

SHIELD

shaker shaft spring

1шт.

52

566516R91

PULLEY ASSY.

drive, 9-3/4 inch OD

1шт.

53

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

54

425-105

NUT,5/16"-18, G5

5шт.

55

492-11031

LOCK WASHER,5/16"

5шт.
