(9B-31A) - AUGER BED

Запчасти Case IH 1688 (9B-31A) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

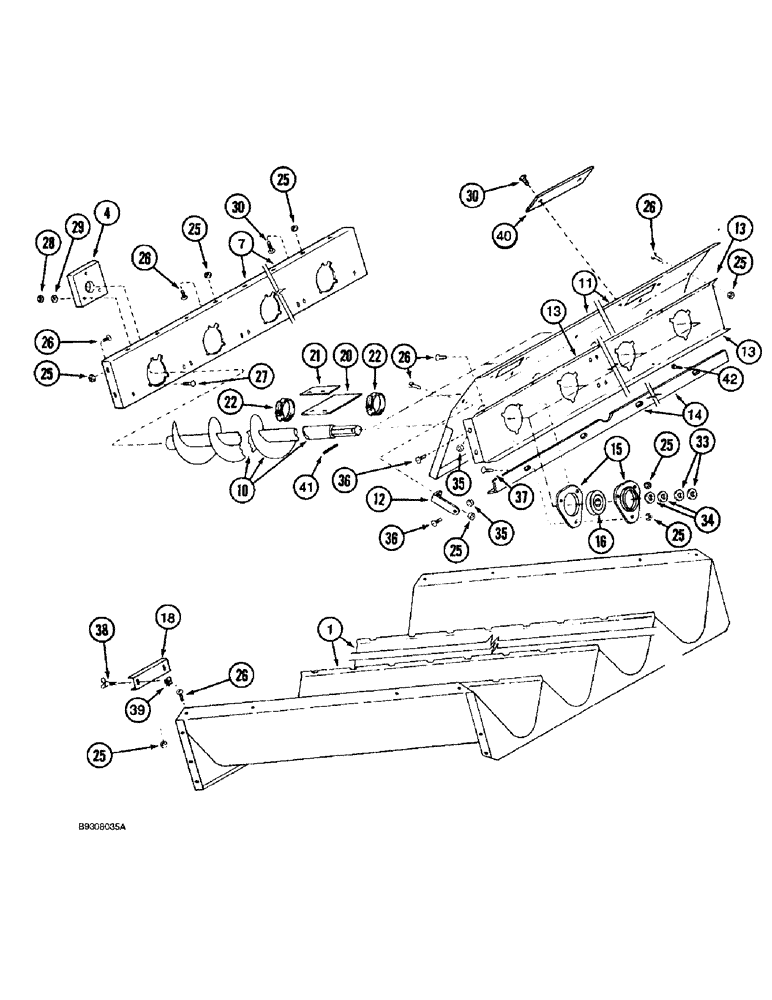

Схема запчастей Case IH 1688 - (9B-31A) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE
25
25
12
26
1
37
38
7
22
25
28
25
13
40
26
16
41
11
25
27
36
21
25
39
22
35
18
35
26
29
30
4
14
15
25
33
34
20
26
13
30
13
36
10
25
26
42
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

191645C4

TROUGH

auger

1шт.

4

193414C2

BOARD

front auger bearing

5шт.

7

1345014C3

SUPPORT

auger, front

1шт.

10

1308541C1

AUGER

right hand rotation

5шт.

11

1321372C1

FILLER

PANEL rotor to auger drive

1шт.

12

193554C1

SUPPORT

pan

2шт.

13

1309226C1

SUPPORT

auger drive gear

1шт.

14

188360C1

STIFFENER

auger support stiffener

1шт.

15

571424R1

FLANGE

bearing

10шт.

16

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

auger drive

5шт.

18

185068C1

COVER

auger trough clean out

5шт.

1300666C91

KIT

accessory, auger bed grain spreader, Includes: Ref. 20 - 22

1шт.

20

1302112C1

STRIP

PLATE auger bed grain spreader

1шт.

21

1302113C1

BAR

grain spreader plate

1шт.

22

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

No. 28

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

27

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT carriage, 3/8 NC x 2-1/2 inch

1шт.

27

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8 NC x 2-1/4 inch

14шт.

28

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

15шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

15шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

13шт.

33

495-81210

WASHER,34.14mm ID x 50.8mm OD x 1.7mm Thk

flat, 1-11/32 x 2 x 3/64 inch

10шт.

34

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

flat, 1-11/32 x 2 x 7/64 inch

10шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

37

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

10шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT wing, clean out cover

10шт.

39

564791R1

SPRING NUT

Tinnerman, 1/4 inch NC

10шт.

40

1319548C1

BAR

COVER grain sensor

2шт.

41

38-12032

LOCK PIN,5/16" x 2", Slotted

5/16" x 2", Slotted

5шт.

42

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

2шт.
