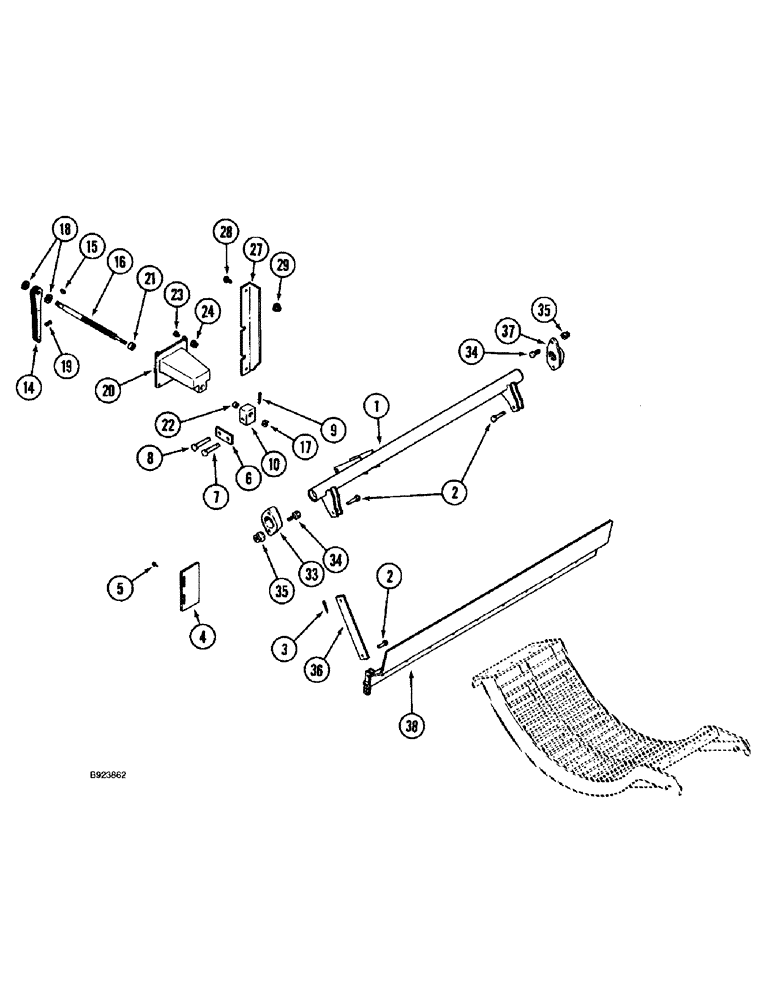

Запчасти Case IH 1688 (9B-30) - CONCAVE CONTROL (14) - ROTOR, CONCANVES & SIEVE

1

191422C1

LEVER

concave control

1шт.

2

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

headed, 1/2 x 1-7/16 inch, grade 2

4шт.

3

432-1216

COTTER PIN,3/16" x 1"

4шт.

4

188168C1

PLATE

concave indicator

1шт.

5

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

6

192888C1

PLATE

concave control

2шт.

7

439-1848

HEADED PIN,1/2" x 3"

headed, 1/2 x 3 inch, grade 2

1шт.

8

439-1838

HEADED PIN,1/2" x 2 3/8"

headed, 1/2 x 2-3/8 inch, grade 2

1шт.

9

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

192886C1

NUT

adjusting, special

1шт.

14

170282C1

HANDLE

concave control

1шт.

15

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

16

1989682C1

STEM

SHAFT concave adjusting

1шт.

17

231-14410

NUT,5/8"-11, GB

1шт.

18

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

flat, 21/32 x 1-5/16 x 3/32 inch, hardened

2шт.

19

38-11620

PIN,1/4" x 1 1/4", Slotted

1шт.

20

192883C93

SUPPORT

HOUSING ASSY concave control, Includes: Ref. 21 and 22

1шт.

21

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

concave control housing

1шт.

22

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

concave control housing

1шт.

23

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

4шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

27

182577C1

ANGLE

BRACKET mounting, control housing

1шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

33

192890C2

HUB

concave control shaft

2шт.

34

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

35

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

36

1318893C2

BAR

concave control, replaces 1318893C1

1шт.

37

188351C1

HUB

concave control shaft, front

2шт.

38

1318433C1

SUPPORT

concave anchor, see Figure 9B-28

1шт.
