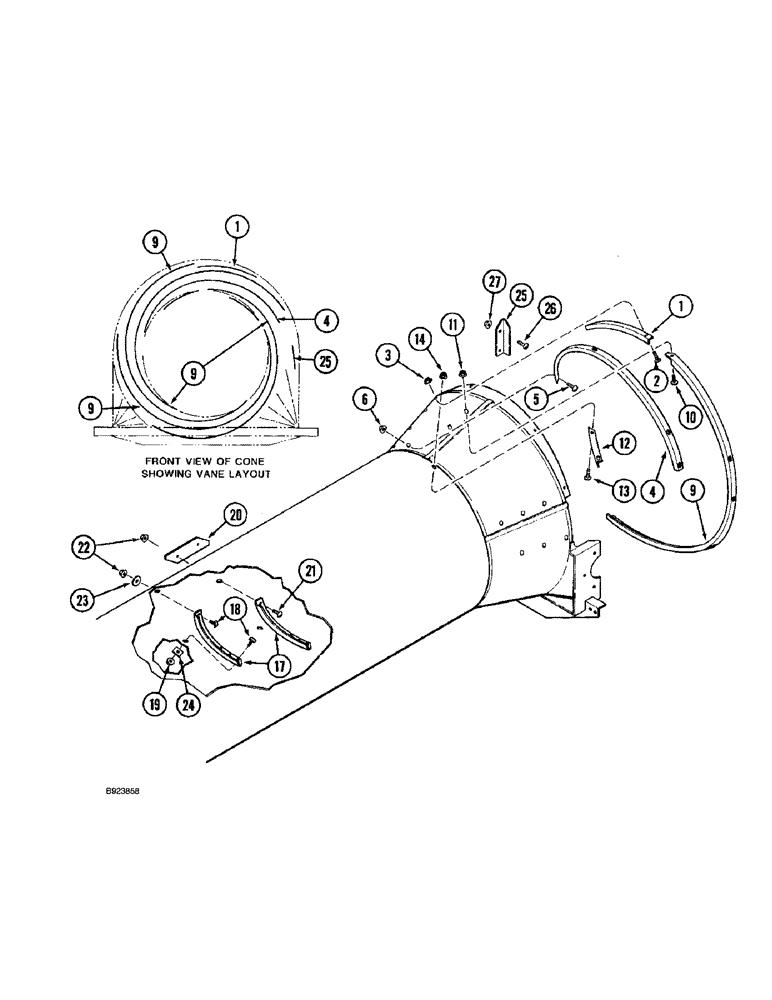

Запчасти Case IH 1688 (9B-24) - VANE (14) - ROTOR, CONCANVES & SIEVE

1

193395C1

BLADE

VANE cone extension

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

186777C4

BLADE

VANE cone, short

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

9

188192C3

STIFFENER

VANE cone, front

4шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

23шт.

10

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

slotted truss head, 5/16 NC x 1-1/4 inch

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

11

231-1445

NUT,5/16"-18, GB

1шт.

12

193383C1

SUPPORT

VANE extension transport

3шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

3шт.

14

231-5146

FLANGE NUT,3/8"-16

3шт.

17

186075C2

SUPPORT TUBE

VANE transport

13шт.

18

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

flat raised head, special

39шт.

19

231-5146

FLANGE NUT,3/8"-16

39шт.

20

1318581C1

PLATE

vane

6шт.

21

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

flat raised head, special

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

flat, special, 13/32 x 2-1/2 x 5/32 inch

10шт.

24

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

square, 13/32 x 1-1/2 x 3/16 inch

2шт.

25

186778C1

BLADE

VANE cone extension

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
