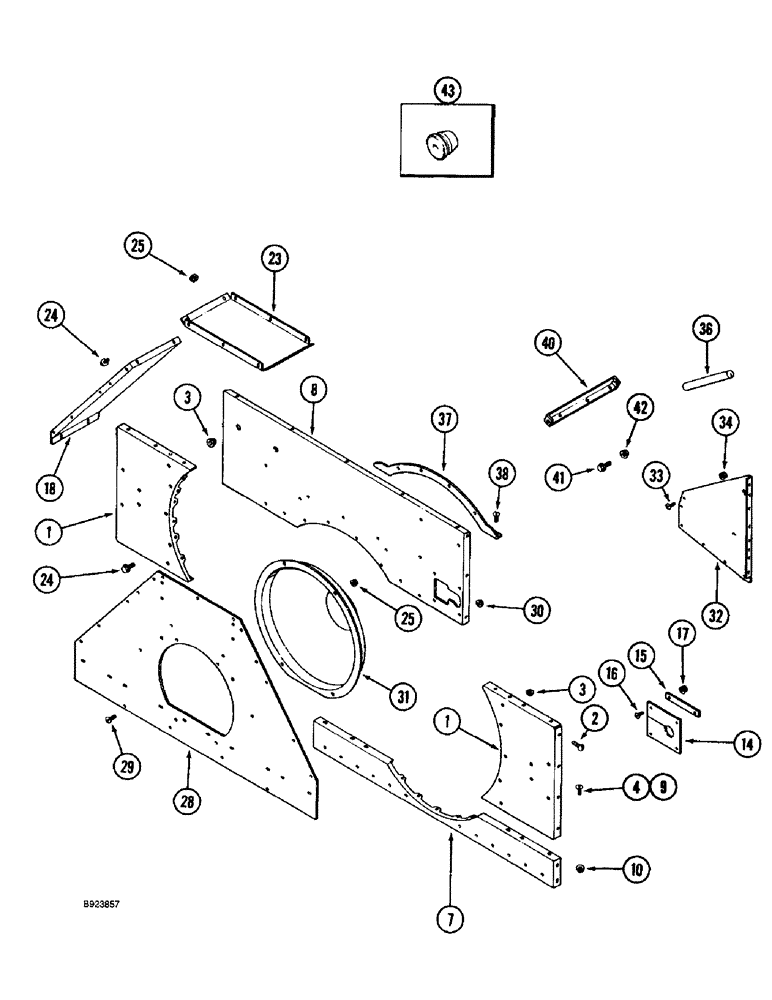

Запчасти Case IH 1688 (9B-22) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE

1

191269C4

SUPPORT

rotor cage, rear

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

8шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

24шт.

3

231-5146

FLANGE NUT,3/8"-16

40шт.

4

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

8шт.

7

182931C1

SUPPORT

lower cage, rear

1шт.

8

193392C2

SUPPORT

rear upper rotor

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

11шт.

10

231-5146

FLANGE NUT,3/8"-16

11шт.

14

191191C2

GASKET,6.35mm Thk

SEAL dust

1шт.

15

191192C1

BAR

dust seal

2шт.

16

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

18

193393C1

COVER

discharge side

2шт.

23

193170C1

COVER

discharge top

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

24

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

3шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

28

193967C1

PLATE

discharge back

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

31

182550C2

HOUSING

RETAINER rotor gear housing

1шт.

32

191398C2

SHEET

SUPPORT gear housing inner

1шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

36

191498C1

SEALING STRIP

SEAL 20-13/16 inch (528 mm) long

1шт.

37

1308696C1

SUPPORT

rear upper cage

1шт.

38

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

7шт.

40

182634C3

SUPPORT

STIFFENER cage grate, rear

1шт.

41

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

hex flange, special, 1/2 NC x 1 inch

2шт.

42

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

43

195803C1

GROMMET

harness, 3/8 inch

1шт.
