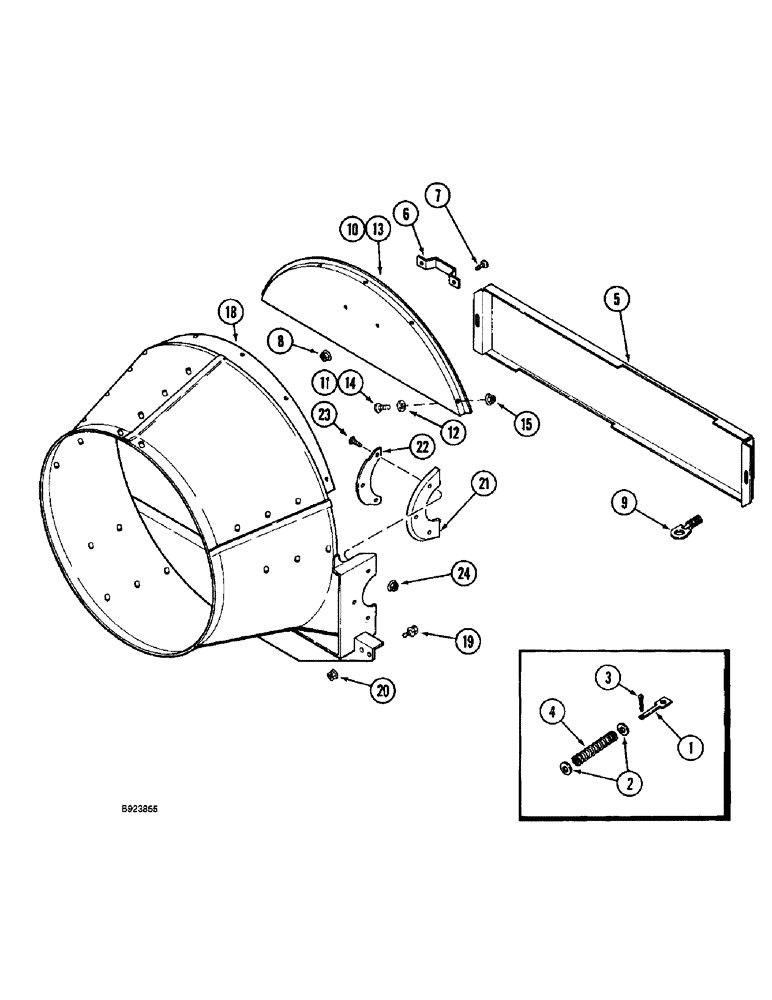

Запчасти Case IH 1688 (9B-18) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

454502R1

LATCH

door, separator, if equipped

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), If equipped

4шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

If equipped

2шт.

4

M296

SPRING

front door latch, if equipped

2шт.

5

193608C2

DOOR

separator, front

1шт.

6

160638C1

HANDLE

door

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

188029C1

LATCH

separator, front door

2шт.

10

1309385C1

DOOR

rotor, front, rice combine

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

13

182974C93

DOOR

rotor, includes decal

1шт.

13a

193607C3

SUPPORT

DOOR rotor, front, support, without decal, not shown

1шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

6шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

18

1309384C2

HOUSING ASSY.

CONE transition, rice

1шт.

18

1317778C2

CONE

transition, grain and corn

1шт.

19

424-816

BOLT,Hex, 1/2" - 13 x 1", Gr 2

BOLT hex, 1/2 NC x 1 inch, grade 2

4шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

20

231-5146

FLANGE NUT,3/8"-16

4шт.

21

195202C1

SEAL

feeder

2шт.

22

195409C1

PLATE

with weld bolt, seal backup, Includes: Ref. 23

2шт.

23

1324026C1

BOLT,Torx Hd, 5/16" - 18 x 28.58mm

BOLT special, back-up plate

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.
