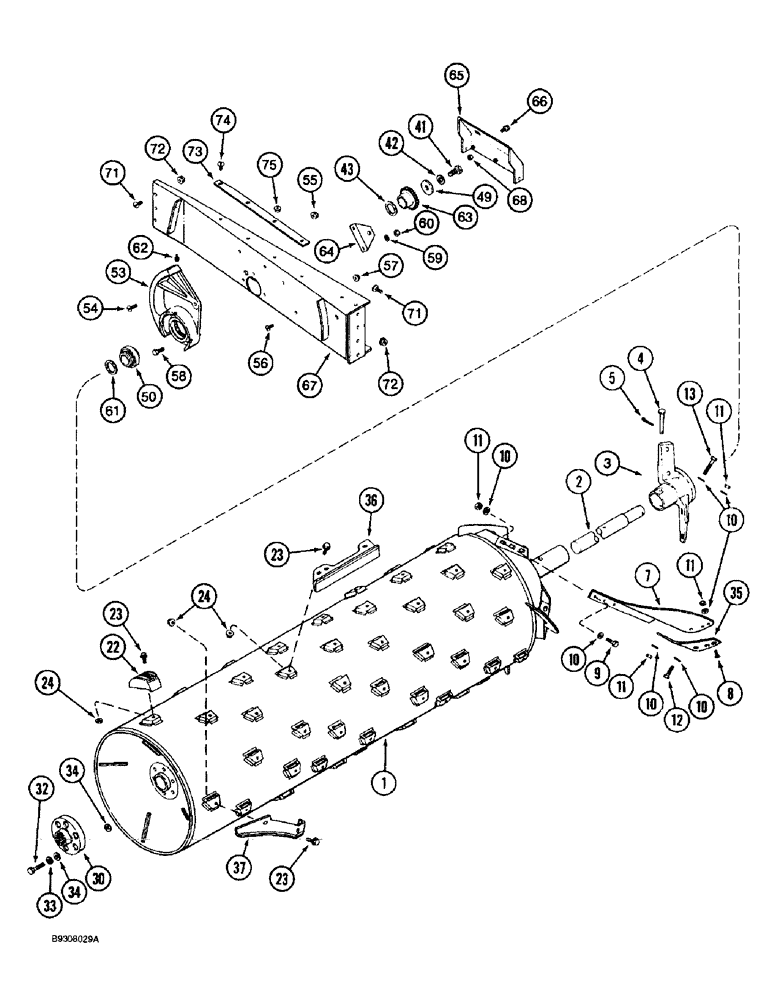

Запчасти Case IH 1688 (9B-14) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1

1347123C3

ROTOR ASSY.

threshing, all crops except rice, Includes: Ref. 2 - 35

1шт.

1

184461C1

ROTOR ASSY.

threshing, includes (30) rasp bars with spikes, and 44 rasp bars without spikes, rice, no longer available, order 1347438C1, Includes: Ref. 2 - 35, Serial Range: -JJC0120460

1шт.

1

1347438C1

ROTOR

ASSY threshing, includes 74 rasp bars with spikes, rice, Includes: Ref. 2 - 35, Start Serial: JJC0120460

1шт.

1

104348A1

ROTOR

ASSY threshing, corn and soybean

1шт.

2

191545C2

SHAFT

rotor, front

1шт.

3

184460C1

IMPELLER

IMPELLER rotor, 2 arm

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

KIT impellar blade, replaces 1957445C2, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE impeller

2шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT hex socket, 1/2 NC x 1-1/2 inch

6шт.

9

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

11

199528A1

NUT

hex, self-locking, 1/2 inch NC, grade 8

16шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

22

1309175C1

BAR

rasp, with spike, rice, Serial Range: -JJC0120460

30шт.

22

1309336C1

BAR

rasp, without spike, rice, Serial Range: -JJC0120460

44шт.

22

1309175C1

BAR

rasp, with spike, rice, Start Serial: JJC0120460

74шт.

22

1309336C1

BAR

rasp, without spike, all crops except rice

66шт.

22

1309336C1

BAR

rasp, without spike, corn and soybean

58шт.

22

1968743C1

BAR

rasp, without spike, chrome

1шт.

22

1968970C1

BAR

rasp, with spike, chrome, all crops except rice

32шт.

23

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

30

1345307C1

COUPLING

rotor drive

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

1309186C2

BAR

wear, chrome

1шт.

36

1968969C2

BAR

separator, chrome, all crops except rice

4шт.

36

1318976C2

BAR,Straight Seperator

separator, corn and soybean

8шт.

37

1327676C1

BAR

ANGLE kicker

2шт.

37

1968968C1

PLATE

ANGLE kicker, chrome

2шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

BOLT hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

53

1309076C1

BEARING HOUSING

rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

55

231-5146

FLANGE NUT,3/8"-16

1шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

1шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

flat, special, front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

63

1979965C1

ROTOR

ROTOR multi-position tachometer

1шт.

64

1301239C1

BRACKET

rotor tachometer

1шт.

65

182845C4

SHIELD

sensor, RPM

1шт.

66

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

67

193384C3

SUPPORT

front bearing

1шт.

68

131-872

SPRING NUT,Ret, 3/8"-16

hex, 3/8 inch NC

3шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

73

1308967C1

BAR

front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.
