Запчасти Case IH 1688 (9B-10) - ROTOR, GRAIN AND CORN (14) - ROTOR, CONCANVES & SIEVE

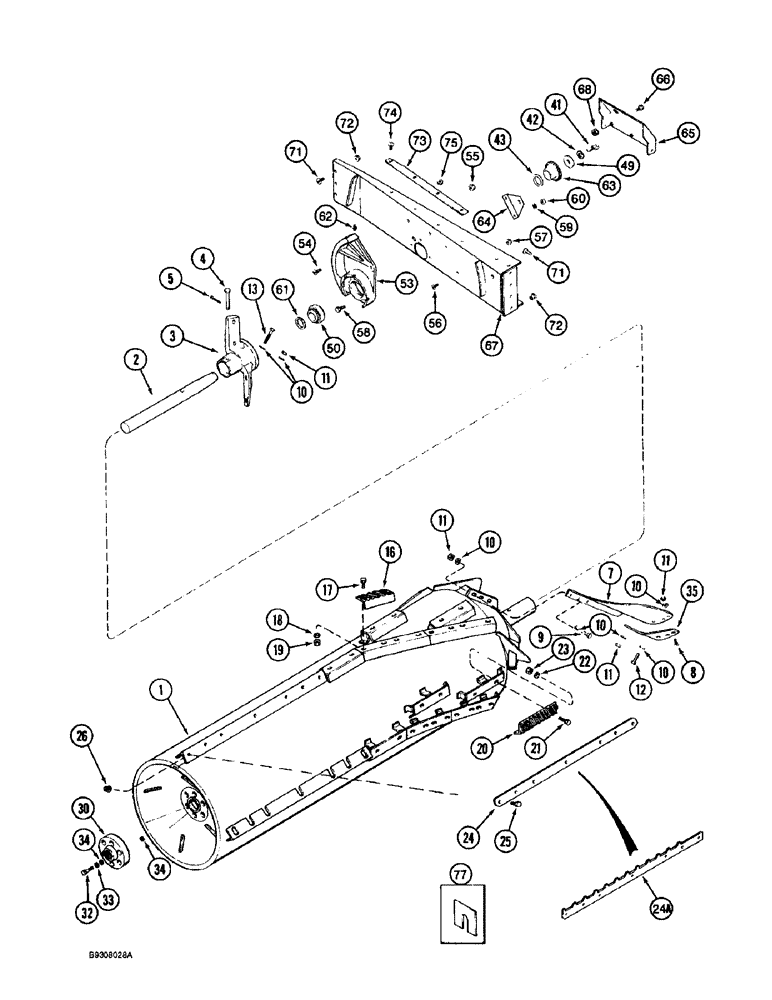

Схема запчастей Case IH 1688 - (9B-10) - ROTOR, GRAIN AND CORN (14) - ROTOR, CONCANVES & SIEVE
4
5
21
11
8
13
73
54
42
62
72
34
3
66
49
9
63
57
10
43
18
20
12
33
50
58
64
17
77
11
72
61
10
35
53
74
26
59
11
22
10
75
34
68
56
71
2
60
24
25
10
67
1
55
23
30
7
41
71
16
11
65
19
10
32
24a

Артикул

Название

Примечание

Количество

184464C2

ROTOR ASSY.

threshing, straight rear bar, Includes: Ref. 1 - 35

1шт.

184467C2

ROTOR ASSY.

threshing, rear bar with teeth, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR threshing 1

1шт.

2

191545C2

SHAFT

rotor, front

1шт.

3

184460C1

IMPELLER

IMPELLER rotor 2 arm

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

KIT impeller blade replaces 1957445C2 kit, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE impeller 2

1шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT hex socket 1/2 NC x 1-1/2 inch blade retaining

6шт.

9

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

11

199528A1

NUT

hex, self-locking 1/2 inch NC, grade 8

16шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

16

1308830C2

RASP BAR

helical, rasp 120 degree

16шт.

16

1324581C3

RASP BAR

helical, rasp 120 degree, chrome

16шт.

Not part of 184464C2 or 184467C2 rotor assemblies and must be purchased separately.

1шт.

16a

1994892C1

RASP BAR

helical, smooth not shown

16шт.

Not part of 184464C2 or 184467C2 rotor assemblies and must be purchased separately.

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

32шт.

18

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat 13/32 x 13/16 x3/32 inch, hardened

32шт.

19

232-4136

LOCK NUT,3/8"-16, GC

32шт.

20

1308668C1

RASP BAR

straight, rasp four used on some production rotors

12шт.

20

1324582C2

RASP BAR

straight, rasp, chrome

12шт.

Not part of 184464C2 or 184467C2 rotor assemblies and must be purchased separately.

1шт.

20a

1994890C1

RASP BAR

straight, smooth not shown

12шт.

Not part of 184464C2 or 184467C2 rotor assemblies and must be purchased separately.

1шт.

21

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

22

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat 13/32 x 13/16 x 3/32 inch, hardened

24шт.

23

232-4136

LOCK NUT,3/8"-16, GC

24шт.

24

1303038C2

BAR

rotor, rear straight 184464C2 rotor

4шт.

24

1303038C2

BAR

rotor, rear straight chrome

4шт.

Not part of 184464C2 or 184467C2 rotor assemblies and must be purchased separately.

1шт.

24a

1302103C3

BAR

rotor, with teeth 184467C2 rotor

4шт.

25

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

28шт.

26

231-5146

FLANGE NUT,3/8"-16

28шт.

30

1345307C1

COUPLING

rotor drive

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

1309186C2

BAR

wear, chrome

2шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

53

1309076C1

BEARING HOUSING

rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

55

231-5146

FLANGE NUT,3/8"-16

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

flat, special, front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

63

1979965C1

ROTOR

ROTOR multi-position tachometer

1шт.

64

1301239C1

BRACKET

rotor tachometer

1шт.

65

182845C4

SHIELD

sensor, RPM

1шт.

66

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

67

193384C5

SUPPORT ASSY.

front bearing

1шт.

68

131-872

SPRING NUT,Ret, 3/8"-16

hex, 3/8 inch NC

3шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

73

1308967C1

BAR

front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

1324208C1

SHIM KIT

KIT shim, rotor rasp, Includes: Ref. 77

1шт.

77

NSS

NOT SOLD SEPARAT

SHIM 0.010 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM 0.030 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM 0.053 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM 0.093 inch

28шт.

Выбрано товаров: 73
