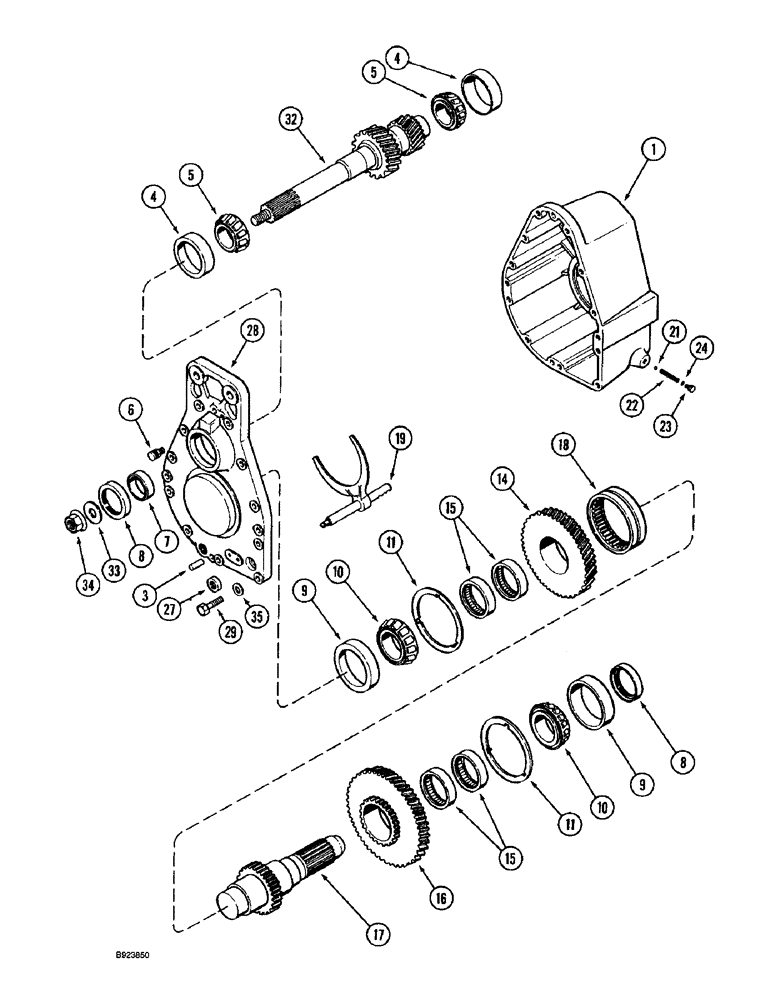

Запчасти Case IH 1688 (9B-08) - ROTOR DRIVE, GEAR HOUSING (14) - ROTOR, CONCANVES & SIEVE

1315328C4

GEARBOX

ASSY gear, rotor drive, Includes: Ref. 1 - 35

1шт.

1315328C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed, For N.A. Only

1шт.

1315328C4C

CORE-ROTOR DRIVE

Return Number, For N.A. Only

1шт.

1

194064C91

HOUSING ASSY.

rotor gear, Includes: Ref. 3

1шт.

3

37-1820

DOWEL,1/2" x 1 1/4"

PIN 1/2 x 1-1/4 inch, hardened

2шт.

4

ST863

BEARING CUP,93.22mm OD x 23.81mm W

tapered roller bearing

2шт.

5

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

tapered roller

2шт.

6

1338222C1

BREATHER,1/8"-27, Short

Housing

1шт.

7

194047C1

BUSHING,49.16mm ID x 63.5mm OD x 21.02mm L

input shaft

1шт.

8

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

oil

2шт.

9

13363D

TAPERED BEARING

tapered roller bearing

2шт.

10

13367DC

ROLLER BEARING

tapered roller

2шт.

11

194057C1

THRUST WASHER,127mm ID x 152.4mm OD x 1.6mm Thk

2шт.

14

193826C1

PINION

GEAR driven, 51 teeth

1шт.

15

619085C91

BEARING, NEEDLE,Needle, 76.19mm ID x 89.04mm OD x 19.05mm W

4шт.

16

193824C1

GEAR

GEAR driven, 58 teeth

1шт.

17

194059C1

SHAFT

rotor drive output

1шт.

18

194069C1

COLLAR

shift

1шт.

19

100400A1

SHIFTER FORK

1шт.

21

211-1014

BALL,7/16" Dia

chrome alloy steel, grade 24

1шт.

22

107234C1

SPRING

compression

1шт.

23

129998

PLUG,1/2" - 20 ORB

Incl. Ref. 24

1шт.

27

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

oil

1шт.

28

194039C3

COVER

rotor gear housing

1шт.

29

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

11шт.

32

1330280C1

SHAFT

input

1шт.

33

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

34

1315288C1

FLANGE NUT

hex, self-locking, special, 7/8 inch NC

1шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

24

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
