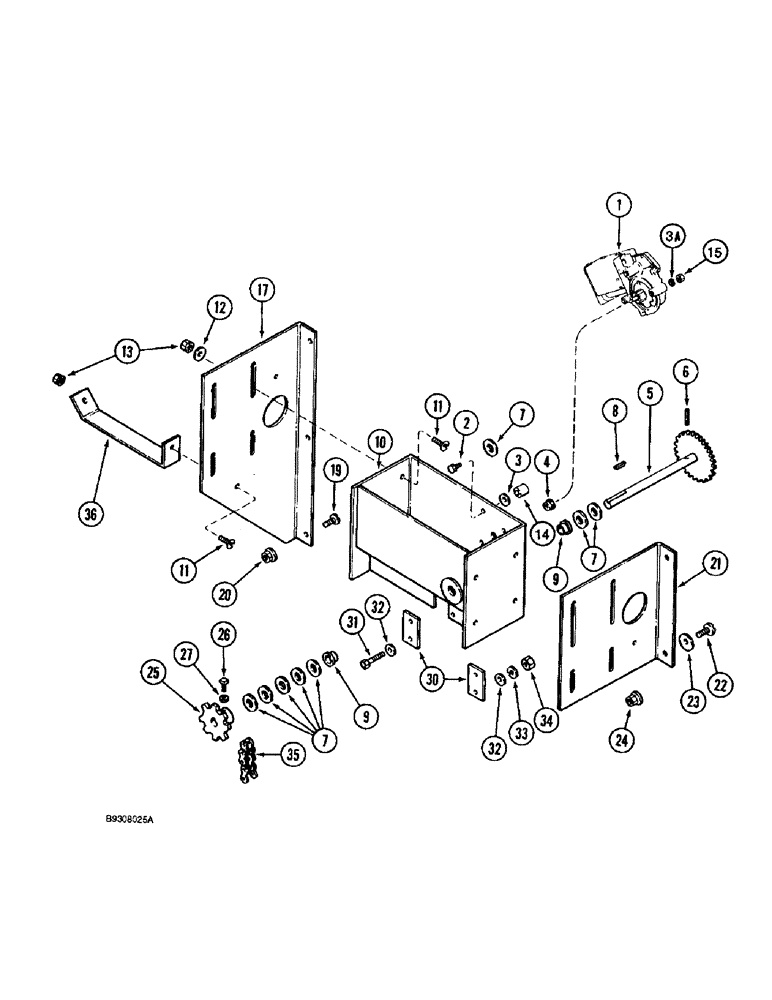

Запчасти Case IH 1688 (9B-06) - ROTOR DRIVE, SPEED ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

1

126573C1

MOTOR, ELECTRIC

variable speed, Serial Range: -JJC0119985

1шт.

1

111787A1

MOTOR, ELECTRIC

variable speed, Start Serial: JJC0119985

1шт.

1

111787A2R

REMAN-ELECTRIC MOTOR

1688 CASE IH AXIAL-FLOW COMBINE, variable speed, Start Serial: JJC0119985 (1/93-12/94), Reman for New PN 111787A1

1шт.

1

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with 126573C1 motor

3шт.

2

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Used with 111787A1 motor

2шт.

3

495-81137

WASHER,13/32" x 1" x .224"

flat, 13/32 x 1 x 15/64 inch, used with 126573C1 motor

3шт.

3a

492-11025

LOCK WASHER,1/4"

Used with 111787A1 motor

2шт.

4

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

electric motor

1шт.

5

194338C1

GEAR

rotor gear

1шт.

6

17080R1

LOCK PIN,5/32" x 1 1/4", Slotted

1шт.

7

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

8

Q5024

KEY,3/16" Sq x 1", Par

1шт.

9

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

gear shaft

2шт.

10

183227C1

SUPPORT ASSY.

motor, with three motor mounting holes, used with 126573C1

1шт.

10

183227C2

SUPPORT

motor, with three motor mounting holes, used with 111787A1

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

10шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

8шт.

13

231-5146

FLANGE NUT,3/8"-16

10шт.

14

113485A1

SPACER

17 mm, used with 111787A1 motor

2шт.

15

425-104

NUT,1/4"-20, Cl 5

Used with 111787A1 motor

2шт.

17

188215C3

SUPPORT

Rotor adjusting motor, LH

1шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted struss head, special, 3/8 NC x 3/4 inch

3шт.

20

231-5146

FLANGE NUT,3/8"-16

3шт.

21

194336C2

SUPPORT

rotor adjusting, RH

1шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

23

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

194337C1

SPROCKET

control, 8 teeth

1шт.

26

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

set, square head, 1/4 NC x 3/4 inch, cup point

2шт.

27

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

30

1302173C1

PAD

motor support

2шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSY variable drive

1шт.

Use 31 links from roll of Number 2040 chain, (1) 457113R91 connecting link and (2) 457114R91 offset links.

1шт.

36

188216C1

SUPPORT

rotor adjusting motor LH

1шт.
