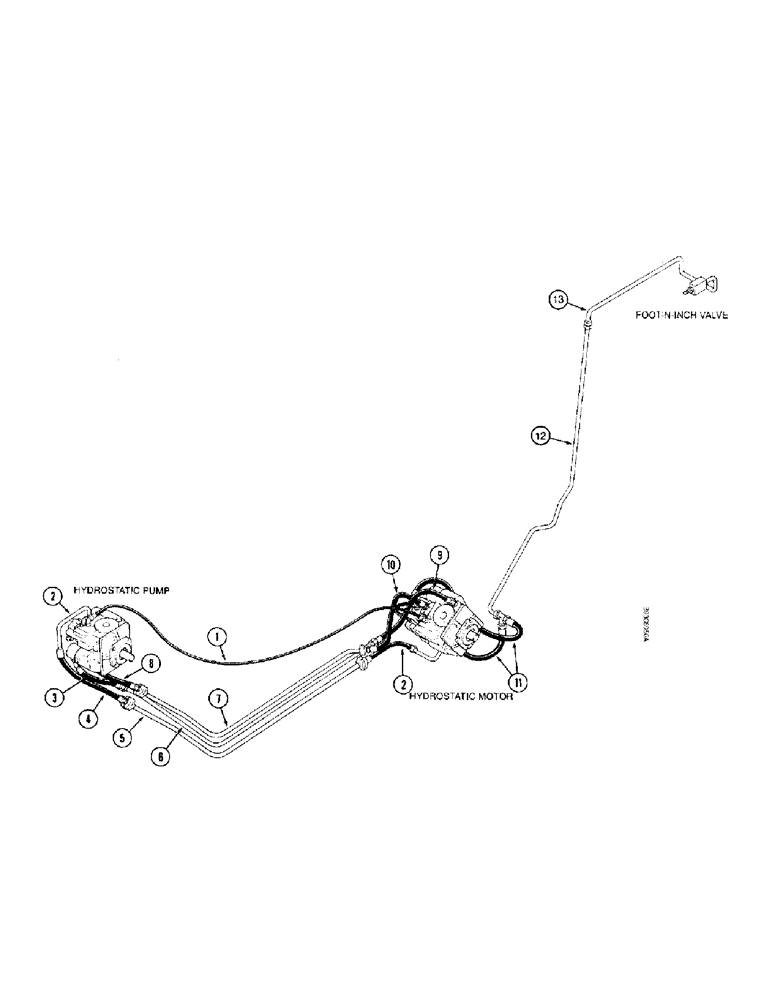

Запчасти Case IH 1688 (1-22) - PICTORIAL INDEX, TWO SPEED PROPULSION SYSTEM (00) - PICTORIAL INDEX

1

Charge Pressure Hose, Page 6-13

1шт.

2

Reverse Pressure Hose, Page 6-13

1шт.

3

Housing Drain Upper Hose, Page 6-13

1шт.

4

Reverse Pressure Hose, Page 6-13

1шт.

5

Reverse Pressuer Tube, Page 6-13

1шт.

6

Case Drain Tube, Page 6-13

1шт.

7

Forward Pressure Upper Tube, Page 6-13

1шт.

8

Forward Pressure Upper Tube, Page 6-13

1шт.

9

Housing Drain Lower Hose, Page 6-13

1шт.

10

Forward Lower Pressure Hose, Page 6-13

1шт.

11

Foot-N-Inch Hose, Page 6-17

1шт.

12

Lower Foot-N-Inch Tube, Page 6-17

1шт.

13

Upper Foot-N-Inch Tube, Page 6-17

1шт.
