Запчасти Case IH 1688 (9B-04) - ROTOR DRIVE, PULLEY AND CAM (14) - ROTOR, CONCANVES & SIEVE

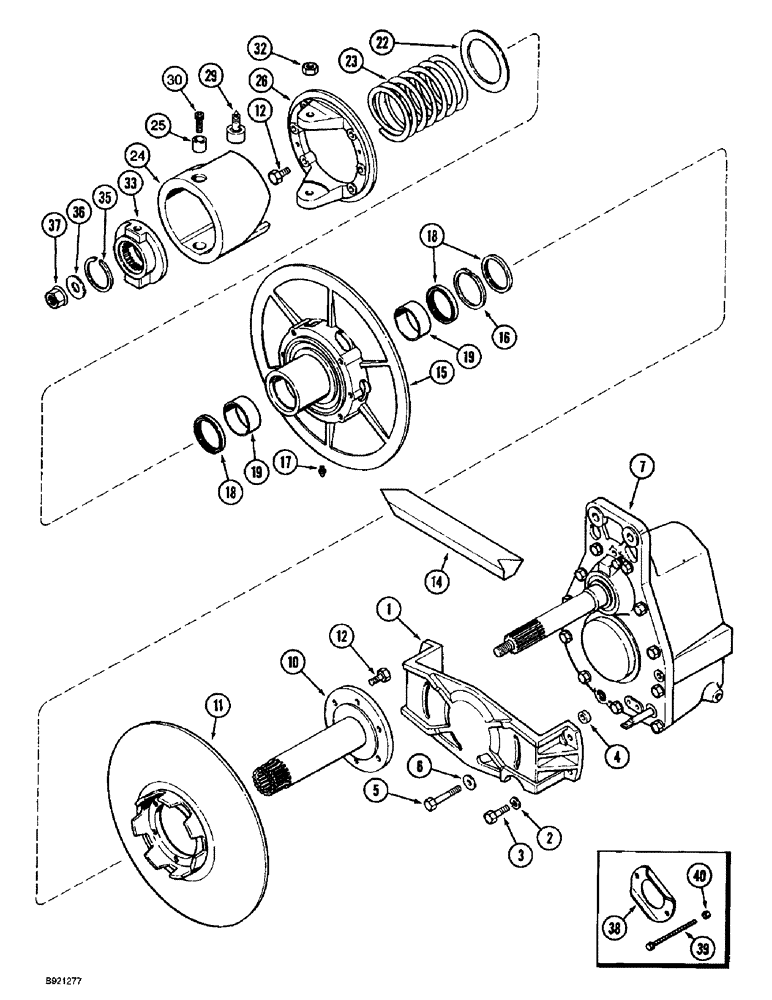

Схема запчастей Case IH 1688 - (9B-04) - ROTOR DRIVE, PULLEY AND CAM (14) - ROTOR, CONCANVES & SIEVE
26
3
12
29
7
33
36
19
38
32
12
30
15
18
25
19
18
23
37
10
11
39
6
5
2
4
35
22
40
1
14
16
24
17

Артикул

Название

Примечание

Количество

1

194058C1

SUPPORT

rear gear housing

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

4

194077C1

SPACER

gear housing

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

2шт.

6

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

7

1315328C4

GEARBOX

ASSY gear, rotor drive, parts list Figure 9B-8

1шт.

1315328C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

1315328C4C

CORE-ROTOR DRIVE

Return Number, For N.A. Only

1шт.

10

1315291C2

HUB

fixed variable pulley, welded, if equipped

1шт.

10

184489C1

HUB

fixed variable pulley, machined forged, if equipped

1шт.

11

1315292C2

PULLEY

fixed variable

1шт.

12

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

BOLT hex, self-locking, 1/2 NC x 1-1/2 inch, grade 8

12шт.

14

193945C2

V-BELT,2554.68 mm L

Rotor variable drive, Over center

1шт.

15

1315294C3

PULLEY

ASSY adjustable variable, Includes: Ref. 16 - 19

1шт.

16

537602R1

RING

pulley retaining

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

193965C91

SEAL

pulley

3шт.

Part of KIT, part number 188839C92

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING pulley

2шт.

Part of KIT, part number 188839C92

1шт.

22

1315521C1

THRUST BEARING

WASHER thrust

1шт.

23

184486C1

SPRING

9-1/32 inch free length, rotor drive torque sensing

1шт.

184478C1

CAM

ASSY follower, torque sensing, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

CAM torque sensing

1шт.

25

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

yoke pivot

2шт.

26

1315344C2

HUB

cam follower

1шт.

29

1315343C1

BEARING,38.1 mm OD x 22.22 mm

cam follower

2шт.

30

194167C1

SCREW,5/8 - 11" x 1"

BOLT cam follower yoke pivot

2шт.

32

425-1110

NUT,5/8"-18, G5

2шт.

33

1315297C2

HUB,20T

CAM torque sensing

1шт.

35

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

retaining, hub cam follower

1шт.

36

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

37

1315288C1

FLANGE NUT

hex, self-locking, special, 7/8 inch NC

1шт.

38

1315304C2

PLATE

torque spring

1шт.

39

1319996C2

ROD

BOLT torque sensing spring, special, 11-1/2 inch

2шт.

40

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

1шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

KIT repair, bushing and seal, variable pulley, Includes: Refs. 18 and 19

1шт.

Выбрано товаров: 38
