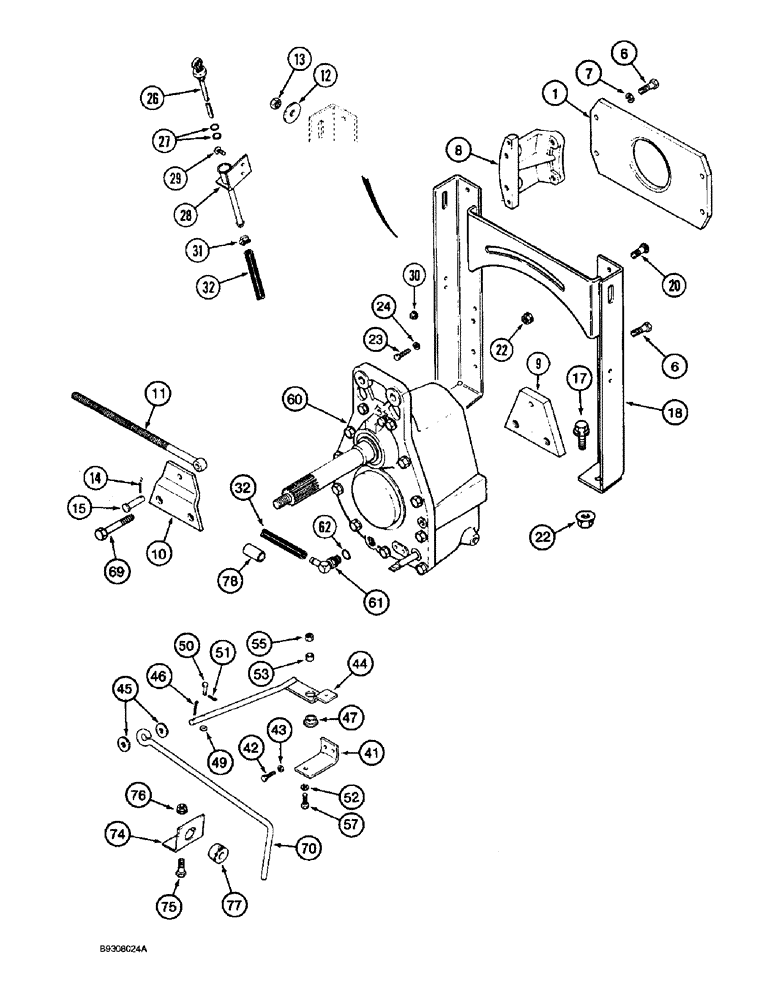

Запчасти Case IH 1688 (9B-02) - ROTOR DRIVE, MOUNTING (14) - ROTOR, CONCANVES & SIEVE

1

181315C1

PLATE

gear housing support, front

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

8

181314C2

BLOCK

housing support, front

2шт.

9

188141C1

SUPPORT

gear housing anchor

1шт.

10

188142C1

SUPPORT

gear housing anchor

1шт.

11

188143C1

EYEBOLT

EYE gear housing

1шт.

12

495-81030

WASHER,21/32" x 2" x .179"

flat, 21/32 x 2 x 11/64 inch

2шт.

13

425-1010

NUT,5/8"-11, G5

2шт.

14

432-1216

COTTER PIN,3/16" x 1"

1шт.

15

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1/2 x 2 inch

1шт.

17

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

18

1338397C1

SUPPORT ASSY.

rotor drive

1шт.

20

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT carriage, 1/2 NC x 1-1/4 inch

6шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

26

194066C91

DIPSTICK

GUAGE ASSY rotor gear housing, Includes: Ref. 27

1шт.

27

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

28

193946C1

TUBE,12.7 mm OD

gear housing gauge

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

31

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj

2шт.

32

194043C1

HYDRAULIC HOSE,12.70 mm ID x 483.00 mm

Cut from S118466X bulk, See this figure

1шт.

41

100395A1

SUPPORT

gear housing pivot

1шт.

42

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

43

492-11031

LOCK WASHER,5/16"

2шт.

44

100398A1

LEVER ASSY.

rotor drive shift

1шт.

45

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

46

432-1216

COTTER PIN,3/16" x 1"

2шт.

47

1979265C1

BUSHING

shift lever

1шт.

49

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

50

439-5521

HEADED PIN,5/16" x 1 5/16"

headed, 5/16 x 1-5/16 inch

1шт.

51

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

52

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

53

1979327C1

SPACER

lever

1шт.

55

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

1шт.

57

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

60

1315328C4

GEARBOX

gear, rotor drive, parts list Figure 9B-8

1шт.

1315328C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed, For N.A. Only

1шт.

1315328C4C

CORE-ROTOR DRIVE

Return Number, For N.A. Only

1шт.

61

188272C1

ELBOW

90 degree, special, gear housing

1шт.

62

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

69

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

2шт.

70

186648C2

ROD

lever shaft control linkage

1шт.

74

1979564C1

SUPPORT

shift lever

1шт.

75

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

76

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

77

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 inch ID, control rod

1шт.

78

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE 3/4 (19) ID x 1-13/64 inch (46 mm) long

1шт.

S118466X

LARGE HOSE

HOSE,LARGE bulk, 1/2 (13) ID x 300 inch (7620 mm) long, see Ref. 32

1шт.
