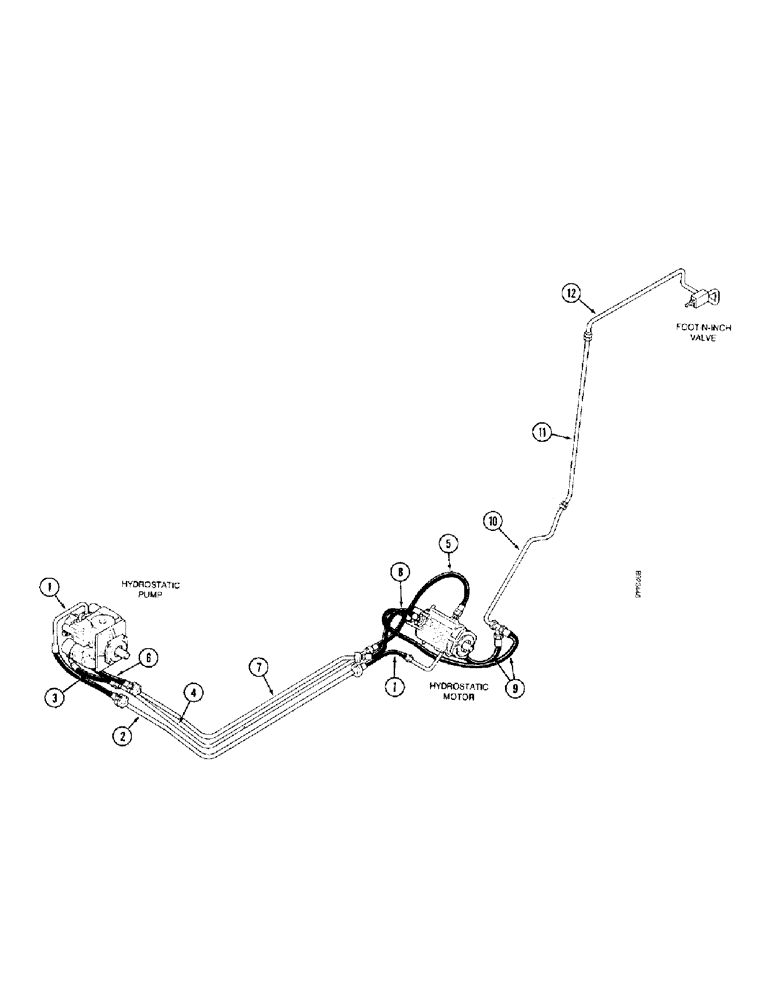

Запчасти Case IH 1688 (1-20) - PICTORIAL INDEX, SINGLE SPEED PROPULSION SYSTEM (00) - PICTORIAL INDEX
12
1
9
5
4
1
6
3
8
10
11
7
2
№
Артикул
Название
Примечание
Количество
1
Reverse Pressure Hose, Page 6-11
1шт.
2
Reverse Pressure Tube, Page 6-11
1шт.
3
Housing Drain Upper Hose, Page 6-11
1шт.
4
Case Drain Tube, Page 6-11
1шт.
5
Housing Drain Lower Hose, Page 6-11
1шт.
6
Forward Pressure Upper Hose, Page 6-11
1шт.
7
Forward Pressure Tube, Page 6-11
1шт.
8
Forward Pressure Lower Hose, Page 6-11
1шт.
9
Foot-N-Inch Hose, Page 6-17
1шт.
10
Foot-N-Inch Lower Tube, Page 6-17
1шт.
11
Foot-N-Inch Center Tube, Page 6-17
1шт.
12
Foot-N-Inch Upper Tube, Page 6-17
1шт.
Выбрано товаров: 12
