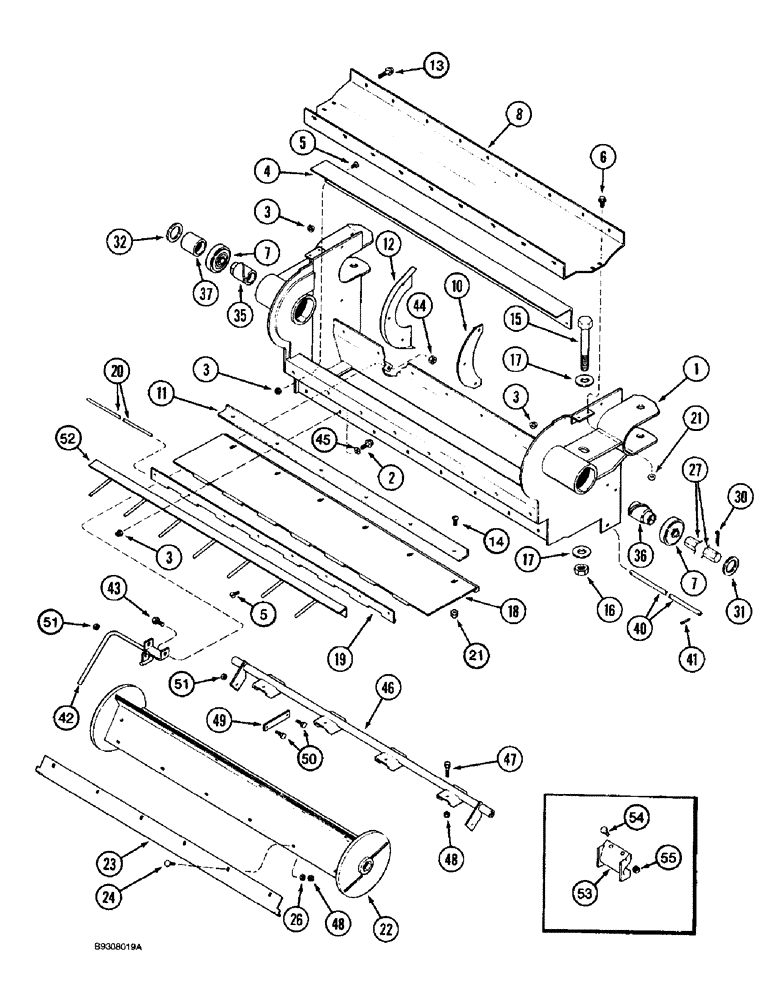

Запчасти Case IH 1688 (9A-38) - ROCK TRAP (13) - FEEDER

1

1327627C3

HOUSING

rock trap

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

28шт.

4

1320278C1

BRACKET

ANGLE wear

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

16шт.

6

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

4шт.

7

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

ball

2шт.

8

1327926C4

COVER

beater housing

1шт.

10

1320254C1

PLATE

backup seal

2шт.

11

1324881C1

ANGLE

SEAL

1шт.

12

195202C1

SEAL

feeder

2шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

6шт.

15

326-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 8

2шт.

16

232-41316

NUT,1"-8, GC

2шт.

17

396-31106

WASHER,1.06" ID x 2" OD x 0.22" Thk

flat, 1-1/16 x 2 x 7/32 inch, hardened

4шт.

1324908C1

DOOR

ASSY rock trap, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

DOOR trap, rock

1шт.

19

1320119C1

HINGE

door

1шт.

20

1320120C1

ROD

hinge

1шт.

21

231-5146

FLANGE NUT,3/8"-16

12шт.

22

1319832C1

BEATER

feed, trap

1шт.

23

1324437C1

EXTENSION

blade, beater

3шт.

23

1320922C2

BLADE

serrated

3шт.

24

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 NC x 1-1/2 inch

18шт.

26

492-11038

LOCK WASHER,3/8"

18шт.

27

1320129C2

SHAFT

beater

1шт.

30

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.

31

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

32

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

35

1320268C1

SPACER

sprocket, left hand

1шт.

36

1320269C1

SPACER

sprocket, right hand

1шт.

37

162172C1

SPACER

1-13/16 x 2-1/4 x 1-15/16 inch

1шт.

40

1320115C1

ROD

door latch

1шт.

41

432-1216

COTTER PIN,3/16" x 1"

2шт.

42

1324752C1

HANDLE

door, left hand

1шт.

43

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

44

231-4118

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

2шт.

45

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

8шт.

46

1324764C1

SUPPORT TUBE,999 mm Length

door, left hand

1шт.

47

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

hex, special, 3/8 NC x 1-1/2 inch

4шт.

48

425-106

NUT,3/8"-16, Cl 5

22шт.

49

1320128C1

LINK

connecting

2шт.

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

51

231-4116

NUT,3/8"-16, GB

hex, self-locking, 3/8 inch NC

2шт.

52

1320776C1

SUPPORT

ANGLE

1шт.

1957278C1

LATCH

KIT rock trap latch support, includes instructions, Includes: Ref. 53 - 55

1шт.

53

1324775C1

SUPPORT

latch, center

1шт.

54

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

55

232-4136

LOCK NUT,3/8"-16, GC

2шт.
