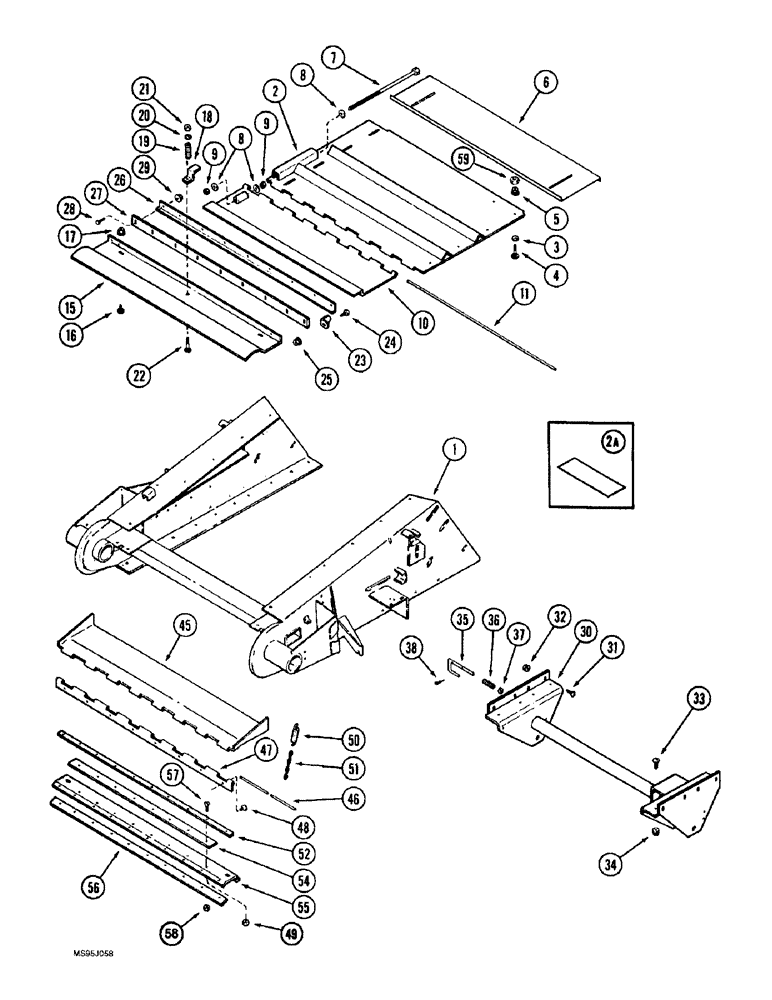

Запчасти Case IH 1688 (9A-30) - FEEDER COVERS AND LIFT BRACKET (13) - FEEDER

1

NSS

NOT SOLD SEPARAT

HOUSING feeder, parts list Figure 9A-26 Ref. 5

1шт.

2

186356A1

SHEET

COVER upper, hinged, includes anti-skid pad, 54-1/2 inch feeder, Includes: Ref. 2A

1шт.

2

186357A1

SHEET

COVER upper, hinged, includes anti-skid pad, 60 inch feeder, Includes: Ref. 2A

1шт.

2a

D80270

ANTI-SKID STRIP,635mm / 25 Inch

1шт.

3

195-81030

WASHER

flat, 17/32 x 1-1/2 x 3/16 inch

8-10шт.

4

415-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 8

BOLT carriage, 1/2 NC x 1-1/2 inch, grade 8

8-10шт.

5

131-946

FLANGE NUT,Flg, 1/2"-13, G8

large hex flange, 1/2 inch NC

8-10шт.

6

1321639C1

PLATE

COVER upper front

1шт.

7

1321395C1

BOLT,3/4" - 10 x 440mm

adjusting, level

1шт.

7

1321504C1

SCREW,440mm L, W/ 3/4" - 10 Nut

ROD adjusting, includes nut

1шт.

8

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.

9

425-1012

NUT,3/4"-10, G5

3шт.

10

180556C91

DOOR

feeder, includes decal, upper

1шт.

11

175907C1

ROD

hinge, door

1шт.

15

197523C3

COVER

feeder top

1шт.

16

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

2шт.

17

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self-locking, special, 1/2 inch NC, grade 8

2шт.

18

184645C1

CLIP

latch, door

1шт.

19

7422T

SPRING

latch, door

1шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT carriage, 3/8 NC x 2-1/4 inch, grade 2

1шт.

23

1322144C1

ANGLE

door stop

2шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

197527C2

ANGLE

support, feeder top seal

1шт.

27

634248R1

SEAL

SEAL rubber, 2-5/32 (55) x 46-1/4 inch (1176 mm) long

1шт.

28

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

6шт.

29

231-5146

FLANGE NUT,3/8"-16

6шт.

30

1541618C1

SUPPORT ASSY.

BRACKET lift, 54-1/2 inch feeder

1шт.

30

1541617C1

SUPPORT ASSY.

BRACKET lift, 60 inch feeder

1шт.

31

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT carriage, 1/2 NC x 1-1/4 inch, grade 8

8шт.

32

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self-locking, special, 1/2 inch NC, grade 8

8шт.

33

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

8шт.

34

231-5146

FLANGE NUT,3/8"-16

8шт.

35

197849C1

ROD

cylinder lift lock

1шт.

36

M296

SPRING

rod, lock

1шт.

37

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

38

432-88

COTTER PIN,1/8" x 1/2"

2шт.

45

193612C2

DOOR

lower, feeder

1шт.

46

175931C1

ROD

hinge, door

1шт.

47

193611C2

HINGE

feed plate

1шт.

48

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

8шт.

49

231-5146

FLANGE NUT,3/8"-16

8шт.

50

635503R1

SPRING,148.8mm Free Length

latch, lower door

2шт.

51

167570C1

CHAIN,203.2mm L

latch, lower door

2шт.

52

197526C1

SEALING STRIP

seal, lower door

1шт.

54

1319964C1

STRIP

spacing, support

1шт.

55

1319960C1

SUPPORT

feeder, lower rear

1шт.

56

1319962C1

SEAL

rear, feeder

1шт.

57

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

machine, flat Phillips, No. 10 NC x 3/4 inch

8шт.

58

196922C1

LOCK NUT

hex, self-locking, No. 10

8шт.

59

425-148

JAM NUT,Jam, 1/2"-13, G5

8-10шт.
