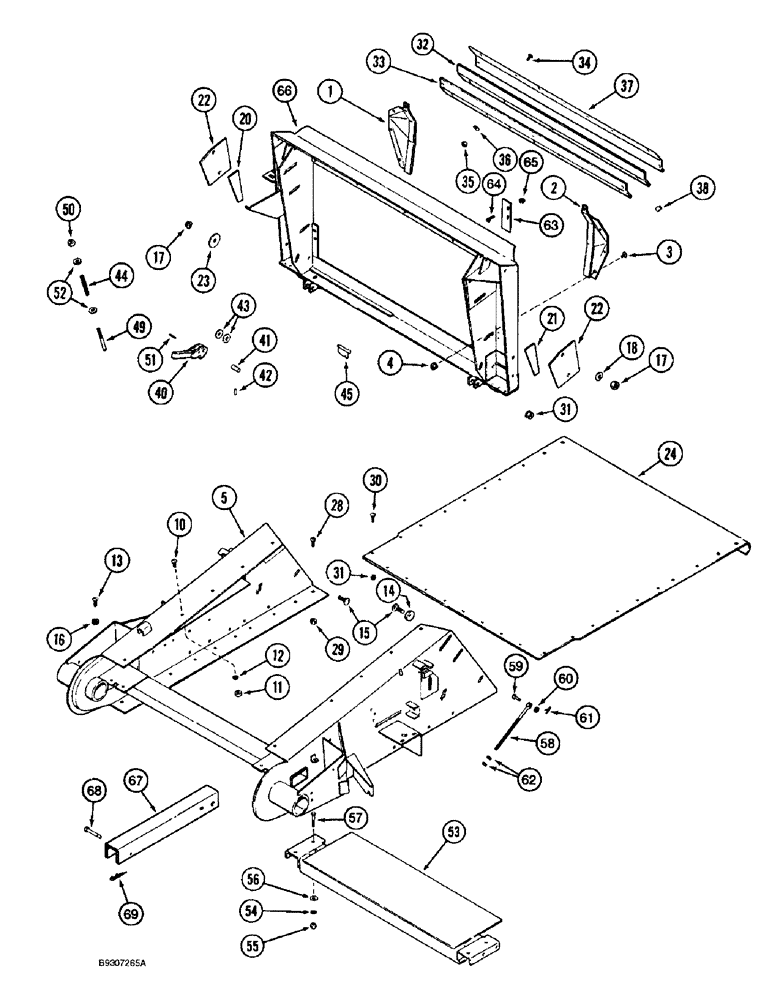

Запчасти Case IH 1688 (9A-26) - FEEDER HOUSING AND ADAPTER (13) - FEEDER

1

184853C1

DEFLECTOR

front, left hand

1шт.

2

184854C1

DEFLECTOR

front, right hand

1шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

5

120875A1

HOUSING

feeder, includes decal, 54-1/2 -- See Page 9H-06, 9H-08 For Retaining Blocks/Pins

1шт.

5

120876A1

HOUSING

feeder, includes decal, 60 inch -- See Page 9H-06, 9H-08 For Retaining Blocks/Pins

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

3шт.

14

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

square hole, 21/32 x 1-1/4 x 1/16 inch

6шт.

15

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 NC x 1-3/4 inch

6шт.

16

231-5146

FLANGE NUT,3/8"-16

3шт.

17

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

6шт.

18

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

4шт.

20

1327752C1

FOAM INSULATION

side, left hand, feeder

1шт.

21

1327753C1

FOAM INSULATION

side, right hand, feeder

1шт.

22

1327737C2

PLATE

COVER side, feeder

2шт.

23

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

24

1324572C1

PANEL

PLATE lower, 54-1/2 inch feeder

1шт.

24

1324574C1

PANEL

PLATE lower, 60 inch feeder

1шт.

24

1345455C1

PANEL

PLATE lower, perforated, 54-1/2 inch feeder

1шт.

28

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT carriage, 1/2 NC x 1-1/4 inch, grade 8

4шт.

29

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self-locking, special, 1/2 inch NC, grade 8

4шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

6-8шт.

31

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

hex flange, special, 3/8 inch NC

6-8шт.

32

109254A1

PLATE

STRIP feeder drum

1шт.

33

1319473C1

COVER

COVER feeder, upper

1шт.

34

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

35

232-4115

LOCK NUT,5/16"-18, GC

5шт.

35

231-5345

FLANGE NUT,Flg, 5/16"-18

hex flange, self-locking, 5/16 inch NC

7шт.

36

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

5шт.

36

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

7шт.

37

1319475C1

COVER

adapter, feeder

1шт.

38

1321640C1

GROMMET

cover, adapter

2шт.

40

179024C1

HINGE

HANDLE lock, latch

2шт.

41

177141C1

PIN,15.88mm OD x 41mm L

pivot, handle

2шт.

42

138-2005

PIN,1/4" x 1", Coiled

2шт.

43

495-81175

WASHER,21/32" x 1" x .120"

flat, 21/32 x 1 x 7/64 inch

4шт.

44

367833R1

SPRING

rod, latch

2шт.

45

1338021C1

PIN,7.94mm OD

retaining

2шт.

49

177138C1

ROD

latch

2шт.

50

231-1445

NUT,5/16"-18, GB

2шт.

51

18518R1

LOCK PIN,1/8" x 1", Slotted

2шт.

52

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

53

1345332C1

SUPPORT

reinforcement

1шт.

54

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

55

425-108

NUT,1/2" - 13, Gr 5

4шт.

56

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

57

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

58

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYE adjusting

2шт.

59

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

headed, 1/2 x 2-1/4 inch

2шт.

60

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

61

432-1216

COTTER PIN,3/16" x 1"

2шт.

62

329-108

NUT,1/2"-13, G8

4шт.

63

181646C1

SUPPORT

PLATE face wear, rice

2шт.

64

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

4шт.

65

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

66

1989331C2

ADAPTER

feeder

1шт.

67

197554C3

CHANNEL

lift cylinder lock

1шт.

68

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

3/8 x 3-1/4 inch, grade 2

1шт.

69

586591R1

COTTER PIN

hair, 1/8 inch

1шт.
