Запчасти Case IH 1688 (9A-22) - FEEDER, JACKSHAFT DRIVE (13) - FEEDER

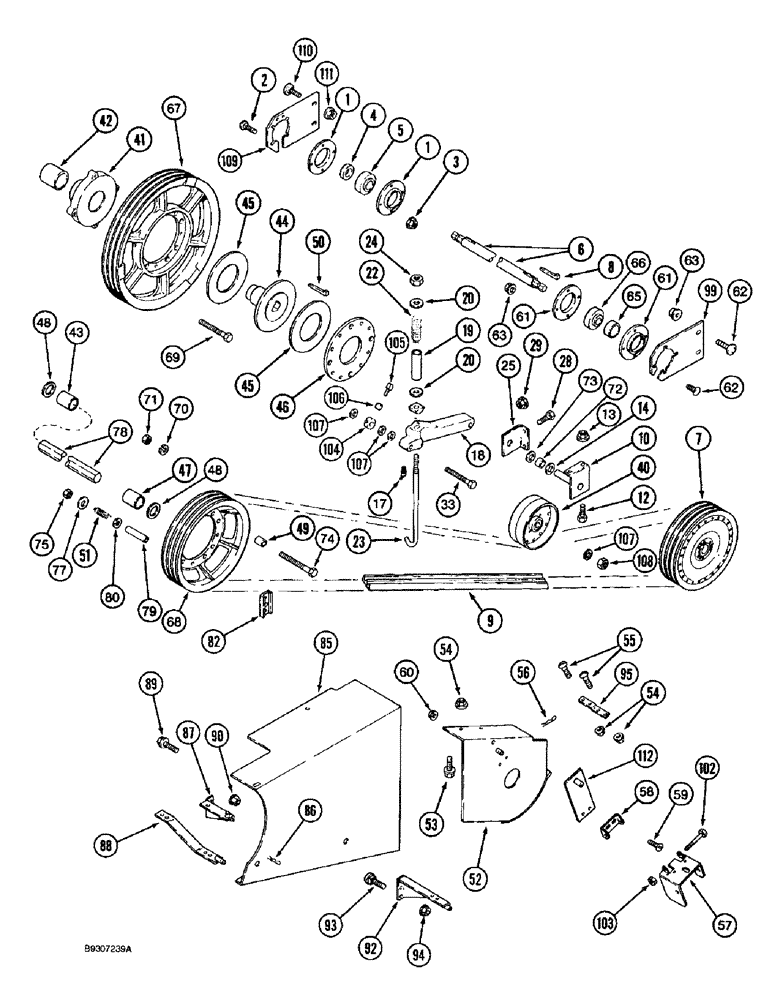

Схема запчастей Case IH 1688 - (9A-22) - FEEDER, JACKSHAFT DRIVE (13) - FEEDER
54
59
56
72
43
88
75
17
44
29
78
73
2
60
55
47
82
3
63
112
50
104
57
53
5
109
89
79
8
23
102
13
93
18
111
68
20
94
105
51
77
63
62
6
48
108
9
62
1
58
80
14
71
45
48
10
49
106
28
99
52
86
46
70
22
42
107
69
12
7
61
41
110
95
103
4
65
19
92
61
107
74
54
1
33
24
66
107
85
90
45
87
67
40
25
20

Артикул

Название

Примечание

Количество

1

663562R1

FLANGE

bearing, left hand

2шт.

1

1307583C1

FLANGED BEARING

bearing, left hand, Serial Range: optional-663562R1

2шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

4

455112R11

COLLAR

locking, bearing

1шт.

5

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

ball, jackshaft, left hand

1шт.

6

1319483C2

SHAFT

cross, jackshaft

1шт.

7

1321645C1

PULLEY

driven, 13-1/2 inch OD, feeder

1шт.

8

Q1376

KEY

square tapered, 3/8 x 2-1/4 inch

1шт.

9

1308489C2

V-BELT,22.33 mm W x 3990.69 mm L

Drive, for 60 inch Feeder

1шт.

9

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Drive, for 54-1/2 inch feeder

1шт.

10

182322C1

SUPPORT

pivot, idler

1шт.

12

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 inch

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

18

1321982C1

ARM

tightener

1шт.

19

176581C1

SPACER

spring, adjusting bolt

1шт.

20

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

flat, 17/32 x 1-3/4 x 3/32 inch

2шт.

22

PO3A

SPRING

tightener bolt

1шт.

23

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

idler draw

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

182323C1

SUPPORT

idler

1шт.

28

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 inch

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

33

135260A1

BOLT,Hex W/ Timing Mark, 5/8" - 11 x 5", Gr 5

BOLT hex, special, 5/8 NC x 5 inch

1шт.

40

176579C1

IDLER

drive tightener, 8 inch OD, replaces 1765791C1

1шт.

41

1305220C91

HUB ASSY.

clutch, outer, Includes: Ref. 42

1шт.

42

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

hub

1шт.

43

162172C1

SPACER

1-13/16 x 2-1/4 x 1-15/16 inch, feeder pivot shaft, left hand

1шт.

44

1305154C2

HUB

slip clutch

1шт.

45

181579C1

DISC

DISC friction, clutch

2шт.

46

185955C1

PLATE

friction

1шт.

47

1305393C1

SPACER

2-35/64 inch long, hub, clutch

1шт.

48

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

48

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

49

1305375C1

SPACER

drive lug

4шт.

50

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

51

1305692C1

SPRING

slip clutch, 10 with rock trap

8-10шт.

52

1345356C2

HOUSING

SHIELD jackshaft drive, front

1шт.

53

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

55

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

4шт.

56

480523R1

HAIR PIN COTTER

1шт.

57

1345360C1

GUARD

SHIELD jackshaft end, right hand

1шт.

57

1345357C1

GUARD

SHIELD jackshaft end, left hand

1шт.

58

1345199C1

SUPPORT

HINGE shield

2шт.

59

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

60

231-5146

FLANGE NUT,3/8"-16

4шт.

61

619333R1

FLANGED BEARING

bearing, right hand

2шт.

62

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

1шт.

63

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

65

664598R11

COLLAR

lock, bearing, replaces 1977006C1

1шт.

66

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

ball, jackshaft, right

1шт.

66

664596R91

BEARING,38.1mm ID x 90mm OD x 25mm W

Used With Upgraded 4.5 Feeder

1шт.

67

1305297C1

PULLEY

driven, 22-9/16 inch OD, see Figure 9A-18

1шт.

68

1305288C1

PULLEY

drive, 16-11/16 inch OD, feeder

1шт.

69

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

70

492-11038

LOCK WASHER,3/8"

4шт.

71

329-106

NUT,3/8"-16, G8

4шт.

72

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

1шт.

73

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch, replaces 151670C1

1шт.

74

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

hex, special, 3/8 x 6 inch, grade 8

8шт.

75

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

8шт.

77

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

78

187208C2

ROD

SHAFT drum, feeder, see Figure 9A-34

1шт.

79

1305370C3

SPACER

spring clutch

8шт.

80

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch

8шт.

81

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

flat, 1-25/32 x 2-1/2 x 7/64 inch, not shown

5шт.

82

1315316C1

SUPPORT

spring, slip clutch, with rock trap

2шт.

85

1321883C1

GUARD

SHIELD drive, 60 inch feeder, jackshaft, rice

1шт.

85

1321866C1

GUARD

SHIELD jackshaft drive, 54-1/2 inch feeder, jackshaft, grain

1шт.

86

480523R1

HAIR PIN COTTER

4шт.

87

1327780C1

SUPPORT

shield, upper rear

1шт.

88

1321851C1

SUPPORT

shield, lower rear

1шт.

89

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 inch

2шт.

90

231-5146

FLANGE NUT,3/8"-16

2шт.

92

1321878C1

SUPPORT

shield, lower front

1шт.

93

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

94

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

95

1321880C1

SUPPORT

shield, front

1шт.

99

1321629C2

SUPPORT

jackshaft bearing, right hand

1шт.

101

194652C1

PIVOT

rod

1шт.

102

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

BOLT hex, 1/4 NC x 4-1/2 inch

2шт.

103

231-4144

NUT,1/4"-20, GB

2шт.

104

1345410C1

BUSHING,16.7mm ID x 35mm OD x 15mm L

pulley, 17 x 35 x 15 mm

1шт.

105

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

106

425-105

NUT,5/16"-18, G5

2шт.

107

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 inch

4шт.

108

232-41110

NUT,5/8"-11, GC

1шт.

109

1957434C1

SUPPORT

jackshaft bearing, left hand

1шт.

110

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

2шт.

111

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

112

1957636C1

HOLDER

BRACKET shield retainer

1шт.
