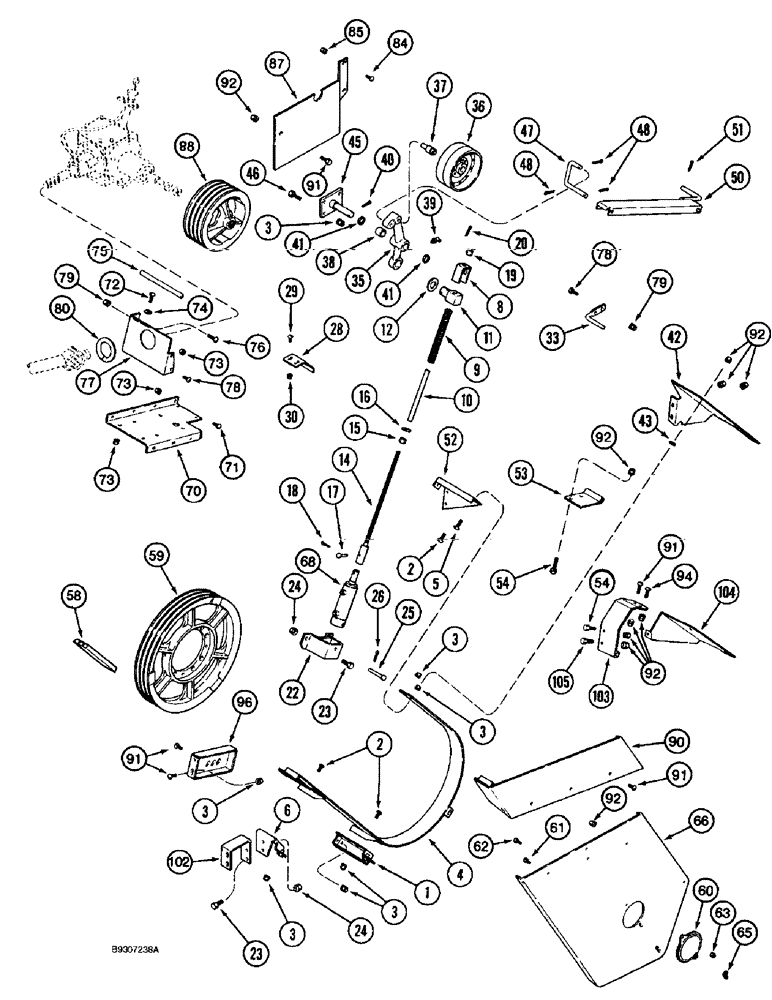

Запчасти Case IH 1688 (9A-18) - FEEDER DRIVE (13) - FEEDER

1

188043C2

SUPPORT

lower belt guard

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

1315088C2

GUARD

belt, with rock trap

1шт.

4

194499C2

GUIDE

WRAPPER belt guard

1шт.

5

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

1шт.

6

188288C1

SUPPORT

belt guard, rear

1шт.

8

194357C2

CHANNEL

CLIP tightener, special

1шт.

9

PO23

SPRING

tightener rod

1шт.

10

194356C1

TUBE

SPACER spring rod

1шт.

11

186890C4

PIVOT

spring rod, replaces 186890C3

1шт.

12

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

flat, 1-17/32 x 2-1/2 x 3/64 inch

1шт.

14

194216C2

ROD

tightener, feeder drive

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

1шт.

16

495-81163

WASHER,17/32" x 1 1/2" x .120"

flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

17

23304R1

CLEVIS PIN,3/8" x 1 9/16"

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

1шт.

20

432-1240

COTTER PIN,3/16" x 2 1/2"

1шт.

22

194369C2

SUPPORT

cylinder

1шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

25

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

3/8 x 3-1/4 inch, grade 2

1шт.

26

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

28

186513C1

SUPPORT

BRACKET upper

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

188316C1

ROD

belt trap

1шт.

194494C93

ARM

idler, Includes: Ref. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

LEVER idler

1шт.

36

174757C1

PULLEY

idler, 8 inch OD

1шт.

37

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

pulley

1шт.

38

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

1 ID x 1-1/4 OD x 1-1/8 inch wide, lever

2шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

40

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

41

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

42

1322368C1

COVER

belt, upper

1шт.

43

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

45

185414C2

SUPPORT

pivot

1шт.

46

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

4шт.

47

192111C1

ROD

retainer

1шт.

48

432-1216

COTTER PIN,3/16" x 1"

3шт.

50

194497C1

GUIDE

retainer, belt, without rock trap

1шт.

50

1989325C1

SUPPORT

GUIDE retainer, belt, with rock trap

1шт.

51

432-1216

COTTER PIN,3/16" x 1"

1шт.

52

188323C2

SUPPORT

belt guard, upper

1шт.

53

194364C2

HINGE

pivot

1шт.

54

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

BOLT hex flange, special, 3/8 NC x 1-1/2 inch

3шт.

58

194528C1

BELT,0.879" W x 143.37" L, 3 Ribs

Feeder drive, OC

1шт.

58

1315074C1

V-BELT,22.23 mm W x 4029.32 mm L

Drive, Feeder, with Rock Trap

1шт.

59

1305297C1

PULLEY

driven, 22-9/16 inch OD, feeder

1шт.

60

188315C1

DOOR

access, belt drive cover

1шт.

61

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

1шт.

62

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

63

231-1444

NUT,1/4"-20, GB

1шт.

65

126177

WING NUT

1/4 inch NC

1шт.

66

183025C92

GUARD

SHIELD belt, includes decal

1шт.

68

133405C92

CYLINDER

ASSY 2 (51) ID x 2-1/2 inch (63.5 mm) stroke, feeder, parts list Figure 8-74

1шт.

68

87337239R

REMAN-HYD CYLINDER

1688 CASE IH AXIAL-FLOW COMBINE, Assy., 2 (51) ID x 2-1/2 inch (63.5 mm) stroke, Feeder (1/93-12/94), Reman for New PN 133405C92

1шт.

68

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

70

191329C1

SUPPORT

gear housing

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

5шт.

72

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

73

231-5146

FLANGE NUT,3/8"-16

7шт.

74

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

flat, 17/32 x 1 x 1/16 inch

4шт.

75

191497C1

SEALING STRIP

SEAL 10-5/8 inch (270 mm) long

1шт.

76

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

self-locking, truss head Phillips, special, 3/8 NC x 1 inch

2шт.

77

191399C1

SUPPORT

gear housing rear

1шт.

78

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

7шт.

79

231-5146

FLANGE NUT,3/8"-16

1шт.

80

191496C1

SEALING STRIP

SEAL 11-7/8 inch (300 mm) long

1шт.

84

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch, if equipped

2шт.

85

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

If equipped

2шт.

87

186490C1

SUPPORT

shield, upper, if equipped

1шт.

88

193999C1

PULLEY

drive, 12 inch OD

1шт.

90

1315085C1

GUARD

SHIELD extension, belt, with rock trap

1шт.

91

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

92

231-5146

FLANGE NUT,3/8"-16

1шт.

94

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

1шт.

96

1315083C1

SUPPORT

shield lower extension, with rock trap

1шт.

102

1315084C1

CHANNEL

belt shield, rear extension, with rock trap

1шт.

103

1989333C3

SUPPORT

belt guide, upper, with rock trap

1шт.

104

1989329C1

COVER

belt, upper, with rock trap

1шт.

105

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.
