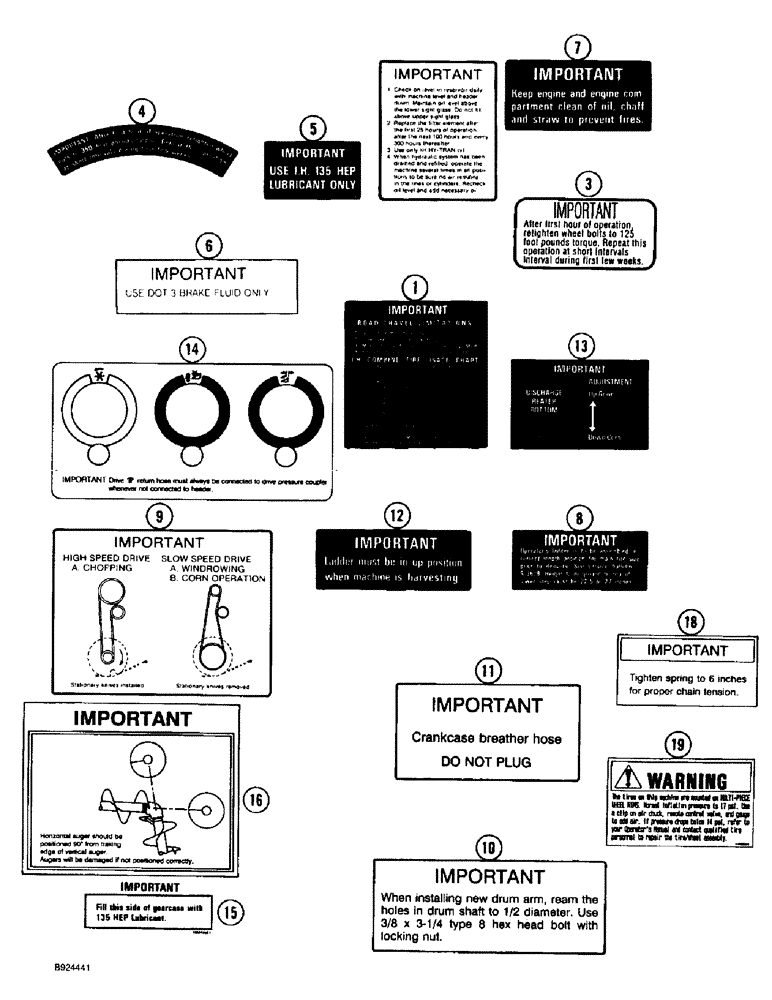

Запчасти Case IH 1688 (9H-36) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS

1

1321322C4

DECAL

important, road travel limitations

1шт.

1

1321324C2

DECAL

important, road travel limitations (French)

1шт.

1

1321323C2

DECAL

important, road travel limitations (Spanish)

1шт.

1

1321325C2

DECAL

important, road travel limitations (German)

1шт.

2

103655A1

DECAL

important, clean grain elevator, not shown

1шт.

2

105946A1

DECAL

important, clean grain elevator (French)

1шт.

2

105947A1

DECAL

important, clean grain elevator (Spanish)

1шт.

2

105948A1

DECAL

important, clean grain elevator (German)

1шт.

3

185427C1

DECAL

important, after first hour of operation, retighten wheel bolts to 125 foot pounds torque

1шт.

3

1300112C1

DECAL

important, after first hour of operation, retighten wheel bolts to 125 foot pounds torque (French)

1шт.

3

1300351C1

DECAL

important, after first hour of operation, retighten wheel bolts to 125 foot pounds torque (Spanish)

1шт.

3

1300350C1

DECAL

important, after first hour of operation, retighten wheel bolts to 125 foot pounds torque (German)

1шт.

4

1970399C2

DECAL

important, after first hour of operation, retighten wheel nuts to 350 foot pounds torque

2шт.

4

1970415C1

DECAL

important, after first hour of operation, retighten wheel nuts to 350 foot pounds torque (French)

2шт.

4

1970416C1

DECAL

important, after first hour of operation, retighten wheel nuts to 350 foot pounds torque (Spanish)

2шт.

4

1970414C1

DECAL

important, after first hour of operation, retighten wheel nuts to 350 foot pounds torque (German)

2шт.

5

186051C1

PRODUCT GRAPHIC

DECAL important, use I.H. 135 HEP lubricant only

1шт.

5

1300115C1

DECAL

important, use I.H. 135 HEP lubricant only (French)

1шт.

5

1300347C1

DECAL

important, use I.H. 135 HEP lubricant only (Spanish)

1шт.

5

1300346C1

DECAL

important, use I.H. 135 HEP lubricant only (German)

1шт.

6

1347067C1

DECAL

important, DOT 3 brake fluid

1шт.

7

173881C1

DECAL

DECAL important, keep engine and engine compartment clean, English

1шт.

7

1300039C1

DECAL

important, keep engine and engine compartment clean (French)

1шт.

7

1300395C1

DECAL

important, keep engine and engine compartment clean (Spanish)

1шт.

7

1300394C1

DECAL

important, keep engine and engine compartment clean (German)

1шт.

8

1095361R1

DECAL

important, operator's ladder is to be assembled in correct length position

1шт.

8

1300133C1

DECAL

important, operator's ladder is to be assembled in correct length position (French)

1шт.

8

1300355C1

DECAL

important, operator's ladder is to be assembled in correct length position (Spanish)

1шт.

8

1300354C1

DECAL

important, operator's ladder is to be assembled in correct length position (German)

1шт.

9

1302721C2

DECAL

important, high speed drive/slow speed drive

2шт.

9

1300398C2

DECAL

important, high speed drive/slow speed drive (French)

1шт.

9

1300400C2

DECAL

important, high speed drive/slow speed drive (Spanish)

1шт.

9

1300399C2

DECAL

important, high speed drive/slow speed drive (German)

1шт.

10

1305104C2

DECAL

important, when installing new drum arm, ream the hole, used with 1338291C3 and 1338292C3 arms only

1шт.

11

1979123C2

DECAL

important, crankcase breather hose

1шт.

11

1979125C2

DECAL

important, crankcase breather hose (French)

1шт.

11

1979126C2

DECAL

important, crankcase breather hose (Spanish)

1шт.

11

1979124C2

DECAL

important, crankcase breather hose (German)

1шт.

12

186507C1

PRODUCT GRAPHIC

DECAL important, ladder must be in up position

1шт.

12

1300118C1

DECAL

important, ladder must be in up position (French)

1шт.

12

1300345C1

DECAL

important, ladder must be in up position (Spanish)

1шт.

12

1300344C1

DECAL

important, ladder must be in up position (German)

1шт.

13

185441C1

PRODUCT GRAPHIC

DECAL important, discharge beater bottom

2шт.

13

1300113C1

DECAL

important, discharge beater bottom (French)

2шт.

13

1300387C1

DECAL

important, discharge beater bottom (Spanish)

2шт.

13

1300386C1

DECAL

important, discharge beater bottom (German)

2шт.

14

1989604C1

DECAL

important, drive return hose must always be connected to drive pressure coupler (English)

1шт.

14

1989607C1

DECAL

important, drive return hose must always be connected to drive pressure coupler (French)

1шт.

14

1989605C1

DECAL

important, drive return hose must always be connected to drive pressure coupler (Spanish)

1шт.

15

1989469C1

DECAL

important, fill this side of gearcase with 135 HEP lubricant

1шт.

15

1989643C1

DECAL

important, fill this side of gearcase with 135 HEP lubricant (French)

1шт.

15

1989645C1

DECAL

important, fill this side of gearcase with 135 HEP lubricant (Spanish)

1шт.

15

1989644C1

DECAL

important, fill this side of gearcase with 135 HEP lubricant (German)

1шт.

16

1989314C1

DECAL

important, horizontal auger should be positioned 90 degrees from trailing edge of vertical auger (English)

1шт.

16

1989648C1

DECAL

important, horizontal auger should be positioned 90 degrees from trailing edge of vertical auger (French)

1шт.

16

1989650C1

DECAL

important, horizontal auger should be positioned 90 degrees from trailing edge of vertical auger (Spanish)

1шт.

16

1989649C1

DECAL

important, horizontal auger should be positioned 90 degrees from trailing edge of vertical auger (German)

1шт.

17

1347323C1

PRODUCT GRAPHIC

DECAL important, check on level in reservoir daily

1шт.

17

1347326C1

PRODUCT GRAPHIC

DECAL important, check on level in reservoir daily (French)

1шт.

17

1347327C1

DECAL

SPARE PART important, check on level in reservoir daily (Spanish)

1шт.

17

1347324C1

DECAL

SPARE PART important, check on level in reservoir daily (German)

1шт.

18

105951A1

DECAL

important, tighten spring to 6 inches for proper chain tension

1шт.

18

105952A1

DECAL

important, tighten spring to 6 inches for proper chain tension (French)

1шт.

18

105953A1

DECAL

important, tighten spring to 6 inches for proper chain tension (Spanish)

1шт.

18

105954A1

DECAL

important, tighten spring to 6 inches for proper chain tension (German)

1шт.

19

112024A1

DECAL

warning, the tires on this machine are mounted on multi-piece rims

2шт.
