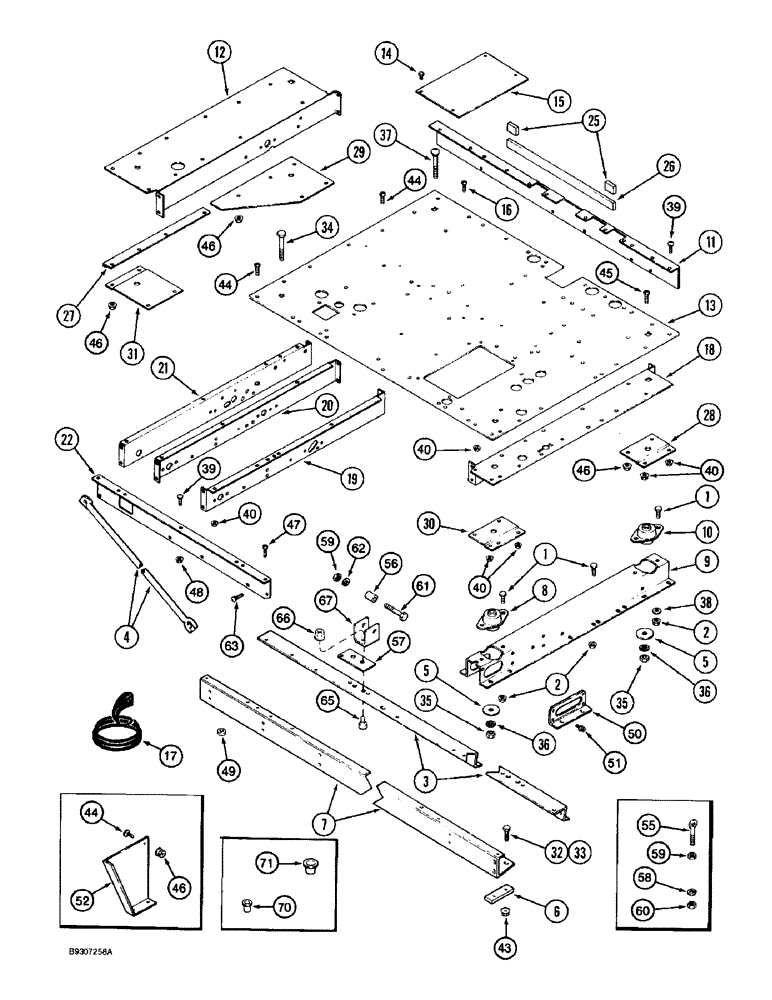

Запчасти Case IH 1688 (9H-28) - OPERATORS PLATFORM (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
2
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
1шт.
3
195522C5
ANGLE
SUPPORT operators platform, front mounting
1шт.
4
187645C2
ROD
operators platform extension
1шт.
5
196591C1
WASHER
flat, special
4шт.
6
193428C1
BAR
rear mounting channel, 5/8 inch
2шт.
7
193427C3
SUPPORT
operators platform, rear mounting
1шт.
8
196950C2
MOUNTING PARTS
INSULATOR vibration
2шт.
9
195507C6
SUPPORT
operators platform, side
2шт.
10
117722C4
INSULATOR
vibration, front
2шт.
11
1327564C2
SUPPORT
operators platform, front
1шт.
12
195520C3
SUPPORT
operators platform, left
1шт.
13
1321937C4
PLATFORM
operators
1шт.
14
276-1478
SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"
self-tapping, hex head, 1/4 NC x 1/2 inch
4шт.
15
193029C2
PLATE
brake access rear
1шт.
16
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
11шт.
17
123565A1
SEAL ASSY.
TRIM edge, 9-1/2 inch (242 mm) long, cut from 1330108CX bulk, see this Figure
1шт.
18
195518C8
SUPPORT
operators platform, right
1шт.
19
195519C6
SUPPORT
operators platform, right center
1шт.
20
195521C4
SUPPORT
operators platform, center
1шт.
21
195557C7
SUPPORT
operators platform, left center
1шт.
22
195516C4
SUPPORT
operators platform, rear
1шт.
25
187884C1
SEALING STRIP,50mm L
cab sill to front support
2шт.
26
187885C1
SEALING STRIP
SEAL cab sill to front support
1шт.
27
183680C1
ANGLE
stiffener, left
1шт.
28
183668C2
PLATE
platform, right front
1шт.
29
183669C2
PLATE
platform, left front
1шт.
30
183678C1
PLATE
platform, right rear
1шт.
31
183679C1
PLATE
platform, left rear
1шт.
32
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
6шт.
33
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
10шт.
35
232-41112
NUT,3/4"-10, GC
4шт.
36
492-11075
LOCK WASHER,3/4"
3/4"
4шт.
37
413-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
2шт.
38
495-81085
WASHER,1.16" ID x 1.62" OD x 0.06" Thk
flat, 1-5/32 x 1-5/8 x 3/64 inch
4шт.
39
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
20шт.
40
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
32шт.
41
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch, not shown
4шт.
42
496-21053
WASHER,17/32" x 1 1/16" x .134"
Hardened, Not shown
4шт.
43
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
4шт.
44
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
slotted truss head, special, 3/8 NC x 3/4 inch
11шт.
45
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
Special
2шт.
46
231-5146
FLANGE NUT,3/8"-16
31шт.
47
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
slotted truss head, 5/16 NC x 1 inch
1шт.
48
496-21053
WASHER,17/32" x 1 1/16" x .134"
Hardened, Not shown
2шт.
49
HA4457
SPACER
1/2 x 5/8 inch
2шт.
50
1301442C1
SUPPORT
BRACKET platform side
4шт.
51
409-7612
BOLT,3/8"-16 x 1.09" OAL
16шт.
51
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
4шт.
52
196993C2
SUPPORT
platform front angle
1шт.
55
165648C2
BOLT,3/4" - 10 x 4 1/2"
EYE leveling, if equipped
4шт.
56
1994749C1
SPACER
3/4 x 2-23/64 inch
2шт.
57
196592C3
BAR
platform spacer, leveling
2шт.
58
492-11075
LOCK WASHER,3/4"
3/4"
6шт.
59
425-1012
NUT,3/4"-10, G5
6шт.
60
425-1412
JAM NUT,Jam, 3/4"-10, G5
hex, jam, 3/4 inch NC
4шт.
61
413-1268
BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5
BOLT hex, 3/4 NC x 4-1/4 inch
2шт.
62
493-41078
LOCK WASHER,Ext Tooth, 3/4"
external tooth lock, 3/4 inch
2шт.
63
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
10шт.
65
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
2шт.
66
231-51410
FLANGE NUT,Flg, USR, 5/8"-11
2шт.
67
NSS
NOT SOLD SEPARAT
CHANNEL deck mount
2шт.
70
1345349C1
PLUG,Cap, .240" OD
plastic, 7/32 inch hole
4шт.
71
1345351C1
PLUG,Cap, .428" OD
11/32 inch hole
3шт.
1330108CX
SEAL,304.8mm L
TRIM edge, bulk, 600 inch (15240 mm) long, see Ref. 17
1шт.
Выбрано товаров: 66
