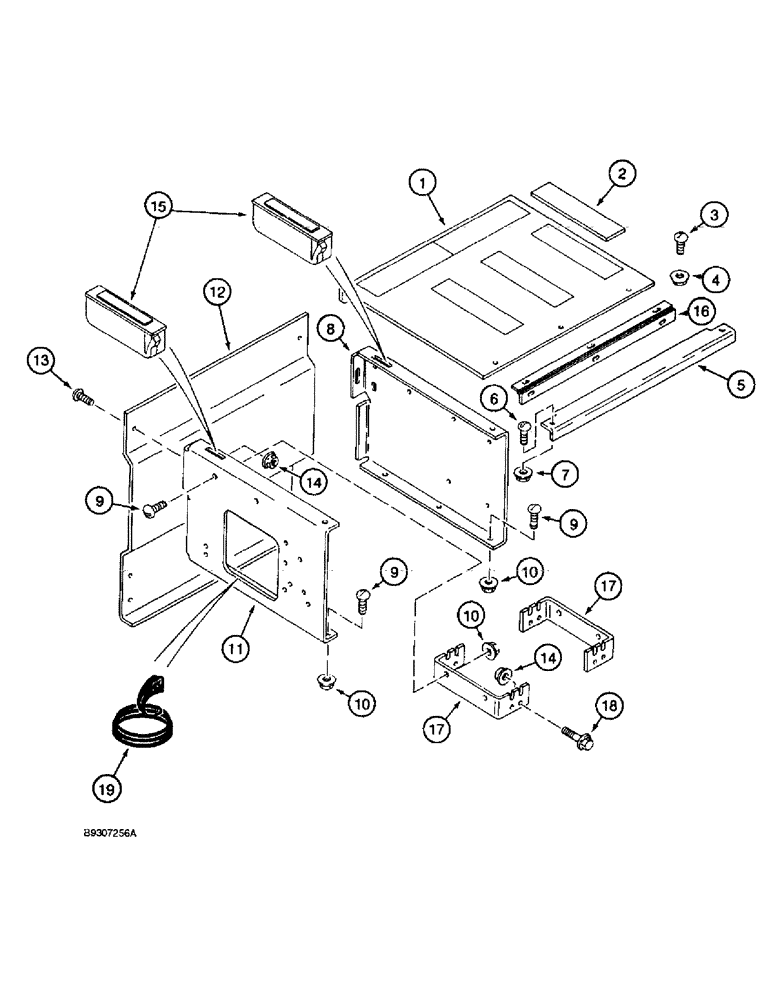

Запчасти Case IH 1688 (9H-24) - VALVE CONTROL BOX (12) - CHASSIS

1

1989344C2

COVER ASSY

valve box

1шт.

2

D55216

PAD,2" x 9"

5шт.

3

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

6шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

5

1989346C1

CHANNEL

valve box, top

1шт.

6

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

8

1338305C3

SUPPORT

valve box, front

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

7шт.

10

231-5146

FLANGE NUT,3/8"-16

7шт.

11

1338306C3

SHEET

SUPPORT valve box, rear

1шт.

12

1338304C2

SHEET ASSY.

SUPPORT valve box, left hand

1шт.

13

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

15

1989553C1

CATCH

magnetic

2шт.

16

1989347C1

HINGE

valve box support

1шт.

17

1989373C3

SUPPORT

valve stack

2шт.

18

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

19

1989613C1

SEAL

TRIM edge, 20-1/2 inch (521 mm) long, cut from 1330108CX bulk, see this Figure

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk, 600 inch (15240 mm) long, see Ref. 19

1шт.
