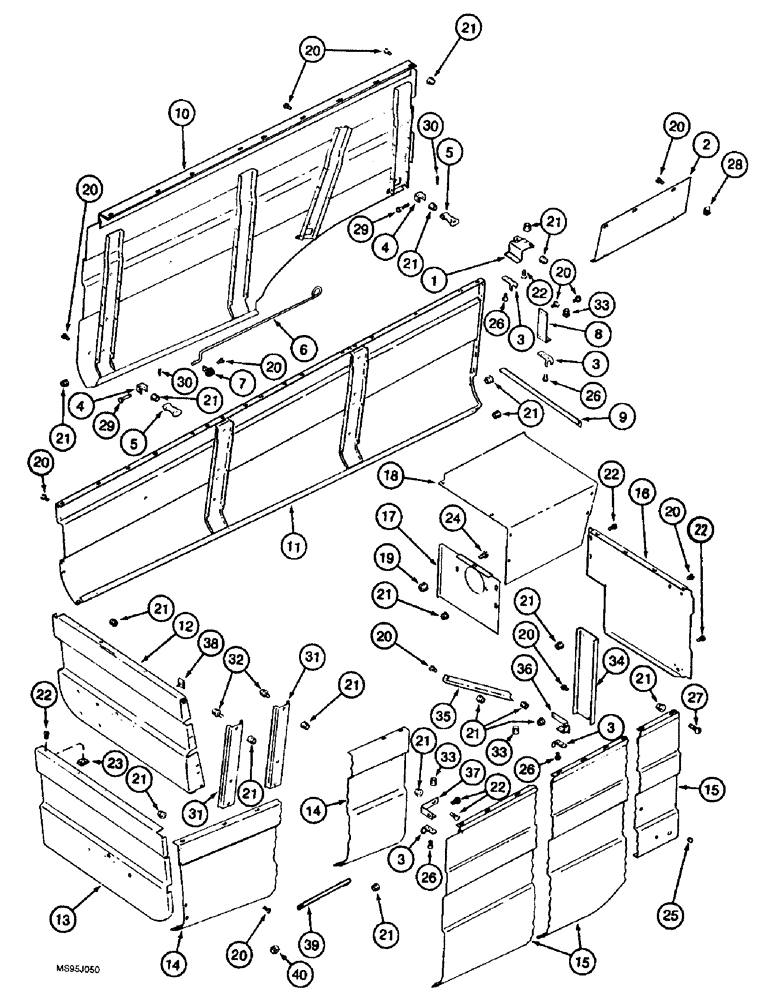

Запчасти Case IH 1688 (9H-22) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

1

182834C2

SUPPORT

latch, left hand front

1шт.

2

186559C1

COVER

SUPPORT cab, lower right hand front

1шт.

3

764071C1

BRACKET

HOOK latch

4шт.

4

188103C1

BRACKET

BRACKET hood anchor

4шт.

5

494307C1

LATCH

hold down

4шт.

6

186570C1

ROD

lower door

2шт.

7

363660R1

CLIP

CLAMP trim panel brace

2шт.

8

188185C1

SUPPORT

left hand trim rear catch

1шт.

9

194641C1

ANGLE

shield support

1шт.

10

139774A3

HOOD

DOOR left hand, forward, replaces 191152C1 support

1шт.

11

1347133C1

SHEET ASSY.

SHIELD rear trim, left hand

1шт.

12

193811C4

SUPPORT

tail lamp, left hand

1шт.

13

193812C4

SUPPORT

tail lamp, right hand, replaced by 193812C5

1шт.

13a

193812C5

SHEET

SUPPORT tail lamp, right hand, not shown, replaces 193812C4

1шт.

14

194625C4

GUARD ASSY.

SHIELD rear trim, right hand

1шт.

15

139775A3

HOOD

DOOR right hand, forward, replaces 191153C2 support

1шт.

16

191146C2

SUPPORT

lower right hand front

1шт.

17

194491C4

SUPPORT

gear case, front

1шт.

18

191141C1

SUPPORT

feeder drive upper

1шт.

19

231-5146

FLANGE NUT,3/8"-16

8шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

23

488837C1

SPRING NUT

speed, 5/16 inch NC

6шт.

24

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

25

147483C1

PLUG

button

8шт.

26

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

8шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

28

488837C1

SPRING NUT

speed, 5/16 inch NC

3шт.

29

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

4шт.

30

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

31

1319563C1

SUPPORT

handle

2шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

33

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

34

194640C2

CONDUIT

CHANNEL shield support, right hand

1шт.

35

194639C1

ANGLE

right hand front shield support

1шт.

36

1345118C1

SUPPORT

BRACKET front right hand latch

1шт.

37

188097C1

SUPPORT

BRACKET rear right hand latch

1шт.

38

150100C1

SPRING NUT

Tinnerman, special

3шт.

39

1251832C2

HANDLE

assist

1шт.

40

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
