(9H-16) - SERVICE DECK HAND RAILS

Запчасти Case IH 1688 (9H-16) - SERVICE DECK HAND RAILS (12) - CHASSIS

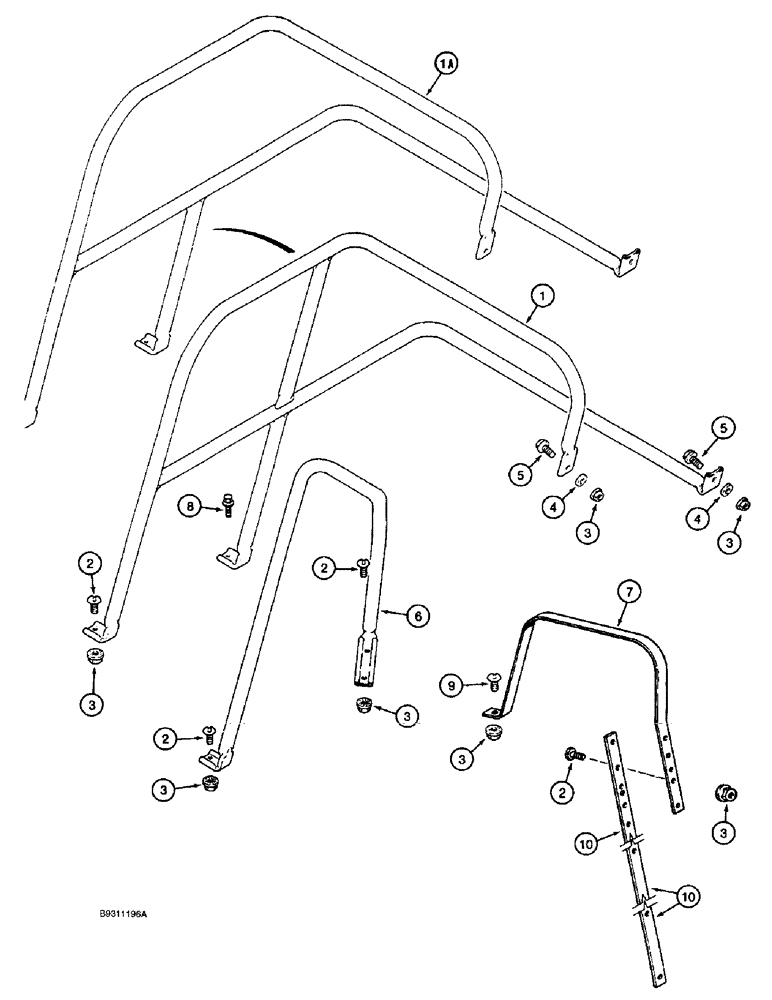

Схема запчастей Case IH 1688 - (9H-16) - SERVICE DECK HAND RAILS (12) - CHASSIS
2
6
8
10
4
3
1a
3
3
5
4
10
2
2
9
2
1
5
3
3
3
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

193089C1

RAIL ASSY.

hand, service deck, left hand, if used

1шт.

1a

193089C2

GRAB RAIL

hand, service deck, left hand, if used

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

7шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

4

495-81121

WASHER,.344" x 1 1/2" x .060"

flat, 11/32 x 1-1/2 x 1/16 inch

2шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

6

1541806C2

GRAB RAIL

hand, service deck right hand

1шт.

7

1338059C2

RAIL

hand, service deck, to grain tank

1шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

9

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

1шт.

10

1338058C3

BAR

engine deck support

1шт.
