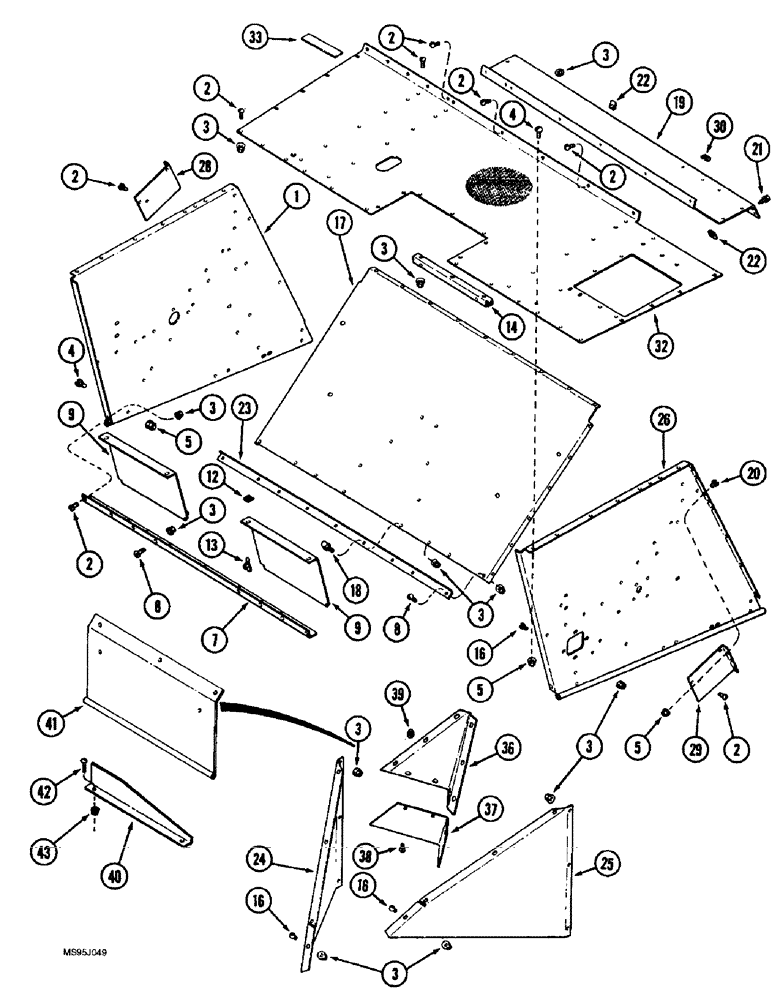

Запчасти Case IH 1688 (9H-10) - SEPARATOR HOOD AND SIDES (12) - CHASSIS

1

192378C9

SHEET

SIDE separator, left hand replaces 192378C7 and 192378C8

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

6шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

7

192304C1

ANGLE

rear support

1шт.

8

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

slotted truss head, 5/16 NC x 1-1/4 inch

6шт.

9

1300295C91

PANEL

SUPPORT rear hood access

2шт.

12

488837C1

SPRING NUT

speed, 5/16 inch NC

4шт.

13

183-123

THUMB SCREW

thumb with shoulder, 5/16 NC x 3/4 inch

4шт.

14

186971C1

ANGLE

rear deck support

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

10шт.

17

192306C7

DEFLECTOR

straw discharge

1шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

19

1330090C3

SHEET

SUPPORT engine deck

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

6шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

22

488837C1

SPRING NUT

speed, 5/16 inch NC

11шт.

23

194306C1

ANGLE

deflector stiffener

1шт.

24

1302107C2

DEFLECTOR

SUPPORT corner, left hand replaces 1302107C1

1шт.

25

1302108C2

DEFLECTOR

SUPPORT corner, right hand replaces 1302108C1

1шт.

26

1302698C92

SUPPORT

SIDE separator, right hand

1шт.

28

185104C1

SUPPORT

separator hood, left hand

1шт.

29

185105C1

SUPPORT

separator hood, right hand

1шт.

30

131-113

SPRING NUT,J, Ret, 5/16"-18

Speed grip

2шт.

32

1317744C3

HOOD

SUPPORT rear deck, Includes: Ref. 33

1шт.

33

D55216

PAD,2" x 9"

10шт.

36

1319485C1

DEFLECTOR

rear hood, models with straw spreader

1шт.

37

1321019C1

DEFLECTOR

guard, models with straw spreader

1шт.

38

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch, used with Refs. 36 and 37 deflectors

10шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used with Refs. 36 and 37 deflectors

10шт.

40

115497A1

DEFLECTOR

rotor discharge, models with straw and chaff spreader

1шт.

41

109991A3

DEFLECTOR

rear hood, models with straw and chaff spreader

1шт.

42

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

10шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.
