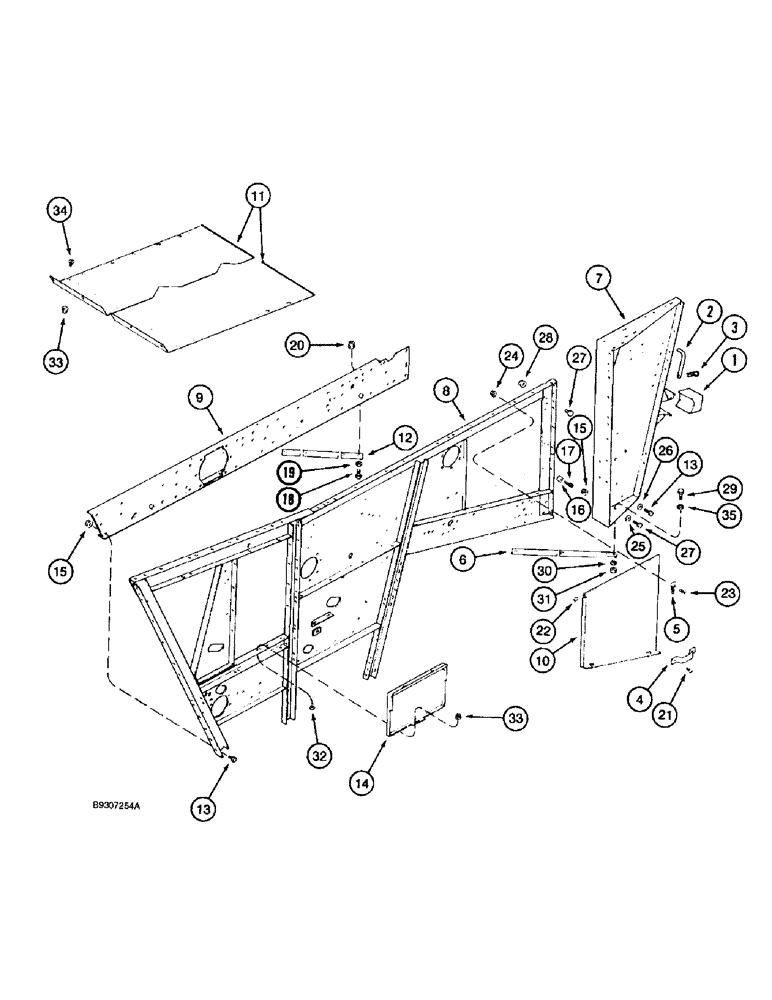

Запчасти Case IH 1688 (9H-08) - RIGHT SIDE SEPARATOR DOORS, SIDE AND SUPPORTS (12) - CHASSIS

1

1989327C1

RETAINER

BLOCK feeder pivot

1шт.

2

192533C2

ROD

feeder pivot block

1шт.

3

1978738C1

HAIR PIN COTTER

1шт.

4

160638C1

HANDLE

door

1шт.

5

167800C1

CLIP

door retaining clip

4шт.

6

1308946C1

BAR

front post diagonal

1шт.

7

193854C3

POST

separator, right hand

1шт.

8

1970460C2

SIDE ASSY.

separator, right hand

1шт.

9

1317554C3

SILL

SUPPORT separator

1шт.

10

182526C91

DOOR

separator, front right hand

1шт.

11

1330089C2

PROTECTION PLATE

PLATE engine deck

1шт.

12

186018C1

STRAP

diagonal support

1шт.

13

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

hex, 5/8 NC x 1-1/4 inch, grade 8

20шт.

14

181085C2

DOOR

separator

1шт.

15

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange, 5/8 inch NC, grade 8

20шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

3шт.

17

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

1шт.

18

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

20

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self-locking, special, 1/2 inch NC, grade 8

2шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

23

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

flat, 21/32 x 1-1/2 x 3/16 inch, hardened

2шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 inch

9шт.

27

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

28

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

10шт.

29

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

2шт.

30

492-11062

BEARING WASHER,5/8"

2шт.

31

425-1010

NUT,5/8"-11, G5

2шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

5шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

34

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

35

493-21065

LOCK WASHER,Int Tooth, 5/8"

internal tooth lock, 5/8 inch

2шт.
