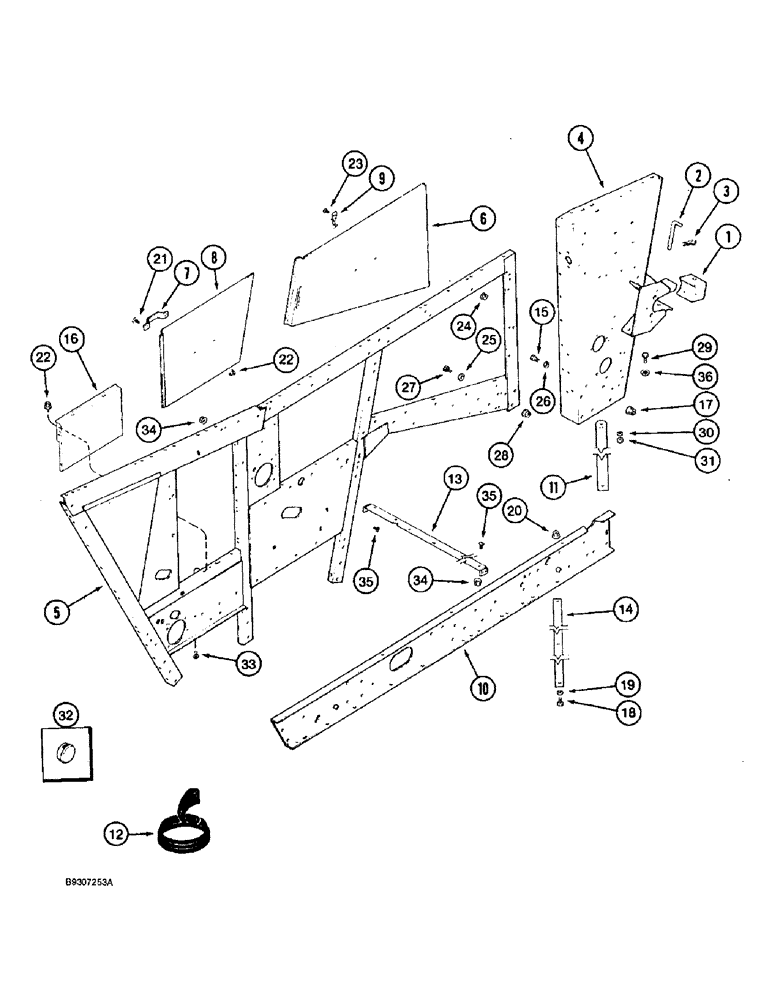

Запчасти Case IH 1688 (9H-06) - LEFT SIDE SEPARATOR DOORS, SIDE AND SUPPORTS (12) - CHASSIS

1

1989327C1

RETAINER

BLOCK feeder pivot

1шт.

2

192533C2

ROD

feeder pivot block

1шт.

3

1978738C1

HAIR PIN COTTER

1шт.

4

120869A1

SUPPORT ASSY.

POST left hand front, includes decal

1шт.

5

1968985C3

SIDE ASSY.

separator, left hand

1шт.

6

182524C91

DOOR

separator, front left hand

1шт.

7

160638C1

HANDLE

door

2шт.

8

183020C91

DOOR

separator, left hand

1шт.

9

167800C1

CLIP

door retaining clip

10шт.

10

1327695C5

SUPPORT

main

1шт.

11

1308946C1

BAR

front post diagonal

2шт.

12

87062C1

GASKET

TRIM edge, 12-5/16 inch (213 mm) long, cut from 1330108CX bulk, see this Figure

1шт.

13

195317C1

SUPPORT

engine deck

1шт.

14

186018C1

STRAP

diagonal support

2шт.

15

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

hex, 5/8 NC x 1-1/4 inch, grade 8

20шт.

16

181085C2

DOOR

separator

1шт.

17

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange, 5/8 inch NC, grade 8

20шт.

18

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

3шт.

20

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self-locking, special, 1/2 inch NC, grade 8

3шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

23

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

10шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

10шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

flat, 21/32 x 1-1/2 x 3/16 inch, hardened

2шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 inch

9шт.

27

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

11шт.

28

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

11шт.

29

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

2шт.

30

492-11062

BEARING WASHER,5/8"

2шт.

31

425-1010

NUT,5/8"-11, G5

2шт.

32

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

5шт.

34

231-5146

FLANGE NUT,3/8"-16

20шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

20шт.

36

493-21065

LOCK WASHER,Int Tooth, 5/8"

internal tooth lock, 5/8 inch

2шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk, 600 inch (15240 mm) long, see Ref. 12

1шт.
