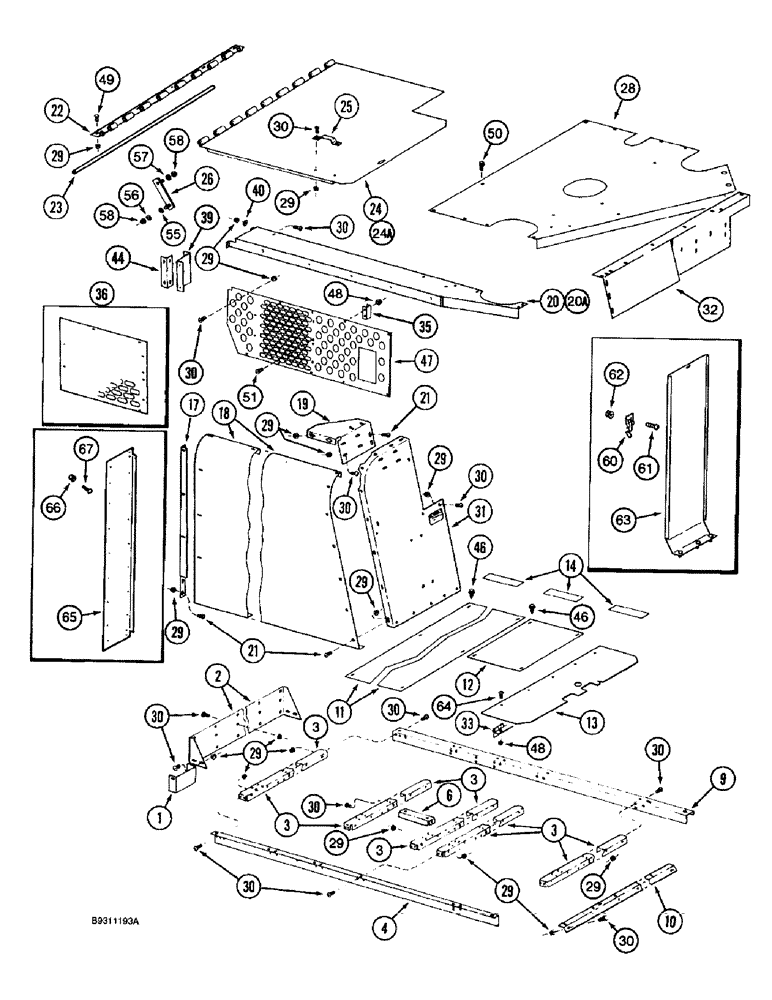

Запчасти Case IH 1688 (9H-02) - ENGINE SHIELD AND SERVICE DECK (12) - CHASSIS

1

186105C1

CHANNEL

BRACKET grain tank, left hand upper rear

1шт.

2

193435C3

SUPPORT

engine service deck

1шт.

3

192959C6

SUPPORT

deck

5шт.

4

186569C5

ANGLE

deck support, left hand

1шт.

6

1979830C1

SUPPORT

deck

1шт.

9

192961C6

ANGLE BAR

SUPPORT right hand deck

1шт.

10

1541891C1

ANGLE

engine deck, rear

1шт.

11

1979828C1

PLATE

engine compartment, front

1шт.

12

1979827C1

PLATE

DECK engine compartment

1шт.

13

1977155C1

DOOR

service deck

3шт.

14

D55216

PAD,2" x 9"

if equipped

1шт.

17

186106C1

CHANNEL

ANGLE shield stiffener, upper left hand

1шт.

18

1347037C1

SUPPORT

rear, upper left hand

1шт.

19

1330481C2

SUPPORT

LH Rear, Upper shield

1шт.

20

1541856C2

SUPPORT

door and hood, includes decals, no longer available, order Ref. 20A, 126862A1 and Ref. 24A, 126861A1 door, Serial Range: -JJC0120408

1шт.

20a

126862A1

SUPPORT

door and hood, includes decals, Start Serial: JJC0120408

1шт.

21

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

22

194477C2

HINGE

rotor cover door, front

1шт.

23

194478C1

ROD

rotor door hinge

1шт.

24

118455A1

INSPECTION DOOR

engine and rotor drive, includes decals, no longer available, order Ref. 24A, 126861A1 and Ref. 20A, 126862A1 support, Serial Range: -JJC0120408

1шт.

24a

126861A1

INSPECTION DOOR

engine and rotor drive, includes decal, Start Serial: JJC0120408

1шт.

25

160638C1

HANDLE

door

1шт.

26

1302413C1

PROP

Front, Door

2шт.

28

118084A2

SUPPORT

upper cover

1шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

30

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

31

1970113C1

PROTECTION PLATE

SUPPORT engine, rear, left hand, includes decal

1шт.

32

1541955C3

SUPPORT

air cleaner

1шт.

33

186695C1

HINGE

door

3шт.

35

196438C1

SUPPORT

clutch oil cooler, front

1шт.

36

1319860C1

PLATE

oil cooler

1шт.

39

196446C2

ANGLE

clutch oil cooler support

1шт.

40

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

flat, 11/32 x 1-1/4 x 1/16 inch

1шт.

44

1319696C1

BRACKET

cooler shield support

2шт.

46

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self-tapping, hex washer head, 1/4 NC x 1/2 inch

10шт.

47

1345275C1

SHIELD

PLATE oil cooler

1шт.

47a

1979316C3

SUPPORT

engine compartment door, not shown

1шт.

48

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

49

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

7шт.

50

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

14шт.

50

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

51

937875R1

SCREW,Serr, 1/4" - 20

slotted truss head, 1/4 NC x 3/4 inch

1шт.

52

D80270

ANTI-SKID STRIP,635mm / 25 Inch

5шт.

55

567532R1

WASHER

WASHER flat, special, 21/64 x 1/2 x 5/32 inch

1шт.

56

495-81024

WASHER,17/32" x 1 1/4" x .060"

flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

57

495-81117

WASHER,.344" x 1" x .120"

flat, 11/32 x 1 x 7/64 inch

1шт.

58

231-5315

FLANGE NUT,Flg, 5/16"-18

1шт.

60

167800C1

CLIP

door retaining clip

2шт.

61

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

62

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

63

1977286C3

SUPPORT

air shield

1шт.

64

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

30шт.

65

1338382C1

SHEET ASSY.

PANEL door anchor

1шт.

66

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8-15шт.

67

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

8-15шт.
