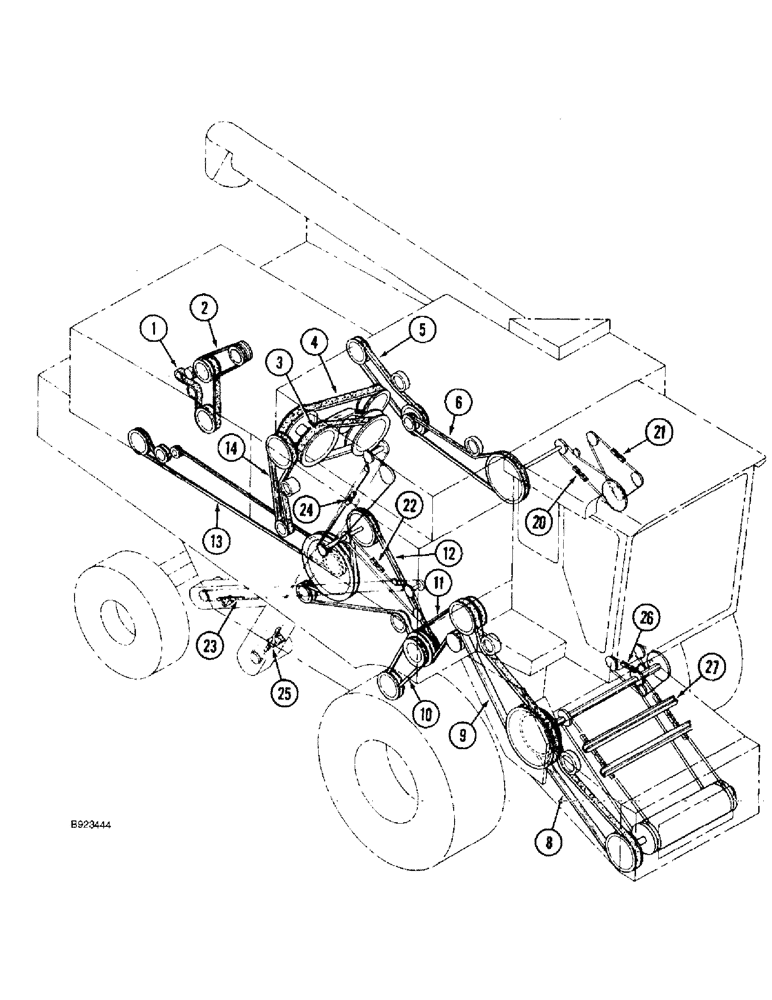

Запчасти Case IH 1688 (1-12) - PICTORIAL INDEX, BELTS, CHAINS (00) - PICTORIAL INDEX

1

Engine Fan and Alternator Belt, Page 2-20

1шт.

2

Air conditioning Compressor Belt, Page 9G-44

1шт.

3

Rotor Drive Belt, Page 9B-04

1шт.

4

Seperator Drive Belt, Page 9A-12

1шт.

5

Auxiliary Pump Drive Belt, Page 8-28

1шт.

6

Grain Tank Unloader Drive Belt, Page 9E-12

1шт.

8

Feeder Jackshaft Drive Belt, Page 9A-22

1шт.

9

Feeder Drive Belt, Page 9A-18

1шт.

10

Cleaning Fan Drive Belt, Page 9C-12

1шт.

11

Cleaning Fan Jackshaft Belt, Page 9A-02

1шт.

12

Elevator Drive Belt, Page 9A-04

1шт.

13

Straw Spreader Drive Belt, Page 9F-04

1шт.

14

Straw Chopper Drive Belt, Page 9F-10

1шт.

20

Grain Tank Unloader Drive Chain, Page 9E-16

1шт.

21

Rear Horizontal Auger Drive Chain, Page 9E-16

1шт.

22

Trailings Elevator Drive Chain, Page 9D-26

1шт.

23

Trailings Elevator Conveyor Chain, Page 9D-22

1шт.

24

Clean Grain Elevator Drive Chain, Page 9D-10

1шт.

25

Clean Grain Elevator Conveyor Chain, Page 9D-04

1шт.

26

Feeder Reverser Drive Chain, Page 9A-43, 9A-44

1шт.

27

Feeder Conveyor Chain, Page 9A-34

1шт.
