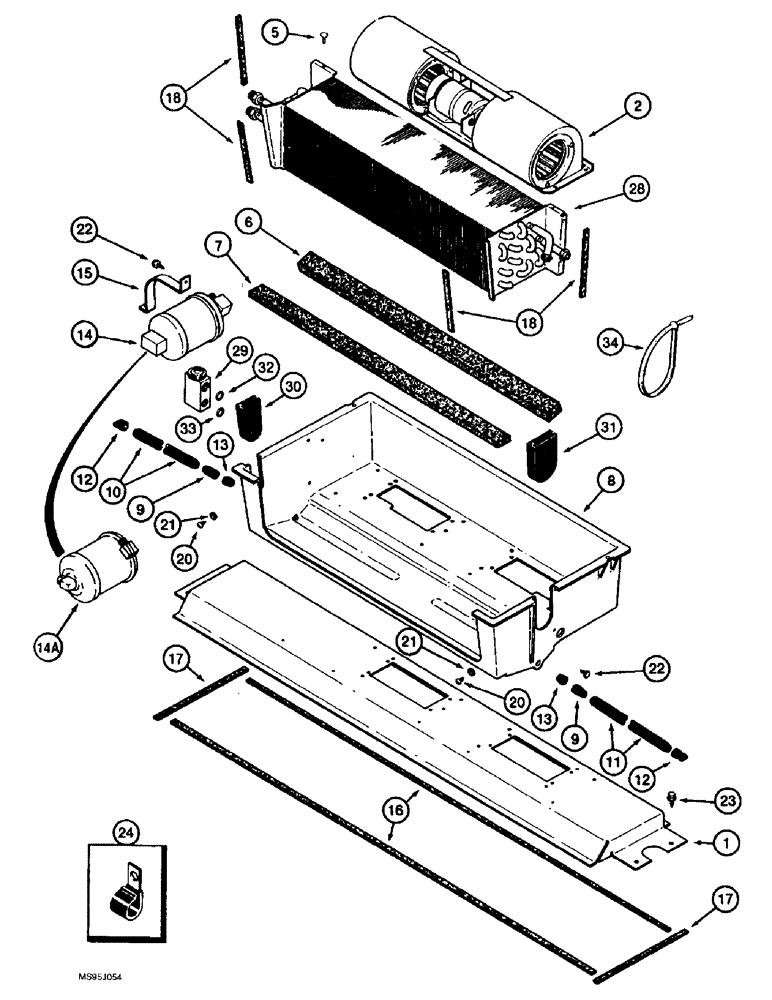

Запчасти Case IH 1688 (9G-36) - CAB, EVAPORATOR HEATER CORE AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

1

1276238C1

SUPPORT

mounting, blower box

1шт.

2

1255878C92

BLOWER ASSY.

cab pressurizer, parts list Figure 9G-38

1шт.

5

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

self-tapping, truss head, No. 10-16 x 3/4 inch

6шт.

6

84123C1

STRIP

SEAL 29-1/2 inch (750 mm) long, cut from 187874C1 bulk, see this Figure

1шт.

7

84124C1

STRIP

SEAL 28-1/2 inch (725 mm) long, cut from 1974883CX bulk, see this Figure

1шт.

8

135776C2

HOUSING

blower, core

1шт.

9

1250522C3

FITTING

straight, special, drain, Serial Range: hose-housing

2шт.

10

1276252C1

HOSE ASSY.

94 inch (2388 mm) long, cut from 198091C1 bulk, condensate left hand, see this Figure

1шт.

11

1327566C1

HOSE,12.95 mm ID x 3404.00 mm

134 inch (3404 mm) long, cut from 198091C1 bulk, condensate right hand, see this Figure

1шт.

12

109239C2

CHECK VALVE

2шт.

13

195806C1

GROMMET

condensate hose, 3/4 inch ID

4шт.

14

143469C2

RESERVOIR

RECEIVER-DRYER air conditioning system, replaced by 1990758C2

1шт.

14a

1990758C2

RECEIVER-DRYER

air conditioning, replaces 143469C2, Ref. 14 reservoir

1шт.

15

1250439C1

CLAMP

receiver-dryer

1шт.

16

1327504C1

SEAL

50 inch (1270 mm) long, cut from 187874C1 bulk, support and headliner, see this Figure

2шт.

17

1301250C1

SEAL

foam, adhesive-backed, 10 inch (254 mm) long, cut from 187874C1 bulk, support and headliner, see this Figure

2шт.

18

1327503C1

SEAL

6-1/2 inch (165 mm) long, cut from 187874C1, core to housing, see this Figure

4шт.

20

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

4шт.

21

395-31022

WASHER,#10

flat, 7/32 x 1/2 x 1/16 inch

4шт.

22

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

self-tapping, truss head, No. 10-16 x 3/4 inch

12шт.

23

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

self-tapping, hex washer head, 1/4 NC x 1 inch

4шт.

24

362126R1

CLIP

CLAMP right hand condensate hose

3шт.

1974632C3

EVAPORATOR

CORE ASSEMBLY heater, replaces 1974632C2, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

CORE evaporator

1шт.

29

1990756C1

VALVE

expansion, replaces 98370C3

1шт.

30

1250463C2

GROMMET

rubber, evaporator tubes

1шт.

31

1250464C2

GROMMET

rubber, heater tubes

2шт.

32

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

34

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

3шт.

1974883CX

SEAL

bulk, adhesive-backed, 1/2 (13) x 1-1/2 (38) x 600 inch (15240 mm) long, see Ref. 7

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

bulk, 1/2 (13) ID x 600 inch (15240 mm) long, see Refs. 10 and 11

1шт.

187874C1

GASKET

SEAL bulk, adhesive-backed, 1/8 (3) x 3/8 (10) x 600 inch (15240 mm) long, see Refs. 6, 16, 17, and 18

1шт.
