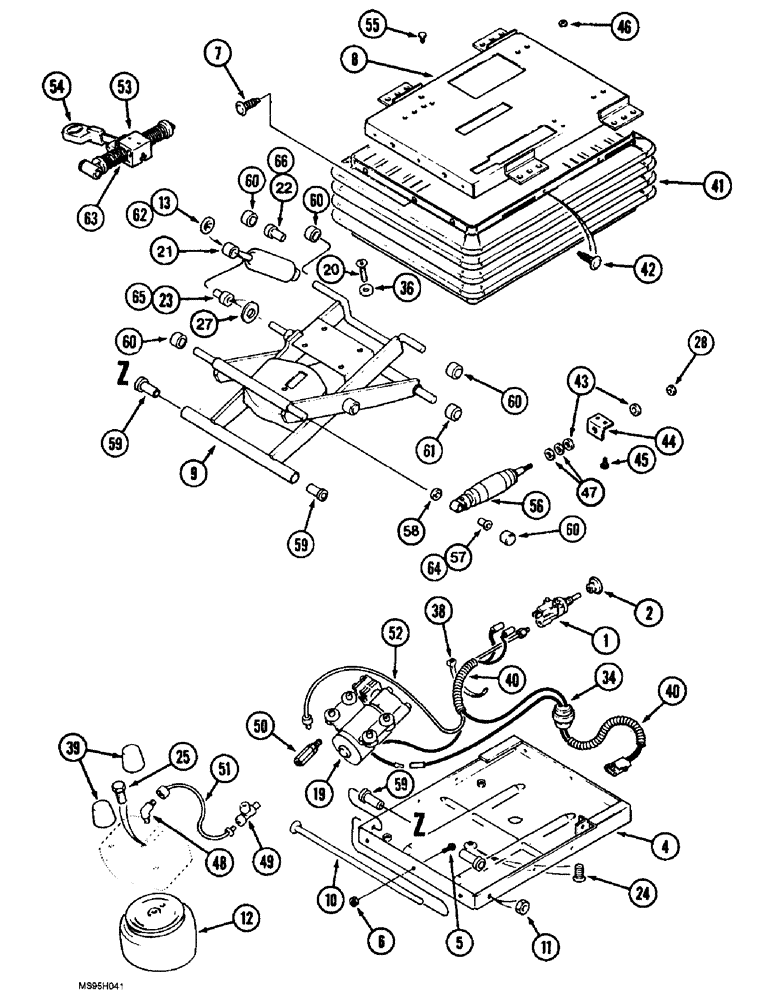

Запчасти Case IH 1688 (9G-34) - AIR SUSPENSION SEAT, SUSPENSION (10) - CAB & AIR CONDITIONING

1990653C2

SEAT

ASSEMBLY operators, also includes Refs. shown on parts list Figure 9G-32, Includes: Ref. 1, 2 and 4

1шт.

1990648C4

PACKAGE

KIT suspension service, replaces 1990648C1, Includes: Ref. 1, 2 and 4

1шт.

1

1981852C3

SWITCH

SUPPORT door rear inner, replaces 1981852C2, Includes: Ref. 2

1шт.

2

1987186C1

BUTTON

KNOB switch

1шт.

Part of KIT, part number 1999692C1

1шт.

4

226560A1

HOUSING

lower, with up stop bracket replaces 1981834C1, also order 132872A1 KIT and A45054 bumper

1шт.

4a

A45054

BUMPER,Neoprene

seat, lower, not shown

1шт.

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

FASTENER christmas

20шт.

6

NSS

NOT SOLD SEPARAT

NUT acorn

3шт.

7

NSS

NOT SOLD SEPARAT

CLIP retaining

3шт.

8

1990642C1

HOUSING

upper, suspension

1шт.

9

1990643C1

FRAME ASSY

ARM scissor, suspension

1шт.

10

A49529

SHAFT

bushing tube

1шт.

11

230-4216

LOCK NUT,3/8"-16, GA

1шт.

12

197793A1

SPRING

KIT air, replaces 1981842C1

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

14

1990644C1

PACKAGE

KIT bearing

1шт.

19

1999947C3

COMPRESSOR

KIT replaces 1999947C2

1шт.

NSS

NOT SOLD SEPARAT

VALVE check

1шт.

20

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

2шт.

1344250C2

KIT

KIT shock absorber, replaces 1344250C1, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

ABSORBER shock seat

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING shock absorber

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING shock absorber

1шт.

24

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

25

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

27

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

28

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

34

134237A2

HARNESS

compressor wire, replaces 1981848C2

1шт.

36

495-31022

WASHER,#10

4шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon retaining

2шт.

39

1981849C2

SHOCK ABSORBER

BUMPER rubber

2шт.

1990648C1

PACKAGE

KIT suspension service, Includes: Ref. 40

1шт.

40

1343833C1

TUBE

GUARD corrugated, 3/8 ID x 24 inch long

2шт.

41

1990647C1

PACKAGE

KIT boot, suspension, Includes: Ref. 42

1шт.

42

700709502

FASTENER

PIN retaining, package of 24

1шт.

43

A49679

BUSHING

rubber

2шт.

44

1981845C1

ANGLE

mounting

1шт.

45

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

46

231-1444

NUT,1/4"-20, GB

2шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

1990548C1

PACKAGE

KIT air line and fittings, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

ELBOW 90 degree, PT x 5/32 inch tube

1шт.

49

NSS

NOT SOLD SEPARAT

TEE 1/8 PT x 1/4 inch tube

1шт.

50

NSS

NOT SOLD SEPARAT

ADAPTER straight, 1/8 PT x 1/4 inch tube

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE nylon, 1/4 OD x 9-1/2 inch

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE nylon, 1/4 OD x 28 inch

1шт.

53

1990645C1

LATCH

ASSEMBLY isolator, fore and aft, Includes: Ref. 54

1шт.

54

NSS

NOT SOLD SEPARAT

KNOB isolator control, fore and aft

1шт.

Part of KIT, part number 1999692C1

1шт.

55

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

1990646C1

SHOCK ABSORBER

KIT includes Refs. 43 and 44, Includes: Ref. 56 and 57

1шт.

56

NSS

NOT SOLD SEPARAT

ABSORBER shock

1шт.

57

NSS

NOT SOLD SEPARAT

BUSHING shock

1шт.

58

NSS

NOT SOLD SEPARAT

SPACER shock

1шт.

180594A2

BEARING ASSY

KIT rollers and bearings, Includes: Ref. 59 - 67

1шт.

59

NSS

NOT SOLD SEPARAT

BUSHING shaft

2шт.

60

NSS

NOT SOLD SEPARAT

ROLLER bearing

2шт.

61

NSS

NOT SOLD SEPARAT

ROLLER tube

4шт.

62

NSS

NOT SOLD SEPARAT

NUT push on type, 1/2 inch

1шт.

63

NSS

NOT SOLD SEPARAT

BEARING isolator tube

1шт.

64

NSS

NOT SOLD SEPARAT

BEARING shock

1шт.

65

NSS

NOT SOLD SEPARAT

BEARING suspension shock, upper

1шт.

66

NSS

NOT SOLD SEPARAT

BEARING suspension shock, lower

1шт.

67

NSS

NOT SOLD SEPARAT

BEARING patch bar, not used, not shown

1шт.

1999692C1

LEVER ASSY & KNOB

KIT includes Refs. 2 and 54

1шт.
