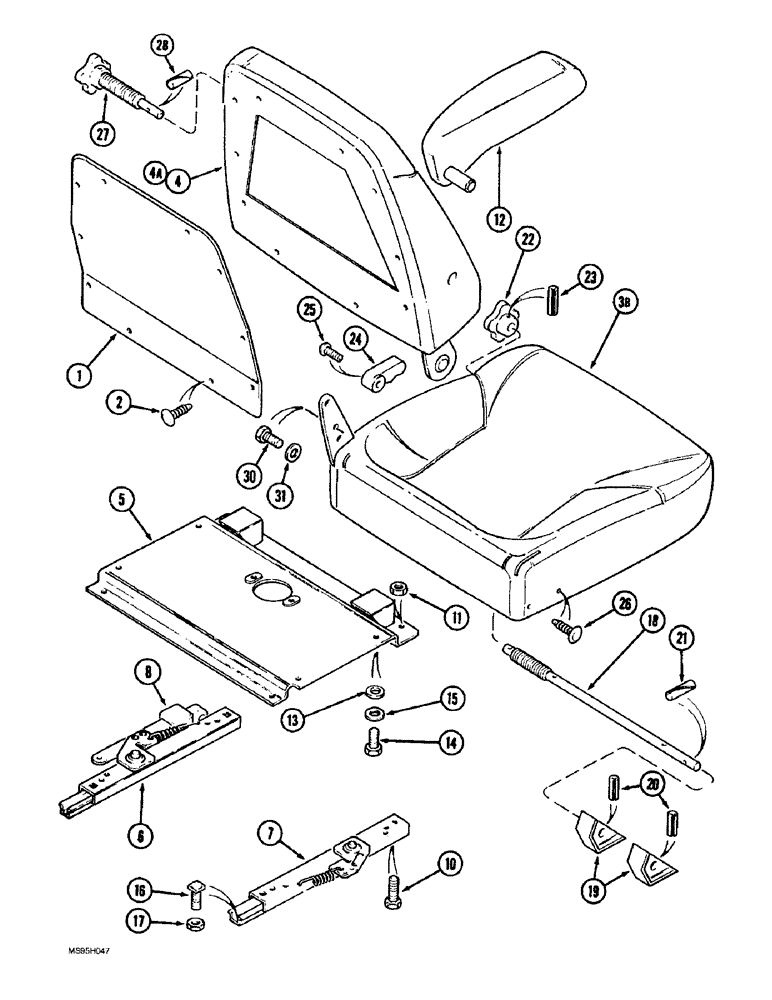

Запчасти Case IH 1688 (9G-32) - AIR SUSPENSION SEAT, CUSHIONS AND SLIDES (10) - CAB & AIR CONDITIONING

1990653C2

SEAT

ASSEMBLY operators, air suspension, also includes Refs. on parts list Figure 9G-34, Includes: Ref. 1 - 3

1шт.

1

1974713C2

PACKAGE

KIT backrest cover and retainers, Includes: Ref. 2

1шт.

Part of KIT, part number 1344004C4

1шт.

2

1999693C1

KIT

CLIP christmas tree, package of 14

1шт.

Part of KIT, part number 1344004C4

1шт.

3

136336A1

CUSHION, SEAT

KIT pad only, cloth, with horizontal center lines, not shown, replaces 1974701C2

1шт.

Part of KIT, part number 1344004C4

1шт.

3b

132885A1

CUSHION

seat pad only, cloth, Includes: Ref. 4 - 31

1шт.

4

1974702C2

PACKAGE,SERVICE

CUSHION backrest, includes 44 retainer rings

1шт.

Part of KIT, part number 1344004C4

1шт.

4a

NSS

NOT SOLD SEPARAT

PAD backrest

1шт.

4b

NSS

NOT SOLD SEPARAT

RING hog, not shown

25шт.

5

134180A1

PLATE

seat adapter, replaces 1999904C1

1шт.

1344248C1

SLIDE

KIT double locking, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE locking, with handle, left hand

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE locking, right hand

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB fore/aft, no longer available, order 1999691C1 kit

1шт.

Part of KIT, part number 1999691C1

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE slide latch, not shown

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

230-4225

LOCK NUT,5/16"-18, GA

hex, self-locking, 5/16 inch NC

4шт.

12

1981818C1

ARMREST

KIT left hand

1шт.

13

1959679C1

SPACER

tubular

4шт.

14

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

17

230-4225

LOCK NUT,5/16"-18, GA

hex, self-locking, 5/16 inch NC

8шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT seat tilt

1шт.

Part of KIT, part number 1344004C4

1шт.

19

NSS

NOT SOLD SEPARAT

CAM seat tilt

2шт.

Part of KIT, part number 1344004C4

1шт.

20

38-11016

LOCK PIN,5/32" x 1", Slotted

2шт.

Part of KIT, part number 1344004C4

1шт.

21

NSS

NOT SOLD SEPARAT

PIN spiral

1шт.

Parft of KIT, part number 1344004C4

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB seat tilt, order 1999691C1 kit

1шт.

Part of KIT, part number 1999691C1

1шт.

Part of KIT, part number 1344004C4

1шт.

23

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

Part of KIT, part number 1999691C1

1шт.

Part of KIT, part number 1344004C4

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB seat, backrest tilt, order 1999691C1 kit

1шт.

Part of KIT, part number 1999691C1

1шт.

Part of KIT, part number 1344004C4

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW machine, oval head cross recess, 6 x 12 mm, order 1999691C1 kit

1шт.

Part of KIT, part number 1999691C1

1шт.

Part of KIT, part number 1344004C4

1шт.

26

NSS

NOT SOLD SEPARAT

CLIP retaining

14шт.

Part of KIT, part number 1344004C4

1шт.

27

NSS

NOT SOLD SEPARAT

KNOB lumbar control, no longer available, order 1999691C1 kit

1шт.

Part of KIT, part number 1999691C1

1шт.

Part of KIT, part number 1344004C4

1шт.

28

38-11016

LOCK PIN,5/32" x 1", Slotted

Order 1999691C1 kit

1шт.

Part of KIT, part number 1999691C1

1шт.

Part of KIT, part number 1344004C4

1шт.

29

1999779C1

STRIPPER PACKAGE

KIT christmas tree, backrest, package of 4, not shown

1шт.

30

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

Part of KIT, part number 1344004C4

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.

1344004C4

SEAT ASSY.

KIT seat cushion and backrest, without suspension, cloth, includes Refs. 1 - 3, 4, 18 - 28 and 30, replaces 1344004C3

1шт.

1999691C1

PACKAGE,SERVICE

KIT seat knob, includes Refs. 8, 22 - 25, 27 and 28

1шт.
