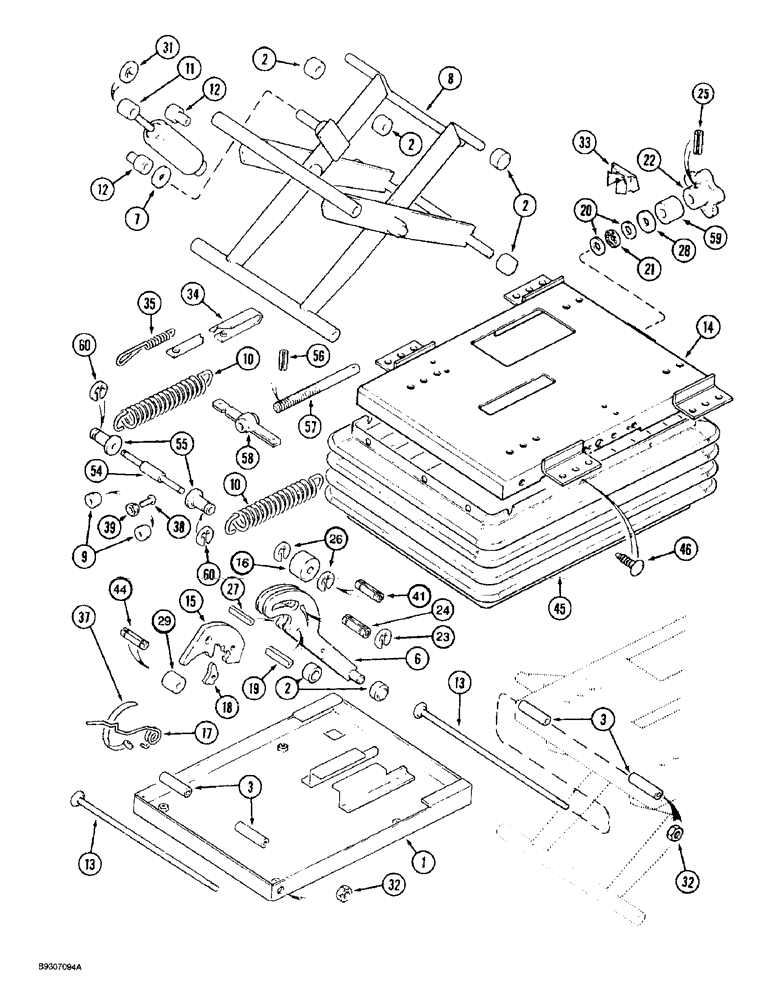

Запчасти Case IH 1688 (9G-28) - MECHANICAL SUSPENSION SEAT, SUSPENSION (10) - CAB & AIR CONDITIONING

1990651C2

SEAT

ASSEMBLY mechanical suspension, also includes Refs. on parts list Figure 9G-26, Includes: Ref. 1 - 61

1шт.

1981819C1

PACKAGE, REPAIR

KIT seat suspension, Includes: Ref. 1 - 61

1шт.

1

1981787C1

CASE

HOUSING lower

1шт.

1344249C1

KIT

KIT tube and bearing, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE roller, suspension

6шт.

3

NSS

NOT SOLD SEPARAT

BEARING tube

4шт.

6

NSS

NOT SOLD SEPARAT

CAM low profile

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER spacer, plastic

1шт.

8

1981789C1

DIPPER

ARM suspension, assembly

1шт.

9

1981793C1

BUMPER

seat

2шт.

10

1981794C1

SPRING

external

2шт.

1344250C1

SHOCK ABSORBER

KIT, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ABSORBER shock

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING shock absorber

2шт.

13

A49529

SHAFT

bushing tube

2шт.

14

1981821C1

HOUSING

upper

1шт.

15

NSS

NOT SOLD SEPARAT

CAM follower

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING cam follower

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING height adjustment

1шт.

18

NSS

NOT SOLD SEPARAT

LATCH cam follower

1шт.

19

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

20

NSS

NOT SOLD SEPARAT

RACE thrust

2шт.

21

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

22

118578C1

BUTTON

KNOB ASSEMBLY weight adjusting, includes handle and decals, which are not serviced separately

1шт.

23

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

24

NSS

NOT SOLD SEPARAT

PIN cam follower

2шт.

25

NSS

NOT SOLD SEPARAT

PIN roll, 5/16 x 1-1/4 inch

1шт.

26

NSS

NOT SOLD SEPARAT

RING retaining

2шт.

27

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.

29

NSS

NOT SOLD SEPARAT

SPACER height adjustment

1шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

2шт.

32

230-4216

LOCK NUT,3/8"-16, GA

2шт.

33

NSS

NOT SOLD SEPARAT

GUIDE weight adjuster

1шт.

34

NSS

NOT SOLD SEPARAT

TAPE weight adjuster

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING suspension

1шт.

37

NSS

NOT SOLD SEPARAT

TIE cable

1шт.

38

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

Retaining

2шт.

39

230-42409

NUT,#10-24, GA

hex, self-locking, No. 10 NC

2шт.

1990651C2

SEAT

ASSEMBLY mechanical suspension, also includes Refs. on parts list Figure 9G-26

1шт.

41

NSS

NOT SOLD SEPARAT

PIN cam follower

1шт.

44

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

45

1981786C1

KIT

boot, suspension, Includes: Ref. 46

1шт.

46

700709502

FASTENER

PIN retaining, package of 24

1шт.

1987116C1

PACKAGE

KIT weight adjustment, Includes: Ref. 54 - 60

1шт.

54

128115A1

SHAFT

spring

1шт.

55

NSS

NOT SOLD SEPARAT

BUSHING spring

2шт.

56

NSS

NOT SOLD SEPARAT

PIN roll, 5/32 x 5/8 inch

1шт.

57

NSS

NOT SOLD SEPARAT

SHAFT weight adjustment

1шт.

58

NSS

NOT SOLD SEPARAT

BAR weight adjustment

1шт.

59

NSS

NOT SOLD SEPARAT

SPACER weight adjusting

1шт.

60

NSS

NOT SOLD SEPARAT

RING retaining

2шт.

61

151-537

RIVET,Pop, 1/8" x .650"

break mandrel, 1/8 x 5/8 inch, seat, not shown

1шт.

1999901C1

KIT

spring and weight adjustment, includes Refs. 17, 33, 34 and 35 on Figure 9G-28

1шт.

123966A1

PACKAGE

KIT height adjustment, includes Refs.17, 29, 37, and 44 in Figure 9G-28

1шт.

123967A1

PACKAGE

KIT cam follower, includes Refs. 6, 15, 16, 18, 23, 24, 26 and 41 on Figure 9G-28

1шт.

123968A1

PACKAGE

KIT weight adjustment spring, includes Refs. 10, 55 and 60 on Figure 9G-28

1шт.

123969A1

SEAT ACCESSORY

Kit, Knob and shaft assy, Incl Ref 22, 25 and 57 on Figure 9G-28

1шт.
