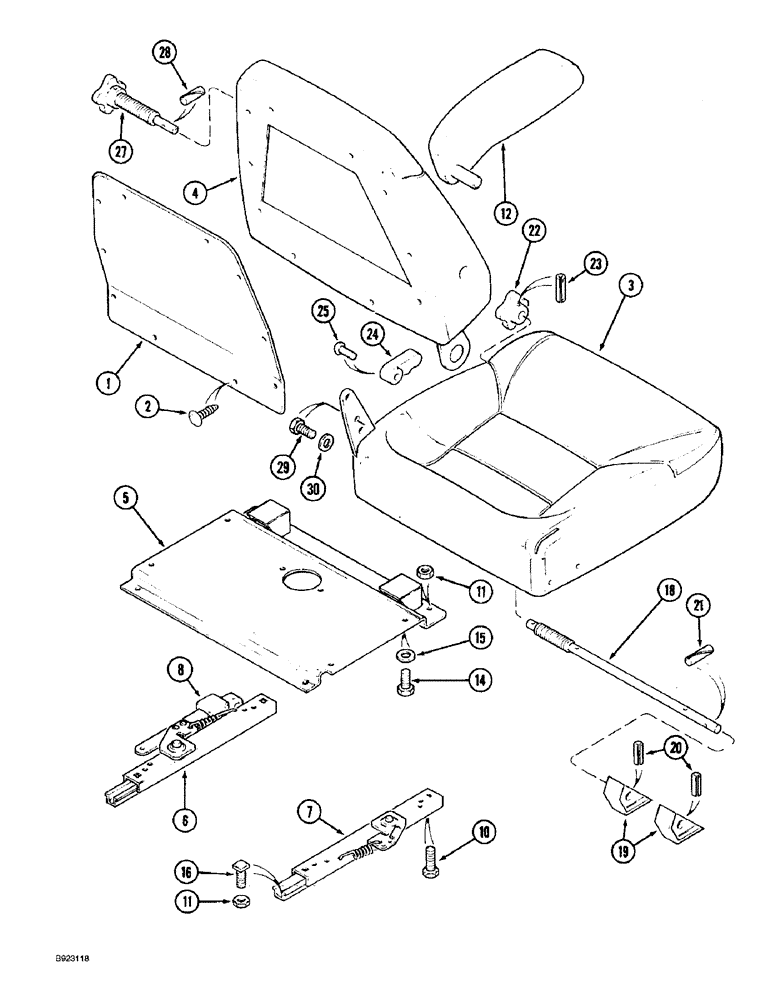

Запчасти Case IH 1688 (9G-26) - MECHANICAL SUSPENSION SEAT, CUSHIONS AND SLIDES (10) - CAB & AIR CONDITIONING

1990651C1

SEAT

ASSEMBLY mechanical suspension, also includes Refs. on parts list Figures 9G-28 and 9G-30, Includes: Ref. 1 - 31

1шт.

1

1981820C1

PACKAGE, REPAIR

KIT back cover service, Includes: Ref. 2

1шт.

2

1999693C1

KIT

CLIP christmas tree, package of 14

1шт.

3

136335A1

CUSHION, SEAT

PAD replaces 1981815C2

1шт.

4

127369A1

BACKREST COVER

CUSHION

1шт.

4

1981816C2

PACKAGE,SERVICE

KIT backrest cushion

1шт.

5

1999781C1

SEAT SUPPORT

PLATE slide adapter, replaced by 136316A1 Ref. 5A

1шт.

5a

136316A1

LARGE PLATE

PLATE, LARGE adapter, seat, not shown, replaces 1999781C1 Ref. 5

1шт.

1344248C1

SLIDE

KIT double locking, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE locking, with handle, left hand

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE locking, right hand

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB fore/aft

1шт.

Part of KIT, part number 1999691C1

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE slide latch, not shown

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

230-4225

LOCK NUT,5/16"-18, GA

hex, self-locking, 5/16 inch NC

8шт.

12

1981818C1

ARMREST

KIT left hand

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

1981813C3

PACKAGE, REPAIR

KIT seat and backrest, Includes: Ref. 18 - 30

1шт.

NSS

NOT SOLD SEPARAT

KIT seat and backrest cushion, includes Refs. 1, 3 and 4 shown above, Includes: Ref. 18 - 25

1шт.

1343826C2

SHAFT ASSY.

tilt, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT seat

1шт.

19

NSS

NOT SOLD SEPARAT

CAM seat tilt

2шт.

20

NSS

NOT SOLD SEPARAT

PIN roll, 5/32 x 1 inch

2шт.

21

NSS

NOT SOLD SEPARAT

PIN spiral

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB seat tilt

1шт.

Part of KIT, part number 1999691C1

1шт.

23

NSS

NOT SOLD SEPARAT

PIN roll, 5/32 x 1 inch

1шт.

Part of KIT, part number 1999691C1

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB seat, backrest tilt

1шт.

Part of KIT, part number 1999691C1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW machine, oval head cross recess, 6 x 12 mm

1шт.

Part of KIT, part number 1999691C1

1шт.

27

1999691C1

PACKAGE,SERVICE

KIT seat knob

1шт.

Part of KIT, part number 1999691C1.

1шт.

28

NSS

NOT SOLD SEPARAT

PIN roll, 5/32 x 1 inch

1шт.

Part of KIT, part number 1999691C1

1шт.

29

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.

31

1999779C1

STRIPPER PACKAGE

KIT christmas tree, backrest, package of 4, not shown

1шт.

1999691C1

PACKAGE,SERVICE

KIT seat knob, upper, includes Refs. 8 and 22 - 28.

1шт.

31

1999779C1

STRIPPER PACKAGE

KIT christmas tree, backrest, package of 4, not shown

1шт.
