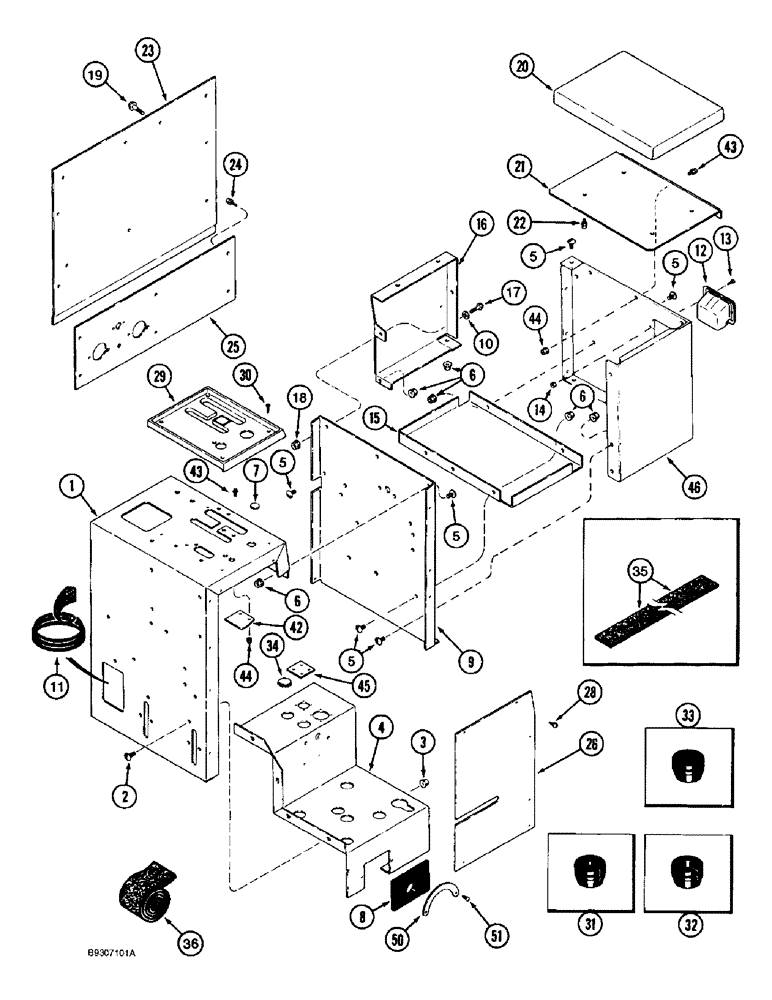

Запчасти Case IH 1688 (9G-20) - CAB, LEFT HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

193065C9

BRACKET

SUPPORT left hand console, rear

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

1321719C3

SUPPORT

left hand console, lower

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

5

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

8

1345009C1

GROMMET

wiring harness

1шт.

9

1324177C2

PLATE

SUPPORT manual box, rear

1шт.

10

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

1шт.

11

87063C2

STRIP

TRIM edge, 16-5/16 inch (414 mm) long, cut from 1330108CX bulk, see this Figure

1шт.

12

A165449

ASH TRAY

console

1шт.

13

489-1108

SCREW,Cross Oval Hd, #10"-32 x 1/2"

machine, oval Phillips, No. 10 NF x 1/2 inch

2шт.

14

225-13210

NUT,#10-32

2шт.

15

1324176C1

PLATE

SUPPORT manual box, lower

1шт.

16

91878C3

SUPPORT

manual box cover, left hand

1шт.

17

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

2шт.

17

1330155C1

BOLT,Hex Flg, 1/4" - 20 x 1/2"

self-locking, hex flange, special, 1/4 NC x 1/2 inch

2шт.

18

1330157C1

FLANGE NUT

self-locking, hex flange, special, 1/4 inch NC

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

self-tapping, hex washer head, 1/4 NC x 3/4 inch

12шт.

20

98129C2

PANEL

trim, gray

1шт.

21

1329876C1

PLATE

COVER manual box

1шт.

22

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

4шт.

23

1327958C2

PLATE

COVER outer, left hand console

1шт.

24

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self-tapping, hex washer head, 1/4 NC x 1/2 inch

16шт.

25

1283280C2

SUPPORT

connector panel

1шт.

26

91776C2

PLATE

left hand inner console

1шт.

28

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

Polyseal

7шт.

29

1285417C2

COVER

console

1шт.

30

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

31

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

rubber, 3/8 inch ID

3шт.

32

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 inch ID

2шт.

33

198820C1

GROMMET

plug, lower console support

1шт.

34

192280

HOLE PLUG BUTTON,1 1/4"

1-1/4 inch ID

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk, 600 inch (15240 mm) long, see Ref. 11

1шт.

35

187786C1

SEALING STRIP

SEAL adhesive-backed, 23 inch (584 mm) long, cut from 195917C1 bulk, see this Figure

1шт.

35

1330167C1

SEAL adhesive-backed, 4 inch (102 mm), cut from 195917C1 bulk, see this Figure

1шт.

35

1330168C1

SEAL adhesive-backed, 18-1/8 inch (460 mm) long, cut from 195917C1 bulk, see this Figure

1шт.

35

1330169C1

SEAL

adhesive-backed, 10-5/16 inch (262 mm) long, cut from 195917C1 bulk, see this Figure

1шт.

35

1330171C1

SEAL adhesive-backed, 14 inch (356 mm) long, cut from 195917C1 bulk, see this Figure

1шт.

35

1330170C1

SEAL adhesive-backed, 7-5/8 inch (194 mm) long, cut from 195917C1 bulk, see this Figure

1шт.

36

101301A1

TAPE insulation, 24 inch (610 mm) long, cut from 1954475C1 bulk, see this Figure

1шт.

42

195239C2

BAR

H pattern filler plate

1шт.

43

1330155C1

BOLT,Hex Flg, 1/4" - 20 x 1/2"

self-locking, hex flange, special, 1/4 NC x 1/2 inch

3шт.

44

1330157C1

FLANGE NUT

self-locking, hex flange, special, 1/4 inch NC

3шт.

45

1330179C1

PLATE

cover

1шт.

46

1979493C3

SUPPORT

manual box

1шт.

50

1999442C1

RETAINER

grommet

1шт.

51

1971376C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self-tapping, pan Phillips, No. 10-16 x 1 inch

2шт.

1954475C1

ROLL

TAPE bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick, see Ref. 36

1шт.

195917C1

GASKET

SEAL bulk, foam, adhesive-backed, 600 inch (15240 mm) long, see Ref. 35

1шт.
