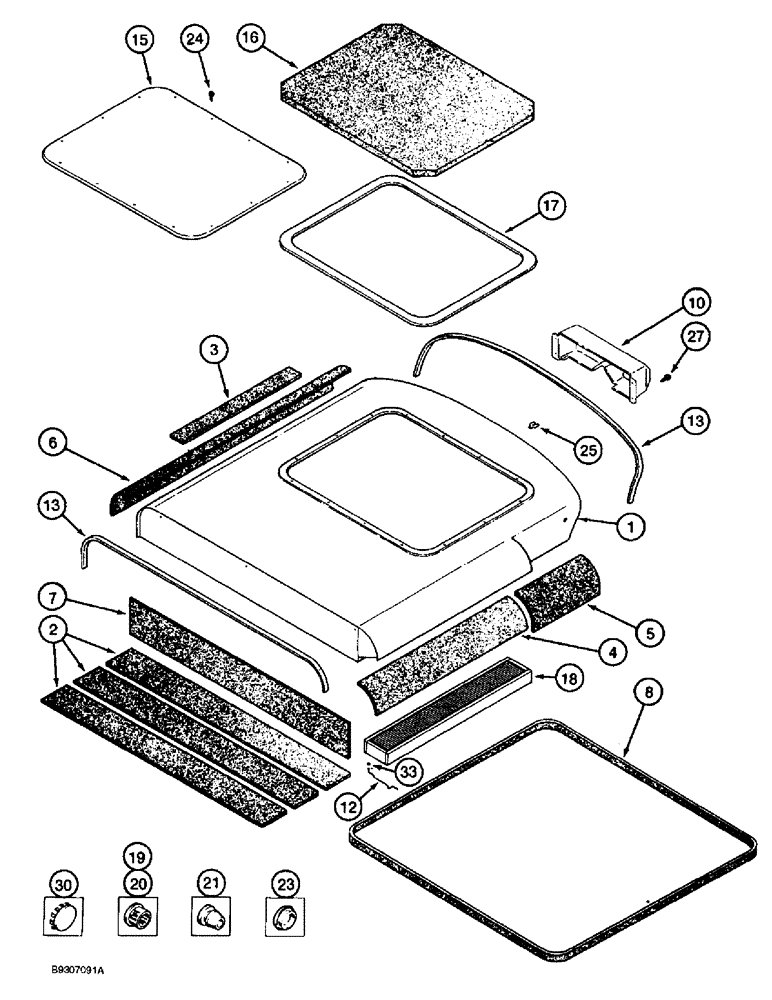

Запчасти Case IH 1688 (9G-14) - CAB, ROOF (10) - CAB & AIR CONDITIONING

1

1344179C1

ROOF

ASSEMBLY cab, Includes: Ref. 2 - 7

1шт.

2

1276339C2

INSULATOR

PANEL top, 12 inch (305 mm) long, cut from 1327515C2 bulk hose, see this Figure

3шт.

3

1281980C2

INSULATOR

PANEL left hand top, 12 inch (305 mm) long, cut from 1327515C2 bulk, see this Figure

1шт.

4

1276337C2

RUBBER INSULATOR

SEAL 10-1/2 (266) x 38-1/8 (970) x 1/2 inch (13 mm) thick, cut from 1327515C2 bulk, see this Figure

1шт.

5

1276336C2

INSULATOR

PANEL right hand front, 12 inch (305 mm) long, cut from 1327515C2 bulk, see this Figure

1шт.

6

1276338C2

INSULATOR

PANEL left hand side, 12 inch (305 mm), cut from 1327515C2 bulk, see this Figure

1шт.

7

1281740C2

INSULATOR

PANEL rear, 60 inch (1524 mm) long, cut from 1327515C2 bulk, see this Figure

1шт.

8

180637C2

SEAL

TRIM edge, 220 inch (5588 mm) long, cut from 182747C1 bulk, see this Figure

1шт.

10

1990977C1

COVER ASSY

windshield wiper motor

1шт.

1987144C1

DECAL

Axial-Flow, parts list Figure 9H-32 Ref. 19

1шт.

12

117727C2

ROD

filter latch

3шт.

13

1281996C1

SEAL

TRIM edge, 72 inch (1829 mm) long, cut from 1327666C1 bulk, see this Figure

2шт.

15

143006C3

PANEL

roof

1шт.

16

1276340C2

INSULATOR

COVER access

1шт.

17

83872C2

SEAL

access cover

1шт.

18

143481C2

AIR CLEANER

FILTER cab

1шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

2шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 inch ID

2шт.

23

353-252

PLUG,1"

button, 1 inch

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

self-tapping, hex washer head, 1/4 NC x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

self-tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

4шт.

30

179093

HOLE PLUG BUTTON,9/32"

6шт.

30

353-408

PLUG,Dome, .750" hole, Nylon

button, 3/4 inch

2шт.

33

118084C1

SEALING WASHER

rubber

3шт.

1327515C2

INSULATOR

SEAL bulk sheet, 54 (1372) wide x 120 (3048) long x 1/2 inch (13 mm) thick, see Refs. 2 - 7

1шт.

182747C1

DOOR SEAL

TRIM edge, bulk, 600 inch (15240 mm) long, see Ref. 8

1шт.

1327666C1

SEAL

TRIM edge, bulk, 600 inch (15240 mm) long, see Ref. 13

1шт.
