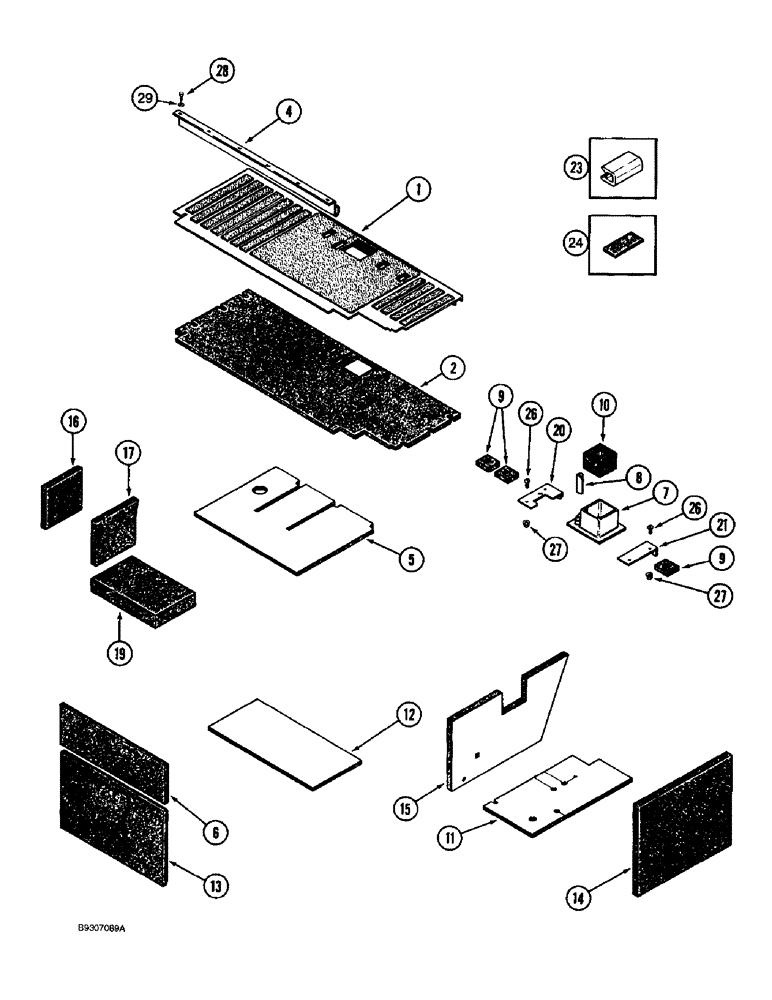

Запчасти Case IH 1688 (9G-10) - CAB, INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING

1

1329711C3

MAT

floor

1шт.

2

1326885C1

INSULATOR

PAD floor mat

1шт.

4

1338051C1

BRACKET

hold-down

1шт.

5

98123C4

SHEET ASSY.

SUPPORT seat platform

1шт.

6

98008C2

INSULATOR

PAD center rear support

1шт.

7

198075C1

INSULATOR

PAD steering pedestal

1шт.

8

187581C1

ANGLE

steering pedestal

1шт.

9

1321935C1

SEAL

pedal

3шт.

10

1324844C1

SEAL

steering pedestal

1шт.

11

196587C7

INSULATOR

PAD right hand

1шт.

12

91793C2

INSULATOR

PAD center

1шт.

13

91790C2

INSULATOR

PAD center rear

1шт.

14

1301219C2

SHEET

PAD insulation

1шт.

15

91797C1

INSULATOR

PAD right hand, inner

1шт.

16

196598C2

SHEET

PAD insulation, left hand, outer

1шт.

17

1322927C2

INSULATOR

PAD left hand panel

1шт.

19

91792C3

SHEET ASSY.

PAD insulation, manual box

1шт.

20

1327567C1

PLATE

boot hold-down, left hand

1шт.

21

1327568C1

PLATE

boot hold-down, right hand

1шт.

23

1330107C2

STRIP

TRIM edge, 27-1/2 inch long, cut from 1330108CX bulk, see this Figure

1шт.

24

101301A1

TAPE insulation, 24 inch (610 mm) long, cut from 1954475C1 bulk, see this Figure

3шт.

23

98131C2

STRIP

TRIM edge, 12-1/2 inch (318 mm) long, cut from 1330108CX bulk, see this Figure

1шт.

25

1301236C1

SEALING STRIP

31 inch (787 mm) long

1шт.

25

198600C2

SEALING STRIP

SEAL 156 inch (3962 mm) long

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

28

275-1478

SELF-TAP SCREW,1/4" - 14 x 1/2"

hex, self-tapping, 1/4-14 x 1/2 inch

4шт.

29

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk, 600 inch (15240 mm) long, see Ref. 23

1шт.

1954475C1

ROLL

TAPE bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick, see Ref. 24

1шт.
