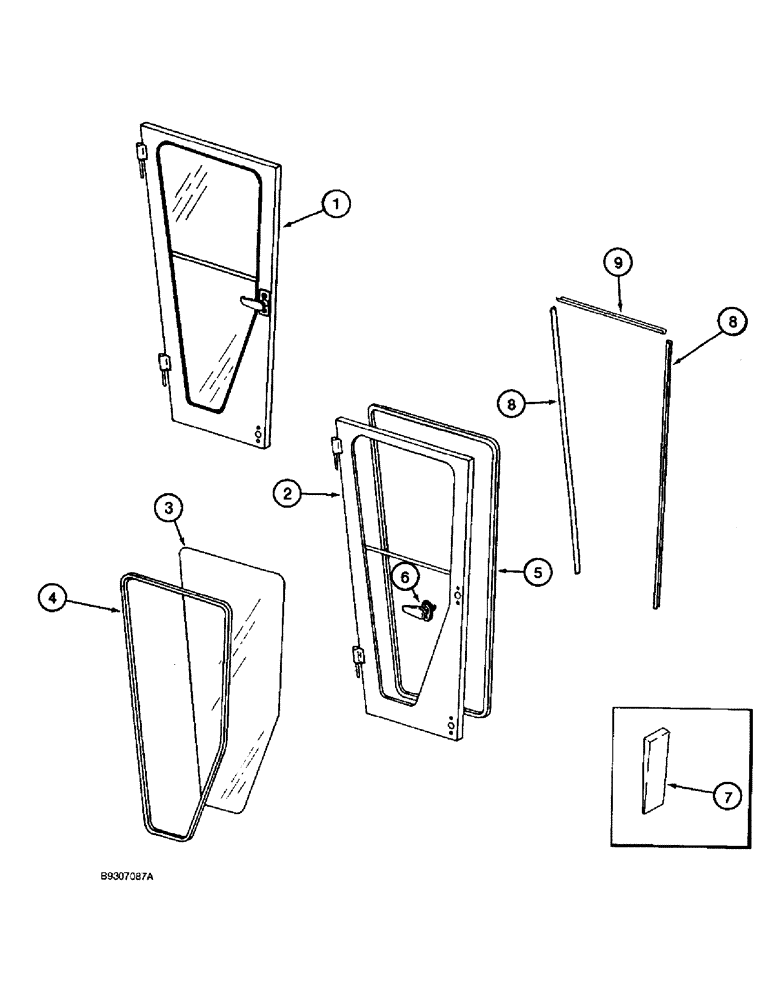

Запчасти Case IH 1688 (9G-06) - CAB, DOOR ASSEMBLY (10) - CAB & AIR CONDITIONING

1

1329477C3

DOOR

ASSEMBLY cab, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR cab

1шт.

3

198184C1

GLASS

cab

1шт.

4

180606C2

SEALING STRIP

SEAL 130-1/2 (3315 mm) long, cut from 198131C2 bulk, see this Figure

1шт.

5

11606A1

USE 111606A1 door front, 162 inch, cut from 198522C1 bulk seal, see this Figure

1шт.

6

1329468C1

HANDLE

ASSEMBLY door, parts list Figure 9G-9

1шт.

7

111632A1

DOOR SEAL

RUBBER SEAL door wedge

4шт.

8

180618C1

STRIP

TRIM edge, 54 inch (1372 mm) long, cut from 1330108CX bulk, see this Figure

2шт.

9

180617C1

STRIP

TRIM edge, 26-1/8 inch (664 mm) long, cut from 1330108CX bulk, see this Figure

1шт.

198131C2

SEAL, GLASS

bulk, 120 inch (3048 mm) long, see Ref. 4

1шт.

198522C1

STRIP

SEAL bulk, 600 inch (15240 mm) long, see Ref. 5

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk, 600 inch (15240 mm) long, see Refs. 8 and 9

1шт.
