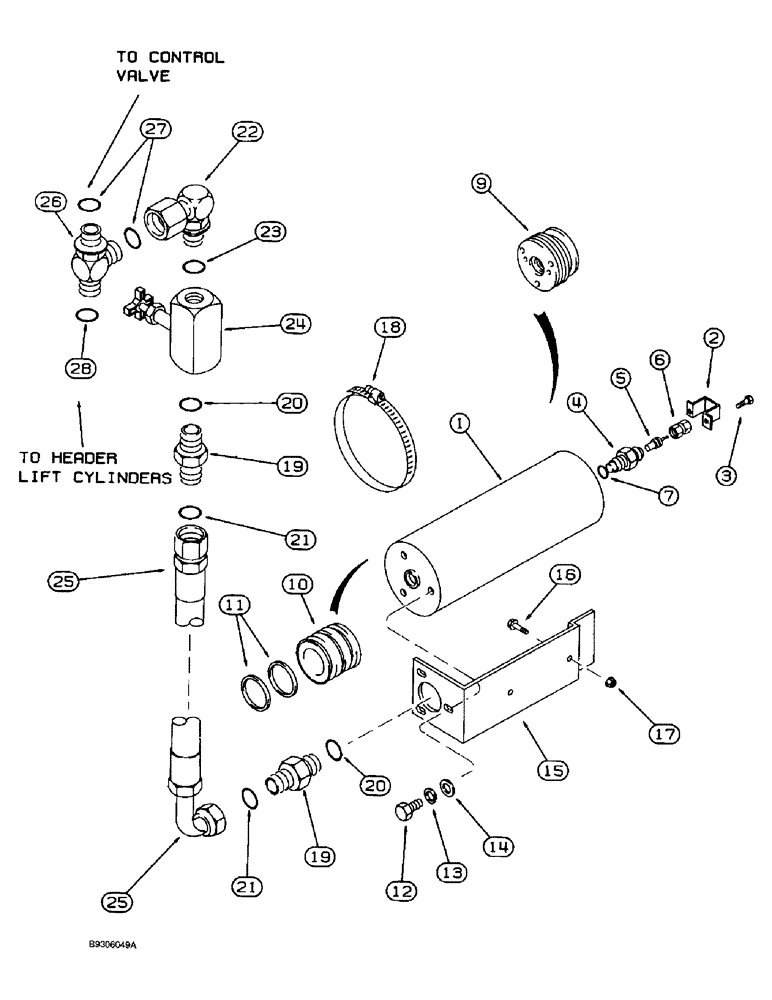

Запчасти Case IH 1688 (8-76) - ACCUMULATOR MOUNTING AND SYSTEM, ASSEMBLY (07) - HYDRAULICS

1978111C1

TANK

ACCUMULATOR ASSEMBLY hydraulic, with welded ends, no longer available, order 128191A1, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY accumulator assembly

1шт.

2

1341920C1

PROTECTOR

GUARD valve, gas, accumulator assembly

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

self-tapping, hex head, 3/8 NC x 3/4 inch, accumulator assembly

2шт.

1978142C1

VALVE

ASSEMBLY charge, accumulator, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE accumulator charging, assembly

1шт.

5

1978143C1

PISTON

CORE valve, accumulator assembly

1шт.

6

1978144C1

CAP

valve, accumulator assembly

1шт.

7

1978158C1

O-RING

O-RING valve, sealing, accumulator assembly

1шт.

8

1341919C1

SEAL KIT

seal, accumulator, not shown, assembly

1шт.

128191A1

ACCUMULATOR,1.9L

ASSEMBLY hydraulic, with threaded ends, replaces 1978111C1, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY accumulator assembly

1шт.

2

1341920C1

PROTECTOR

GUARD valve, gas, accumulator assembly

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

self-tapping, hex head, 3/8 NC x 3/4 inch, accumulator assembly

2шт.

1978142C1

VALVE

ASSEMBLY charge, accumulator, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE accumulator charging, assembly

1шт.

5

1978143C1

PISTON

CORE valve, accumulator assembly

1шт.

6

1978144C1

CAP

valve, accumulator assembly

1шт.

7

1978158C1

O-RING

O-RING valve, accumulator assembly

1шт.

8

1341919C1

SEAL KIT

seal, accumulator, not shown, assembly

1шт.

9

S301363

GLAND

accumulator, assembly

1шт.

10

S301364

PISTON

accumulator, assembly

1шт.

11

S301365

RING

wear, teflon, piston, accumulator assembly

2шт.

MOUNTING AND SYSTEM

1шт.

12

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

BOLT hex, 1/2 NF x 3/4 inch, mounting and system

3шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

Mounting and system

3шт.

14

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

flat, 17/32 x 1-1/4 x 5/32 inch, mounting and system

3шт.

15

1979278C2

SUPPORT

accumulator, mounting and system

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

Mounting and system

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Mounting and system

2шт.

18

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

Adj., Mounting and system

1шт.

19

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 20 and 21

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Mounting and system, Mounting and system

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Mounting and system

1шт.

22

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

90 degree, 13/16-16 swivel face seal x 3/4-16 inch adj O-ring boss, mounting and system, Includes: Ref. 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Mounting and system, Mounting and system

1шт.

24

183510C1

VALVE

needle, mounting and system

1шт.

25

1989665C1

HOSE

32 inch (815 mm) long, accumulator, mounting and system

1шт.

26

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

13/16-16 face branch x face x 3/4-16 inch adj O-ring, mounting and system, Includes: Ref. 27 and 28

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Mounting and system

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Mounting and system, Mounting and system

1шт.
