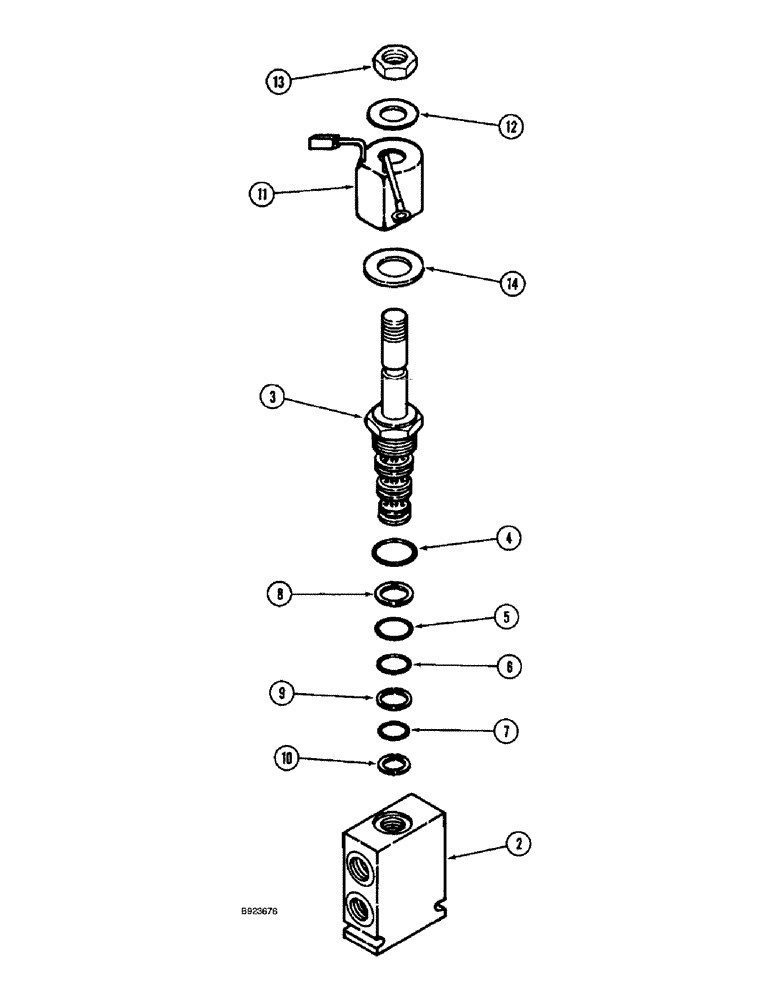

Запчасти Case IH 1688 (8-72) - SEPARATOR CLUTCH VALVE ASSEMBLY, MODULAR CONTROL (07) - HYDRAULICS

187505C91

VALVE

ASSEMBLY separator clutch, Includes: Ref. 2 - 14

1шт.

2

187851C1

BODY

valve

1шт.

3

187849C1

SOLENOID VALVE

solenoid, 4-way, cartridge only

1шт.

187850C1

SEAL KIT

KIT replacement, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING valve

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING valve

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING valve

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER O-ring backup

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER O-ring backup

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER O-ring backup

1шт.

187852C1

SWITCH

KIT solenoid coil, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

COIL valve includes housing

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE coil

1шт.

13

NSS

NOT SOLD SEPARAT

NUT hex, coil

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE cover

1шт.
