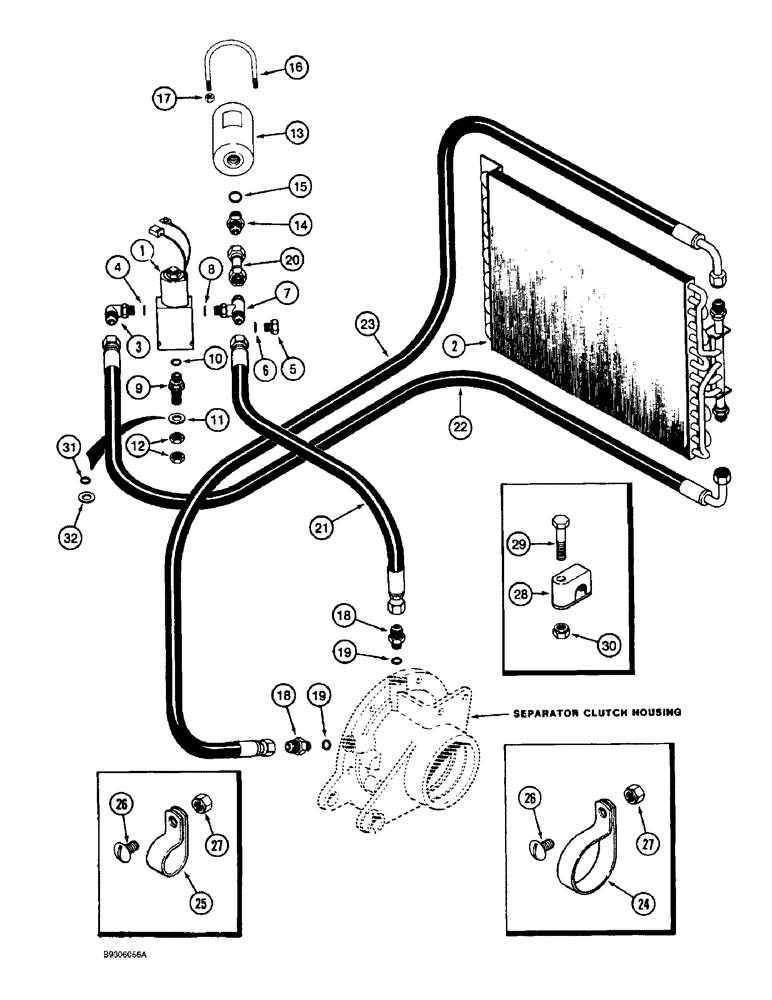

Запчасти Case IH 1688 (8-70) - SEPARATOR CLUTCH SYSTEM (07) - HYDRAULICS

1

187505C91

VALVE

ASSEMBLY separator clutch, parts list Figure 8-72

1шт.

2

183747C1

OIL COOLER

oil, separator clutch

1шт.

3

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 4

1шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6

1шт.

7

183774C1

TEE

separator clutch

1шт.

9

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, 9/16-18 inch flare x bulkhead flare, Includes: Ref. 10

1шт.

11

156276C1

WASHER

rubber, special, 1/2 x 1 x 1/16 inch, no longer available, order Refs. 31 O-RING and 32 WASHER, see this Figure

1шт.

12

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

2шт.

13

1541941C1

ACCUMULATOR

hydraulic, separator clutch

1шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

186505C1

BOLT,U, 1/4" - 20 x 3.2"

U absorber mounting

1шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

18

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 19

2шт.

20

183775C1

HYD TUBE

TUBE separator clutch accumulator

1шт.

21

183773C1

HOSE

18 inch (377 mm) long, valve to gear case

1шт.

22

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

50 inch (1270 mm) long, Serial Range: cooler-valve

1шт.

23

183748C2

HOSE,12.7mm ID x 1460.5mm L, SAE 100R1

57-1/2 inch (1460 mm) long, gear case to oil cooler

1шт.

24

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1-7/8 inch diameter

1шт.

25

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

28

196447C1

CLAMP

clutch oil cooler tubing

2шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

31

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

32

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

29

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
