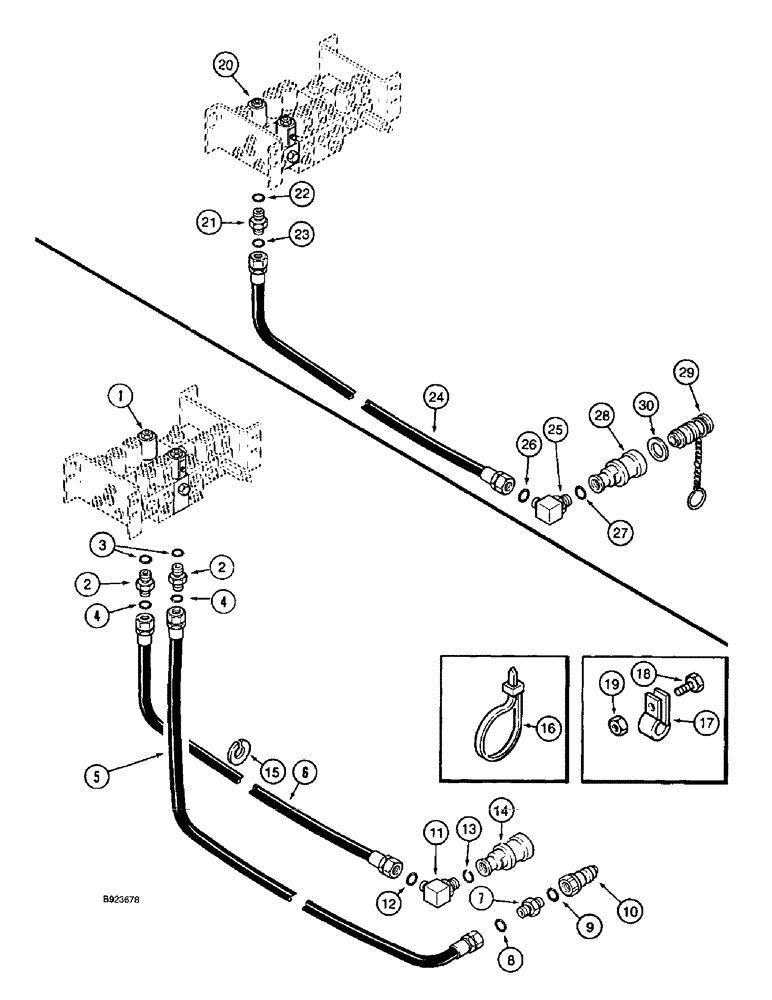

Запчасти Case IH 1688 (8-66) - REEL FORE/AFT AND LIFT SYSTEMS, REEL FORE AND AFT, REEL LIFT SYSTEM (07) - HYDRAULICS

1

1267035C94

VALVE

ASSEMBLY double piloted, reel fore and aft, parts list Figure 8-48, no longer available, order 124857A1, Serial Range: -JJC119607

1шт.

1

124857A1

VALVE

ASSEMBLY double piloted, reel fore and aft, parts list Figure 8-50, Start Serial: JJC119607

1шт.

2

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 3 and 4

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Mounting and system, Reel fore and aft

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Reel fore and aft

1шт.

5

1989471C1

HOSE

150 inch (3810 mm) long, reel fore and aft

1шт.

6

1989470C1

HOSE

114 inch (2895 mm) long, reel fore and aft

1шт.

7

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

ADAPTER straight, 11/16-16 face seal x 7/8-14 inch O-ring boss, reel fore and aft, Includes: Ref. 8 and 9

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Reel fore and aft

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Reel fore and aft

1шт.

10

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF, reel fore and aft

1шт.

11

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

ELBOW 90 degree, 11/16-16 face seal x 7/8-14 inch adj O-ring boss, reel fore and aft, Includes: Ref. 12 and 13

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Reel fore and aft

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Reel fore and aft

1шт.

14

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 inch, reel fore and aft

1шт.

15

1541792C1

WASHER

lock, red, special, reel fore and aft

1шт.

16

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch, reel fore and aft

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Reel fore and aft

1шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

Reel fore and aft

1шт.

19

231-5146

FLANGE NUT,3/8"-16

Reel fore and aft

1шт.

REEL LIFT SYSTEM

1шт.

20

107981A2

VALVE

ASSEMBLY unload/single bi-directional, reel lift system, parts list Figure 8-46

1шт.

21

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

ADAPTER straight, 11/16-16 face seal x 7/16-20 inch O-ring boss, reel lift system, Includes: Ref. 22 and 23

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Reel lift system

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Reel lift system

1шт.

24

1989470C1

HOSE

114 inch (2895 mm) long, reel lift system

1шт.

25

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

ELBOW 90 degree, 11/16-16 face seal x 7/8-14 inch adj O-ring boss, reel lift system, Includes: Ref. 26 and 27

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Reel lift system

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Reel lift system

1шт.

28

1282338C91

COUPLING, QUICK, FEM

self-sealing, 7/8-14 inch, reel lift system

1шт.

29

1954133C1

PLUG

coupling, dust, reel lift system, Includes: Ref. 30

1шт.

30

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, reel lift system

1шт.
