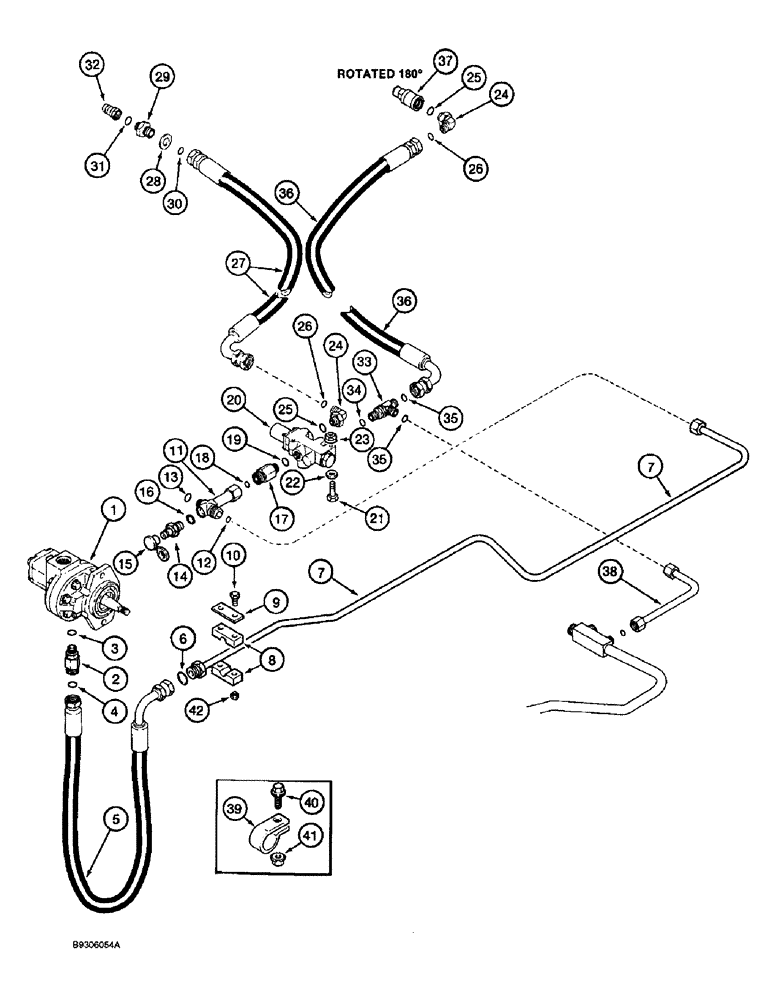

Запчасти Case IH 1688 (8-60) - HYDRAULIC REEL DRIVE SYSTEM (07) - HYDRAULICS

1

1994653C2

PUMP

ASSEMBLY auxiliary drive

1шт.

1994653C2R

REMAN-HYD PUMP

1688 (1/93 - 12/94)

1шт.

1994653C2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Adapter, straight, Includes: Ref. 3 and 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

1980050C2

HOSE,15.88mm ID x 737mm L

29 inch (737 mm) long, auxiliary pump pressure

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

1541752C2

HYD TUBE,0.75" OD, 2294, 292 mm Length

reel valve supply

1шт.

8

1541538C1

CLAMP

two piece, 3/4 inch OD tube

1шт.

9

1541537C1

PLATE

clamp

1шт.

10

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

11

1541633C1

TEE

special, feeder clutch valve

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

1541849C1

COUPLING

ASSEMBLY diagnostic, Includes: Ref. 15 and 16

1шт.

Part of COUPLER, part number 1543171C1

1шт.

15

H434163

DUST CAP

1шт.

17

1541634C1

VALVE

ASSEMBLY relief, Includes: Ref. 18 and 19

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

1272619C93

VALVE

ASSEMBLY hydraulic, parts list Figure 8-64

1шт.

21

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Used with Refs. 21A and 22 washers

2шт.

21a

495-81117

WASHER,.344" x 1" x .120"

flat, 11/32 x 1 x 7/64 inch, not shown, used with Ref. 21 bolt

2шт.

22

495-81123

WASHER,0.34" ID x 1.75" OD x 0.18" Thk

flat, 11/32 x 1-3/4 x 11/64 inch, used with Ref. 21 bolt

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

24

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-14 face seal x 7/8-14 inch adj O-ring boss, Includes: Ref. 25 and 26

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

27

1989495C1

HOSE

136 inch (3455 mm) long, reel motor supply, pressure

1шт.

28

1345266C1

WASHER

lock, white, special

1шт.

29

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 30 and 31

1шт.

30

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

1272399C2

QUICK MALE COUPLING

COUPLER self sealing, male, 7/8 inch NF

1шт.

33

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1-14 face branch x face x 7/8-14 inch adj O-ring boss, Includes: Ref. 34 and 35

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

36

1989496C1

HOSE

102-1/2 inch (2605 mm) long, reel drive motor return

1шт.

37

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 inch

1шт.

38

1989476C1

HYD TUBE

TUBE reel drive return, parts list Figure 8-26 for continuation of hydraulic lines

1шт.

39

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1-7/8 inch diameter

4шт.

40

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

41

231-5146

FLANGE NUT,3/8"-16

4шт.

42

231-4144

NUT,1/4"-20, GB

2шт.

1543171C1

COUPLING, BREAK AWAY

COUPLER female, used to check pressure

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
