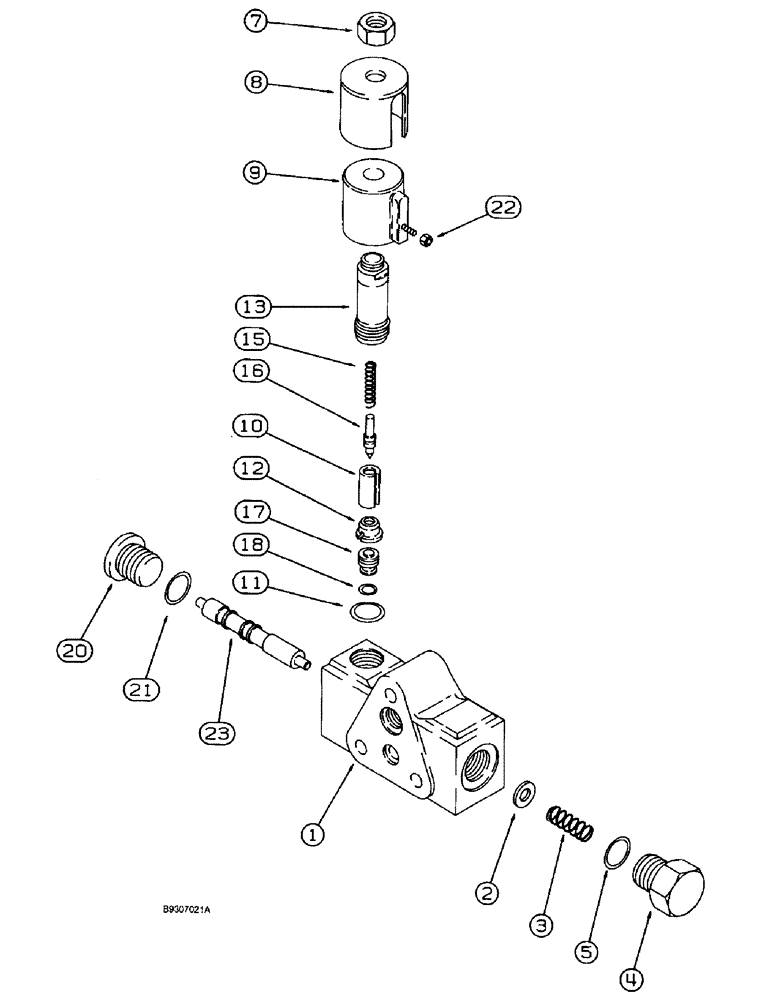

Запчасти Case IH 1688 (8-58) - FEEDER CLUTCH VALVE (07) - HYDRAULICS

1542681C1

VALVE

ASSEMBLY feeder clutch, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

1301687C1

WASHER

RETAINER spring

1шт.

3

107960A1

SPRING

poppet

1шт.

4

1301686C1

CAP

PLUG hex, special

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

107825

NUT,Stamped, 1/2"-20

hex, 1/2 inch NF

1шт.

8

1301632C1

CAP

COVER coil

1шт.

9

1301730C1

VALVE

COIL

1шт.

10

1301648C1

ARMATURE

valve

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

12

1301624C1

BUSHING

poppet

1шт.

13

1301627C2

SLEEVE

poppet

1шт.

14

1301642C1

WASHER

spring retaining

1шт.

15

1301640C1

SPRING

poppet

1шт.

16

110550A1

VALVE POPPET

1шт.

17

1301625C1

ORIFICE

valve

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

20

86625138

PLUG,7/18" - 14

Includes Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

225-20210

NUT,#10-32, Brass

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.
