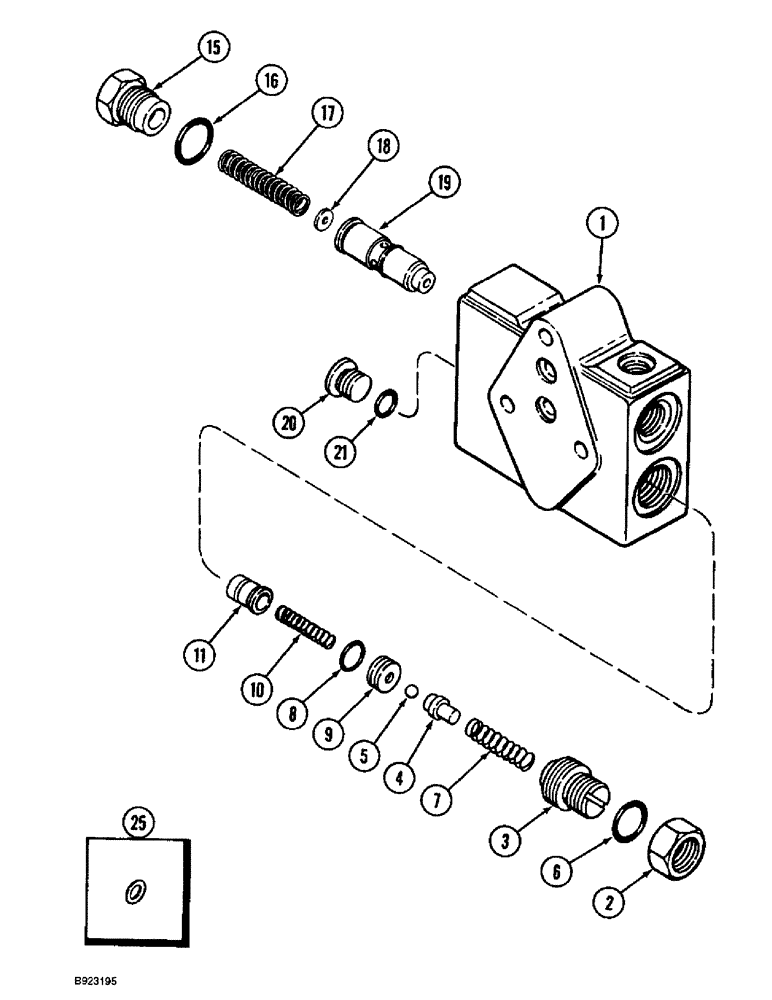

Запчасти Case IH 1688 (8-52) - FLOW DIVIDER VALVE (07) - HYDRAULICS

1542678C1

VALVE

ASSEMBLY flow divider, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

1301674C1

NUT

hex, special, 1 inch

1шт.

3

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG valve

1шт.

4

1301677C1

PIN

GUIDE spring

1шт.

5

211-1008

BALL,1/4" Dia

chrome alloy steel, 1/4 inch, grade 24

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

1301636C1

SPRING

poppet

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

1301654C1

NUT

ORIFICE valve

1шт.

10

1301679C1

SPRING

orifice

1шт.

11

1301678C1

VALVE

POPPET

1шт.

15

1301686C1

CAP

PLUG hex, special

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

107961A1

SPRING

spool

1шт.

18

1301662C1

WASHER

RETAINER spring

1шт.

19

107975A1

SPOOL

valve

1шт.

20

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 21

1шт.

530575R91

SHIM KIT

KIT relief valve, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM relief valve, 0.005 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM relief valve, 0.007 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM relief valve, 0.020 inch

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM relief valve, 0.042 inch

1шт.

26

105945A1

PORT

DISC field tracker, if used, not shown

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
